Quick Details
-
Brand Name:
-
OCEANA
-
Voltage:
-
380-450v
-
Power:
-
55KW
-
Dimension(L*W*H):
-
4000x2500x3000
-
Weight:
-
8000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Feeding method:
-
360°Rotary concrete mixture feeding conveyor
-
Motor Power:
-
VF 55 KW-118KW
-
Vibrator Speed:
-
0-4200 r/min (Variable Control)
-
Output 8 hrs/day of Twin Position:
-
12-60 pipes
-
Technology:
-
Vertical Vibration
-
Product Range:
-
Jacking pipe,Box culvert,the lined PVCorHDPE cement pipe, Manhole
-
Product name:
-

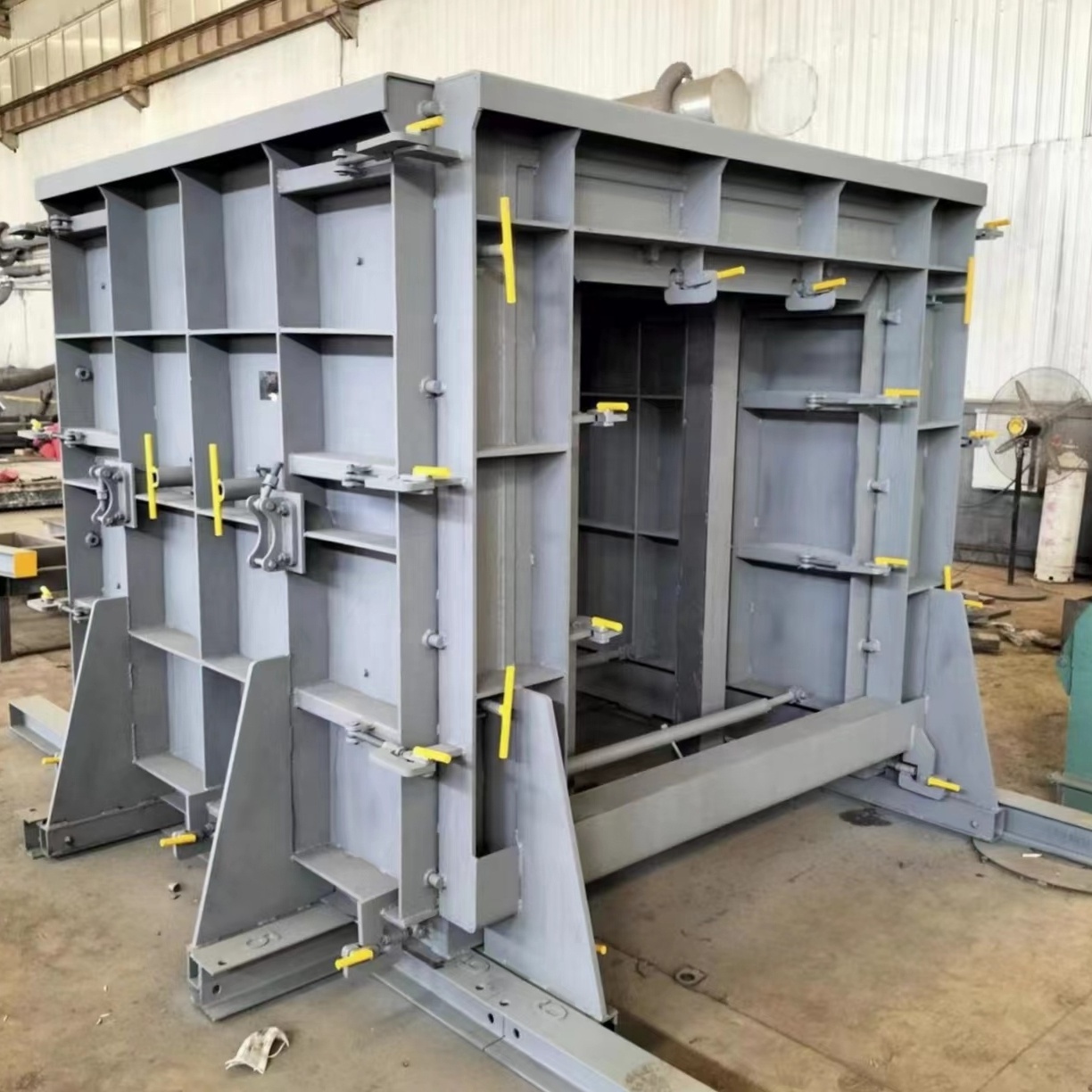

Precast Concrete Box Culvert Mould Prices
-
Certification:
-
3C,CE,USO
-
Pipeline materials:
-
CONCRETE
Quick Details
-
Pipe Material:
-
CONCRETE
-
Production Capacity:
-
80-100 pipes per day
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
OCEANA
-
Voltage:
-
380-450v
-
Power:
-
55KW
-
Dimension(L*W*H):
-
4000x2500x3000
-
Weight:
-
8000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Feeding method:
-
360°Rotary concrete mixture feeding conveyor
-
Motor Power:
-
VF 55 KW-118KW
-
Vibrator Speed:
-
0-4200 r/min (Variable Control)
-
Output 8 hrs/day of Twin Position:
-
12-60 pipes
-
Technology:
-
Vertical Vibration
-
Product Range:
-
Jacking pipe,Box culvert,the lined PVCorHDPE cement pipe, Manhole
-
Product name:
-
Precast Concrete Box Culvert Mould Prices
-
Certification:
-
3C,CE,USO
-
Pipeline materials:
-
CONCRETE
Concrete box culvert pipe machine for diameter300-3000mm,length2-3meter cement culvert pipe
Brief Introduction:
Presently, Vertical Vibration Casting pipe making Machine is one of the most advanced Concrete pipes making technology in the world , which integrate the technology of Mechanical, electric, Hydraulic, and the Automatics.
This machine is easy to operate, much higher efficiency, and full-automatic. It can be used to produce the concrete pipe from DN600-3600mm, length 2-3 meter, and range from reinforced
Concrete pipe, Steel Jacking pipes, Box culverts, and the lined PVC or HDPE cement pipes.
Vertical Vibration Casting pipe making Machine Working Principle:
The most important part of the whole machine is the Vibrating Rod in the center of inner pipe mould; the vibrator will produce high frequency e xciting force while rotate at the fast speed, the exciting force will be passed through the inner mould, to the vibrating spring, and then to the outer Mould, the concrete will become solid and density with the function of the vibration force. Then form the pipe.
Vertical Vibration Casting pipe making Machine Features:
1. Adopting the High Frequency Inner Vibrating, the concrete will be easier and more complete to become solid and density, The concrete pipe will be better in structure and stable quality.
2. Using the half-dry cast concrete, after the pipe finished, the inner mould and
Outer mould will be released instantly, each diameter pipe just need one set of moulds, which will save a lot of moulds money investment, also save a lot of time for workers assembling and disassembling the moulds, also improve the production efficiency. After releasing the moulds, the pipe could be curing by itself with the cement heat hydration, no need the steam curing, lower the steam curing cost;
3. Wide range of production, this machine is capable to make not only the RCC pipe, F-joint pipe, Steel jacking pipe, but also the culverts, manholes, and so on.
4. All of our electric motors, and inverters are the variable frequency speed control, the exciting forced are also variable control, with perfect performance, and higher efficiency , for the two stations of machine is capable to make 100m per 8 hours day for diameter over 800mm.
If you are interested in this concrete pipe plant, don’t hesitate to contact with us.
Item |
XZ1500 |
XZ2400 |
XZ3000 |
Pipe Diameter |
300-1500mm |
800-2400mm |
1350-3000mm |
Pipe Length |
2-3 m |
2-3 m |
2-3 m |
Position |
Single/Twin |
Single/Twin |
Single/Twin |
Feeding method |
360 ° Rotary concrete mixture feeding conveyor |
||
Motor Power |
VF 55 KW |
VF-70 KW |
VF-118 KW |
Vibrator Speed |
0-4200 r/min (Variable Control) |
||
Output 8 hrs/day of Twin Position |
24-60 pipes |
16-40 pipes |
12-30 pipes |
