Quick Details
-
Product Name:
-
Digital Multimeter
-
Power:
-
1.5V (AAA) X 3
-
Light:
-
4000Lux/40000Lux+5.0%
-
Sound level:
-
40 ~ 100dB+5dB
-
Duty cycle:
-
0.1% ~ 99.9%+3.0%
-
Frequency:
-
10/100/1k/10k/100kHz+2.0%
-
Capacitance:
-
50n/500n/5μ/50μ/200μF+3.0%
-
Color:
-
Dark Green+ black
-
Weight:
-
Approx. 400g (including battery)
-
Size:
-
195 X 92 X 55mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MASTECH
-
Model Number:
-
MS8229
-
Product Name:
-
Digital Multimeter
-
Power:
-
1.5V (AAA) X 3
-
Light:
-
4000Lux/40000Lux+5.0%
-
Sound level:
-
40 ~ 100dB+5dB
-
Duty cycle:
-
0.1% ~ 99.9%+3.0%
-
Frequency:
-
10/100/1k/10k/100kHz+2.0%
-
Capacitance:
-
50n/500n/5μ/50μ/200μF+3.0%
-
Color:
-
Dark Green+ black
-
Weight:
-
Approx. 400g (including battery)
-
Size:
-
195 X 92 X 55mm
Product Description

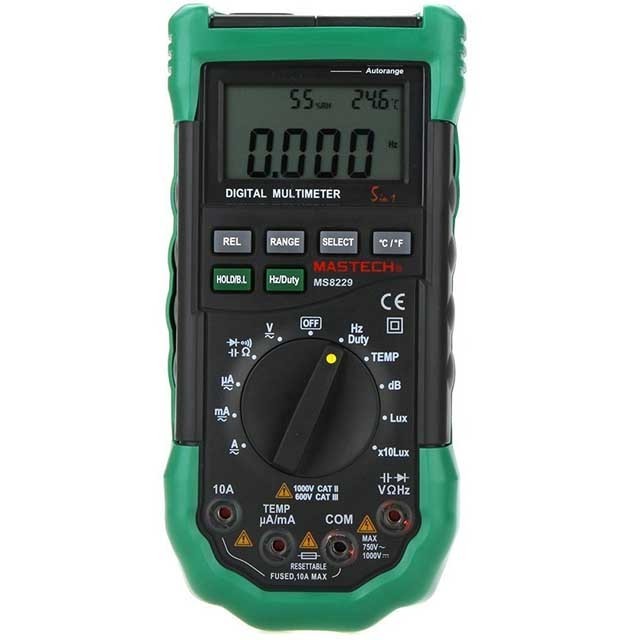

MASTECH MS8229 5 in 1 Auto Range Digital Multimeter & Temperature Humidity Light Lux Sound Level Meter Tester with Back Light
* 【
Multifunction
】 The MS8229 multimeter measures AC/DC voltage and current, resistance, capacitance, frequency, temperature, humidity, duty cycle, noise and brightness. It is a 5-in-1 digital multi-function tester.
* 【 Simple and practical 】 The multimeter is designed with a rear bracket and side slots for easy one-handed operation or placing the meter in a pocket. Double-sided slot design, test leads can be fixed in the slot for easy measurement, or hidden in the slot to prevent injury, size: 19.5 * 9.2 * 5.5cm, weight: about 560 grams, easy to use & carry.
* 【 Clear to Read 】 The maximum display number of the display is 3999, the word height is 14mm, the reading is accurate, and the large liquid crystal display is provided. The liquid crystal display is backlit, the reading is clear, the use is convenient, and the data is read in the dark. Overload protection and low battery indication.
* 【 High quality 】 The Lux sound-rated multimeter is a double-injection housing that protects against crash damage and more features, including transistor hFE testing, diode testing, continuity testing, auto ranging, data retention, and automatic power down.
* 【 Wide Application 】 This digital multimeter has a very strong applicability for professional, workshop, school, hobby and home use. The meter should be recalibrated at a temperature of 18 ° C to 28 ° C and a relative humidity of less than 75%.
* 【 Simple and practical 】 The multimeter is designed with a rear bracket and side slots for easy one-handed operation or placing the meter in a pocket. Double-sided slot design, test leads can be fixed in the slot for easy measurement, or hidden in the slot to prevent injury, size: 19.5 * 9.2 * 5.5cm, weight: about 560 grams, easy to use & carry.
* 【 Clear to Read 】 The maximum display number of the display is 3999, the word height is 14mm, the reading is accurate, and the large liquid crystal display is provided. The liquid crystal display is backlit, the reading is clear, the use is convenient, and the data is read in the dark. Overload protection and low battery indication.
* 【 High quality 】 The Lux sound-rated multimeter is a double-injection housing that protects against crash damage and more features, including transistor hFE testing, diode testing, continuity testing, auto ranging, data retention, and automatic power down.
* 【 Wide Application 】 This digital multimeter has a very strong applicability for professional, workshop, school, hobby and home use. The meter should be recalibrated at a temperature of 18 ° C to 28 ° C and a relative humidity of less than 75%.
Specifications:
DCV: 400m/4/40/400/1000V ± 0.7%+2
ACV: 400m/4/40/400V ±0.8%+3; 750V ±1%+3
DCA: 400μ/4000u/40m/400m ±1.2%+3 4/10A ±2.0%+10
ACA: 400μ/4000u/40m/400m ±1.5 %+5 4/10A ± 3.0%+10
Resistance: 400/4K/40K/400K/4M ±1.2%+5 ; 40M ±2%+5
Capacitance: 40n/400n/4u/40u/100uF ±3.0%+3
Frequency: 10/100/1K/10K/100KHz ± 2.0%+5
Temperature: -20 ~1000 C ±2.0% ; -4F~1832F ±2.0%
RH: 20 to 95% ± 5.0%,
Lux: 4,000/40,000 Lux ±5.0%
Sount dB: 40~100dB ±3.5%
Diode test, Continuity tester: Buzzer if resistance is less than 40 ohms.
Duty cycle: 0.1%-99.9% ± 3.0%.
General Characteristics:
Power Suppply: 3 * 1.5v AAA (not included)
Dimension: 195 * 92 * 55mm
Product Weight: 390g
Package Size: 21 * 12.5 * 6cm / 8.3 * 5 * 2.5in
Package Weight: 590g / 1.3lb
DCV: 400m/4/40/400/1000V ± 0.7%+2
ACV: 400m/4/40/400V ±0.8%+3; 750V ±1%+3
DCA: 400μ/4000u/40m/400m ±1.2%+3 4/10A ±2.0%+10
ACA: 400μ/4000u/40m/400m ±1.5 %+5 4/10A ± 3.0%+10
Resistance: 400/4K/40K/400K/4M ±1.2%+5 ; 40M ±2%+5
Capacitance: 40n/400n/4u/40u/100uF ±3.0%+3
Frequency: 10/100/1K/10K/100KHz ± 2.0%+5
Temperature: -20 ~1000 C ±2.0% ; -4F~1832F ±2.0%
RH: 20 to 95% ± 5.0%,
Lux: 4,000/40,000 Lux ±5.0%
Sount dB: 40~100dB ±3.5%
Diode test, Continuity tester: Buzzer if resistance is less than 40 ohms.
Duty cycle: 0.1%-99.9% ± 3.0%.
General Characteristics:
Power Suppply: 3 * 1.5v AAA (not included)
Dimension: 195 * 92 * 55mm
Product Weight: 390g
Package Size: 21 * 12.5 * 6cm / 8.3 * 5 * 2.5in
Package Weight: 590g / 1.3lb
Specification
|
Model Number
|
MS8229
|
|
Measuring Current Range
|
10A
|
|
Measuring Voltage Range
|
200mV/2V/20V/200V/1000V
|
|
Measuring Resistance Range
|
200 -200M
|
|
Measuring Capacitance Range
|
20nF-200uF
|
|
Measuring Inductance Range
|
1000V/1000V
|
|
Operating Temperature
|
0-50
|
|
Dimensions
|
19.5 X 9.2 X 5.5cm
|
|
Product Name
|
Digital Multimeter
|
|
Power
|
1.5V (AAA) X 3
|
|
Light
|
4000Lux/40000Lux+5.0%
|
|
Sound level
|
40 ~ 100dB+5dB
|
|
Duty cycle
|
0.1% ~ 99.9%+3.0%
|
|
Frequency
|
10/100/1k/10k/100kHz+2.0%
|
|
Capacitance
|
50n/500n/5μ/50μ/200μF+3.0%
|
|
Color
|
Dark Green+ black
|
|
Weight
|
Approx. 400g (including battery)
|
|
Size
|
195 X 92 X 55mm
|
