Sealing material: n itrile rubber(chemitum), silicone, fluorine rubber, usually use silicon
rubber seal Filter interface: the threaded, clamp(hoop), GB, HG, DIN, ANSI
Filtration accuracy: 1μm - 100 μm
Body material: SS304/SS 316
- Product Details
- {{item.text}}
Quick Details
-
Material:
-
Carton or OEM
-
Weight:
-
150-1500
-
Size:
-
10-40"
-
Weight (KG):
-
10 kg
-
Product name:
-
cartridge filter housings
-
Application:
-
Filtration
-
Type:
-
Pure Water Treatment System
-
Usage:
-
Pure Water Process
-
Capacity:
-
1-65m3/hr
-
MOQ:
-
1 Set
-
Raw material:
-
Stainless Steel Boards
-
Function:
-
Producing Fresh Water
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Video technical support
Quick Details
-
Core Components:
-
sanitary filter housing
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Dagyee
-
Material:
-
Carton or OEM
-
Weight:
-
150-1500
-
Size:
-
10-40"
-
Weight (KG):
-
10 kg
-
Product name:
-
cartridge filter housings
-
Application:
-
Filtration
-
Type:
-
Pure Water Treatment System
-
Usage:
-
Pure Water Process
-
Capacity:
-
1-65m3/hr
-
MOQ:
-
1 Set
-
Raw material:
-
Stainless Steel Boards
-
Function:
-
Producing Fresh Water
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Video technical support
Recommend Products
Products Description

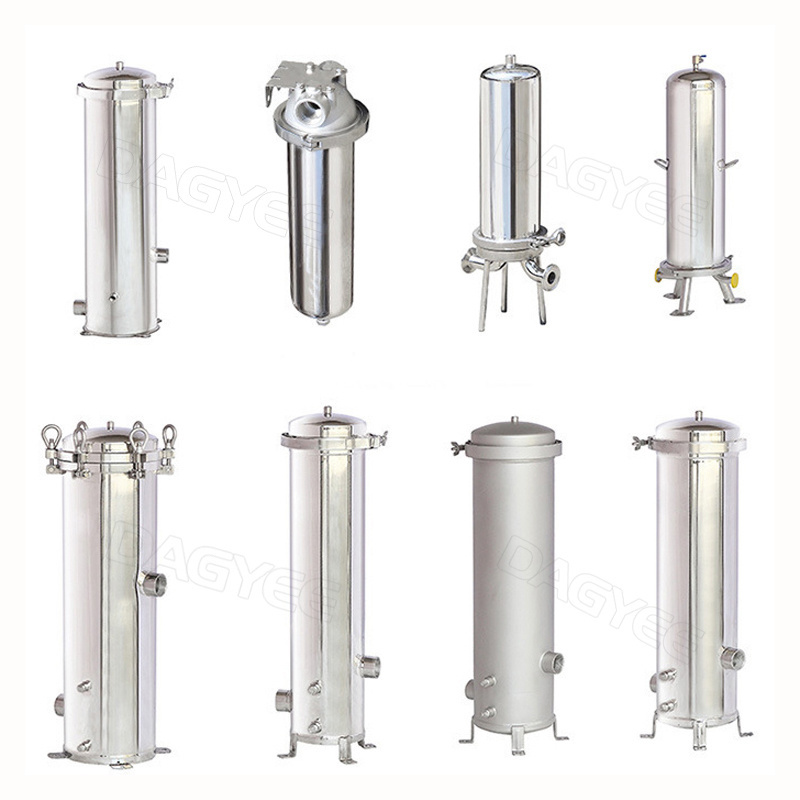

What Is Cartridge Filter Housing?
The SS filter housing can be used for filtration of liquid, gas and 0.1um above particles and bacteria, with high removal rating and flow rate.
It possess properties of lower absorption, no medium shedding, no leakage, acid and alkali Resistance, and corrosion resistance.
Technical filter housing
Seal type:
O-rings and flat gasket
Sealing material: n itrile rubber(chemitum), silicone, fluorine rubber, usually use silicon
rubber seal Filter interface: the threaded, clamp(hoop), GB, HG, DIN, ANSI
Filtration accuracy: 1μm - 100 μm
Body material: SS304/SS 316
Sealing material: n itrile rubber(chemitum), silicone, fluorine rubber, usually use silicon
rubber seal Filter interface: the threaded, clamp(hoop), GB, HG, DIN, ANSI
Filtration accuracy: 1μm - 100 μm
Body material: SS304/SS 316
Optional Parts
|
Item
|
Size
|
Available
|
Application
|
|
DJ-DOE
|
10''/20''/30''/40''
|
√
|
Pharmaceutical industry: pre-filtration of various antibiotics.
|
|
|
|
|
Oil industry: oilfield water injection filtration.
|
|
DJ-222
|
10''/20''/30''/40''
|
√
|
Food and beverage industry: filtration of alcohol, mineral water, drinking water.
|
|
|
|
|
Electronics industry: high purity water pre-filtration.
|
|
DJ-226
|
10''/20''/30''/40''
|
√
|
Chemical industry: filtration of various organic solvents, acids and alkali.
|
|
|
|
|
|
Technical Paramenters
Filtergehäuse Edelstahl Single filter Cartridges housings
|
Model
|
Max. Flow Rate
(m3 /h) |
Max. Operating Conditions (bar/°C)
|
Filter specifications
|
Inlet/Outlet
|
Height
mm |
Max. Cartridge Diameter mm
|
|
DYG-1-10''
|
0.5 M3/H
|
6/120
|
Ø65*250
|
1/2''
|
380
|
Ø89
|
|
DYG-1-20''
|
1 M3/H
|
6/120
|
Ø65*500
|
3/4''
|
630
|
Ø89
|
|
DYG-1-30''
|
1.5 M3/H
|
6/120
|
Ø65*750
|
1''
|
880
|
Ø89
|
|
DYG-1-40''
|
2 M3/H
|
6/120
|
Ø65*1000
|
1''
|
1130
|
Ø89
|
Single microporous filter housings
|
Model
|
Max. Flow Rate (m3 /h)
|
Max. Operating Conditions (bar/°C)
|
Filter specifications
|
Inlet/Outlet-Quick Connector
|
Height mm
|
Max. Cartridge Outside Diameter
|
|
DYG-C1-10''
|
0.5 M3/H
|
6/120
|
Ø68*250
|
1 1/4''
|
608
|
Ø102
|
|
DYG-C1-20''
|
1 M3/H
|
6/120
|
Ø68*500
|
1 1/4''
|
850
|
Ø102
|
|
DYG-C1-30''
|
1.5 M3/H
|
6/120
|
Ø68*750
|
1 1/4''
|
1100
|
Ø102
|
|
DYG-C1-40''
|
2 M3/H
|
6/120
|
Ø68*1000
|
1 1/4''
|
1350
|
Ø102
|
5 Cartridges filter Housings
|
Model
|
Max. Flow Rate (m3 /h)
|
Max. Operating Conditions (bar/°C)
|
Filter specifications
|
Inlet/Outlet
|
Height mm
|
Max. Cartridge Outside Diameter
|
|
DYG-5-10''
|
2.5 M3/H
|
6/150
|
Ø65*250
|
3/4‘’
|
550
|
Ø219
|
|
DYG-5-20''
|
5 M3/H
|
6/150
|
Ø65*500
|
1‘’
|
850
|
Ø219
|
|
DYG-5-30''
|
7.5 M3/H
|
6/150
|
Ø65*750
|
1 1/2''
|
1100
|
Ø219
|
|
DYG-5-40''
|
10 M3/H
|
6/150
|
Ø65*1000
|
2‘’
|
1390
|
Ø219
|
5 Cartridges filter Housings with flange
|
Model
|
Max. Flow Rate (m3 /h)
|
Max. Operating Conditions (bar/°C)
|
Filter specifications
|
Inlet/Outlet
|
Height mm
|
Max. Cartridge Outside Diameter
|
|
DYG-5F-10''
|
2.5 M3/H
|
0-1.0MPa
|
Ø65*250
|
3/4‘’
|
550
|
Ø219
|
|
DYG-5F-20''
|
5 M3/H
|
0-1.0MPa
|
Ø65*500
|
1‘’
|
850
|
Ø219
|
|
DYG-5F-30''
|
7.5 M3/H
|
0-1.0MPa
|
Ø65*750
|
1 1/2''
|
1100
|
Ø219
|
|
DYG-5F-40''
|
10 M3/H
|
0-1.0MPa
|
Ø65*1000
|
2‘’
|
1390
|
Ø219
|
Single bag filter housings
|
Model
|
Max. Flow Rate (m3 /h)
|
Max. Operating Conditions (bar/°C)
|
Filter specifications
|
Inlet/Outlet
|
Height mm
|
Max. Cartridge Outside Diameter
|
|
DYG-1-1S
|
18M3/H
|
12/150
|
Ø180*410
|
1 1/2'' flange
|
1040
|
Ø219
|
|
DYG-1-2S
|
36 M3/H
|
12/150
|
Ø180*810
|
2'' flange
|
1300
|
Ø219
|
|
DYG-1-4S
|
10 M3/H
|
12/150
|
Ø105*380
|
1 1/2'' BSP female
|
850
|
Ø133
|
|
DYG-1K-1S
|
18 M3/H
|
12/150
|
Ø180*410
|
1 1/2''flange
|
1010
|
Ø219
|
Multi Bag Filter Housings
|
Model
|
Max. Flow Rate (m3 /h)
|
Max. Operating Conditions (bar/°C)
|
Filter specifications
|
Inlet/Outlet
|
Height mm
|
Max. Cartridge Outside Diameter
|
|
DYG-2D-2S
|
70 M3/H
|
12/150
|
Ø180*810
|
2''
|
1600
|
Ø420
|
|
DYG-3D-2S
|
100 M3/H
|
12/150
|
Ø180*810
|
3''
|
1800
|
Ø506
|
|
DYG-4D-2S
|
130 M3/H
|
12/150
|
Ø180*810
|
4''
|
1800
|
Ø506
|
|
DYG-6D-2S
|
200 M3/H
|
12/150
|
Ø180*810
|
4''
|
2100
|
Ø650
|
|
DYG-8D-2S
|
250 M3/H
|
12/150
|
Ø180*810
|
5''
|
2100
|
Ø710
|
|
DYG-12D-2S
|
400M3/H
|
12/150
|
Ø180*810
|
6''
|
2100
|
Ø910
|
Application
Certifications
Product packaging
|
Please Contact Us To Calculate Shipping Costs
|
|
|
|
|||
|
CBM of Goods
|
Shipping Service
|
Our Partner
|
Other Options
|
|||
|
<1 cbm
|
Express Service
|
DHLFedex
UPS TNT |
Customer's partners
|
|||
|
>1 cbm
|
Ocean Shipping
|
> Listed shipping company
|
Customer's forwarder
|
|||
FAQ
Q: Are you manufacturer?
A:Yes
Q: What products you provide?
A: Various kinds of filter press, bag filter housing, cartridge filter housing, self cleaning filter, basket filters, filter bag, filter cartridges, filter plate, filter cloth, etc.
Q: How to select the type that needed?
A: When you contact us, we will ask some basic questions to help you select the product type. such as, what is the liquid that you want to filter, flow rate, solid content, etc.
Q: What is the delivery time?
A: It will depends on the order quantity,sometimes when you put order also will influence on the delivery time, once you order from us, we will arrange delivery the cargo as soon as possible.
Q: What is the MOQ？
A: One set
