Quick Details
-
Warranty:
-
12 Months
-
Brand Name:
-
YINJIA
-
Model Number:
-
YS200C
-
Place of Origin:
-
Fujian, China
-
Horsepower:
-
0.75HP
-
Outlet Size:
-
2"*2"
-
Power:
-
0.55KW
-
Usage:
-
Clean Water
-
Type:
-
Horizontal
-
Impeller:
-
Brass/Cast Iron
-
Motor:
-
100% Copper Wire
-
Pump body:
-
Cast Iron HT200
-
MOQ:
-
100 PCS
-
Standard or Nonstandard:
-
Standanrd
-
Color:
-
Customized Color
-
OEM:
-
Availiable
Quick Details
-
Application:
-
Commercial Buildings, Drinking water treatment, Family Homes, Irrigation and Agriculture, Machining, temperature control, Washing and Cleaning, Water Distribution
-
Pressure:
-
Low Pressure
-
Voltage:
-
220V/50HZ
-
Warranty:
-
12 Months
-
Brand Name:
-
YINJIA
-
Model Number:
-
YS200C
-
Place of Origin:
-
Fujian, China
-
Horsepower:
-
0.75HP
-
Outlet Size:
-
2"*2"
-
Power:
-
0.55KW
-
Usage:
-
Clean Water
-
Type:
-
Horizontal
-
Impeller:
-
Brass/Cast Iron
-
Motor:
-
100% Copper Wire
-
Pump body:
-
Cast Iron HT200
-
MOQ:
-
100 PCS
-
Standard or Nonstandard:
-
Standanrd
-
Color:
-
Customized Color
-
OEM:
-
Availiable
|

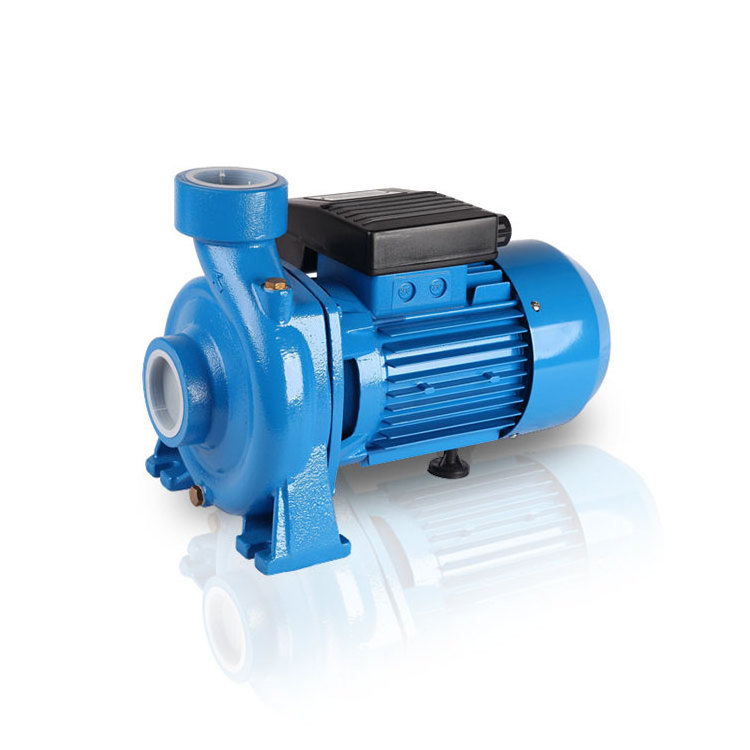

APPLICATION
-Centrifugal single impeller low head water pumps for flow irrigation systems with high flow rates.
-Suitable to pump clean water or non-aggressive liquids charged with small solid impurities.
-To be used in flow irrigation systems in gardening and agriculture and in industrial fittings
.
|
|
|
|
|
||||
|
OPERATING LIMITS
-Total suction lift up to 6-8mt. with foot valve
-Max. operating pressure: 8 bar. -Max. ambient temperature: +40℃ -Max. liquid temperature: +90℃ -Max. altitude: +1000 mt. |
|
|
MOTOR
-Insulation class:B
-Protection: IP44 -Speed or rotation: 2850rpm -Continuous duty: S1 |
|
||||
|
DESIGN FEATURES
-
Pump body/motor bracket: cast iron
-Impeller: cast iron
-Bearing:C&U
-100% copper winding -Built-in thermal protector for single phase motor -Motor shaft: AISI 304 welded shaft -Mechanical seal: Carbon/Ceramic/NBR/SUS304 |
|
|
SPECIAL FEATURES ON REQUEST
-Anti-rust treatment for casting
-AISI 1045 motor shaft -Carbon/SiC/V mechanical seal -Other voltage and frequnecy -Insulation class: F |
|
||||
Performance
FAQ
Q
: Are you a factory or trading company?
A
: We are a professional surface water pump manufacturer since 1990, located in Fuan, Fujian, China.
Q
: Do you provide OEM/ODM service?
A
: Yes, we are premium OEM/ODM manufacturer which assessed by independent third parties.
Q
: What is the feature of your products ?
A
: Our products have 3 obviously features: quite, powerful, heavy duty.
Q
: What is your MOQ ?
A
: 100 pcs per model for factory brand and package.
300 pcs per model for OEM brand and package.
Q
: How do you control the quality ?
A
: All production process strict to follow ISO9001 system, QC team check the quality during the production and do the test before each shipment.
Q
: What is your delivery time?
A
: 15 days for sample order, 30 days for container order. ( Busy season may need more days )
