Quick Details
-
Model Number:
-
dxz limit switch
-
Protection Level:
-
IP65
-
Operating Temperature:
-
-25'c~+60'C
-
Max. Current:
-
10A
-
Brand:
-
WTAU
-
Model:
-
DXZ
-
Work Condition:
-
-40 ~ +55℃
-
Humidity:
-
≤90%
-
Ratio:
-
1/13;1/17;1/46;1/60;1/78;1/210;1/274;1/960
-
Application:
-
Hoist Protection
-
Product name:
-
Limit Switch / Safety Limit Switch EN60947-5-1 Standard
-
Color:
-
Yellow
-
Type:
-
Adjustable
Quick Details
-
Max. Voltage:
-
AC 380V
-
Place of Origin:
-
Hebei, China, China
-
Brand Name:
-
WTAU
-
Model Number:
-
dxz limit switch
-
Protection Level:
-
IP65
-
Operating Temperature:
-
-25'c~+60'C
-
Max. Current:
-
10A
-
Brand:
-
WTAU
-
Model:
-
DXZ
-
Work Condition:
-
-40 ~ +55℃
-
Humidity:
-
≤90%
-
Ratio:
-
1/13;1/17;1/46;1/60;1/78;1/210;1/274;1/960
-
Application:
-
Hoist Protection
-
Product name:
-
Limit Switch / Safety Limit Switch EN60947-5-1 Standard
-
Color:
-
Yellow
-
Type:
-
Adjustable
Product Description

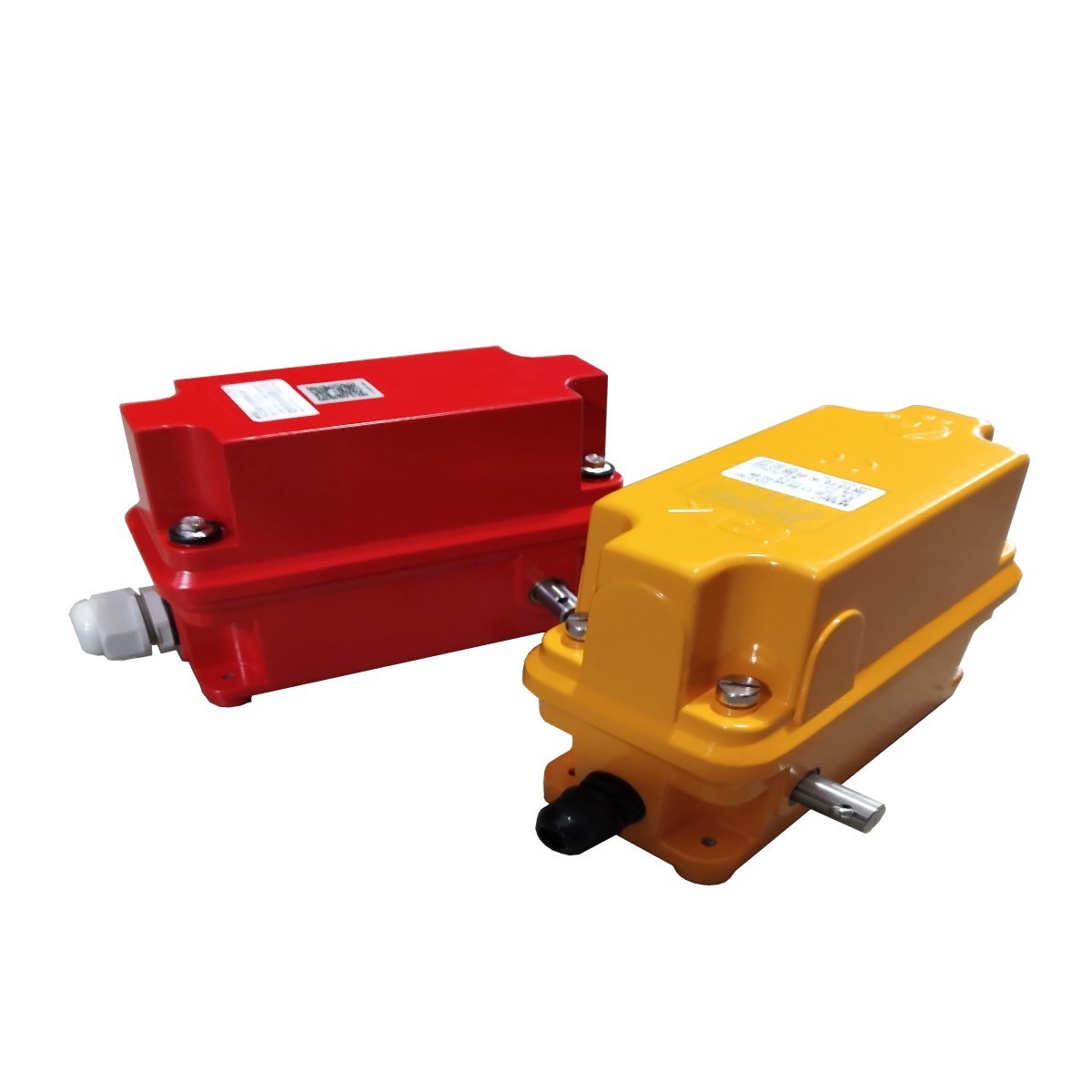

DXZ Multi-function limit switch is widely applied to control and limit trilinear coordinates of space of the lifting, transmission in building, port, mining and other industries, DXZ Multi-functions limit switch has many characteristics, like small volume, many functions, high accuracy , adjustable limit, better compatibility , convenient to install , maintain and adjust.
Detailed Images
Technical Parameters
| DXZ Multi-function limit switch | |
| Transmission ratio | 1:13-1:960 |
| environment temperature | -40℃-+55℃ |
| environment humidity | 95%RH(25℃) No condensation |
| altitude height | ≤250M |
| cam angle | ≤0.05 rad (0.3°) |
| Type of the Electrical contact | AC380V/10A |
| standard value of resistance | 5KΩ |
| degree of linearity | 0.1% |
| Mechanical Angle In Degrees | 360°(continuous) |
| working voltage | DC5-15V |
Installation case
