Quick Details
-
Ink Type:
-
uv ink
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Winscolor
-
Voltage:
-
220V
-
Dimensions(L*W*H):
-
3.3*1.53*1.55m
-
Weight:
-
900 KG
-
Marketing Type:
-
New Product 2023
-
Certification:
-
CE
-
Product name:
-
YC1800HR
-
Ink Characteristics:
-
UV Curing Ink (VOC Free)
-
Printhead Number:
-
2-4 units
-
Key words:
-
hybrid printer
-
Printhead Arrangement:
-
multi colors
-
Printing Size:
-
1800mm
-
RIP software:
-
Photoprint/RIP
-
Working Table:
-
vacuum sucking
Quick Details
-
Print Dimension:
-
1800mm
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Ink Type:
-
uv ink
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Winscolor
-
Voltage:
-
220V
-
Dimensions(L*W*H):
-
3.3*1.53*1.55m
-
Weight:
-
900 KG
-
Marketing Type:
-
New Product 2023
-
Certification:
-
CE
-
Product name:
-
YC1800HR
-
Ink Characteristics:
-
UV Curing Ink (VOC Free)
-
Printhead Number:
-
2-4 units
-
Key words:
-
hybrid printer
-
Printhead Arrangement:
-
multi colors
-
Printing Size:
-
1800mm
-
RIP software:
-
Photoprint/RIP
-
Working Table:
-
vacuum sucking
Product Description
Printhead
EPSON i3200
Printhead 4 units
Print Effect
Color,white,varnish and
3D embossing
effect optional
Printing Areas
Glass/Ceramic/
Decoration/
Advertising&
Sign industry
Product Paramenters

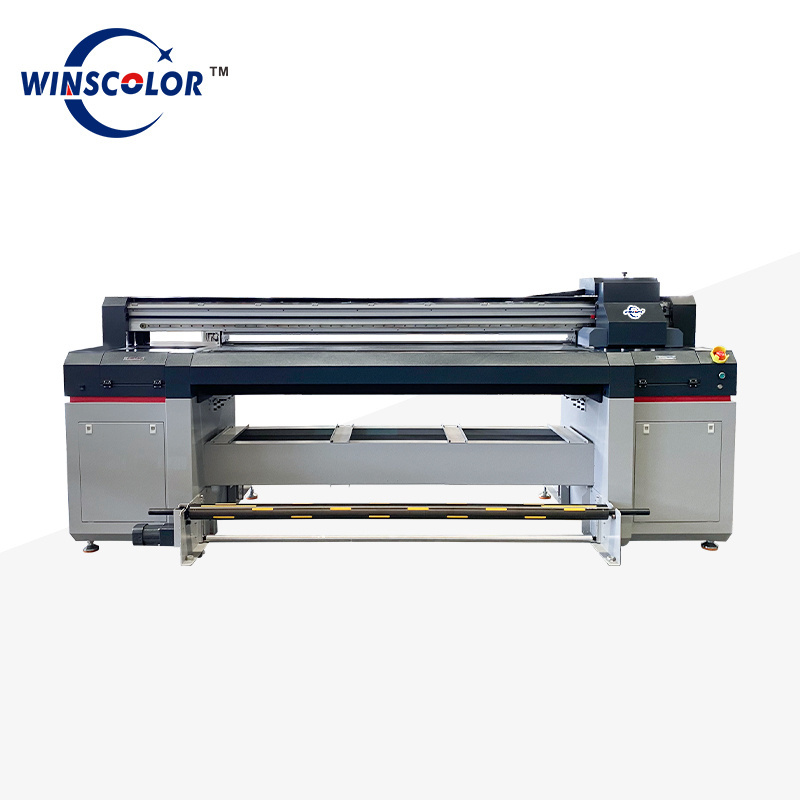

YC1800HR UV Hybrid Printer
①
THK Rail
②
Industrial Printhead
③
Anti-static,
Anti-crash
④
Glue Roll
⑤Universal wheel
|
Specifications
|
|
|
|
|||
|
Product Model
|
YC1800HR
|
|
|
|||
|
Printhead Type
|
EPSON i3200
|
|
|
|||
|
Printhead Number
|
2-4 units
|
|
|
|||
|
Ink Characteristics
|
UV Curing Ink (VOC Free)
|
|
|
|||
|
Lamp
|
UV LED lamp
|
|
|
|||
|
Printhead Arrangement
|
C M Y K W
|
|
|
|||
|
Guide Rail
|
TAIWAN HIWIN
|
|
|
|||
|
Working Table
|
vacuum sucking
|
|
|
|||
|
Printing Width
|
1800mm
|
|
|
|||
|
Media Weight
|
70kg Max
|
|
|
|||
|
Print Interface
|
USB2.0
|
|
|
|||
|
Media Thickness
|
0-20mm
|
|
|
|||
|
Print Resolution & Speed
|
720X600dpi
|
4PASS
|
15-33sqm/h
|
|||
|
|
720X900dpi
|
6PASS
|
10-22sqm/h
|
|||
|
|
720X1200dpi
|
8PASS
|
8-18sqm/h
|
|||
|
RIP Software
|
RIP/Photoprint optional
|
|
|
|||
|
Media
|
backlit, wallpaper, flex banner, glass, acrylic, wood board, PVC
|
|
|
|||
|
Media Handling
|
Automatic Release/Take Up
|
|
|
|||
|
Machine Dimension
|
3.3*1.53*1.55m
|
|
|
|||
|
Weight
|
900kg
|
|
|
|||
|
Safety Certification
|
CE Certificate
|
|
|
|||
|
Image Format
|
TIFF,JPEG,Postscript,EPS,PDF etc.
|
|
|
|||
|
Input Voltage
|
Single Phase 220V±10%(50/60Hz,AC)
|
|
|
|||
|
Working Environment
|
Temperature: 20℃-28℃ Humidity: 40%-70% RH
|
|
|
|||
|
Warranty
|
12 months exclude the consumables related to ink, such as ink filter, damper etc
|
|
|
|||
|
Above specification subject to change without notice beforehand
|
|
|
|
|||
Machine Details
Epson Print Head
Equipped with Japan Epson I3200 print head, 180 nozzles, 6 or 8 channels, providing high-precision printing.
High Mute Drag Chain
Germany imported linear guide rail and Germany mute drag chain,low noise, movement more steady, printing more steady, prolong the machine life.
THK Rail
THK guide rail has low friction resistance, low noise, high precision and fast movement.
High Qulity
Big Steel Roller
Adopt big steel roller to guarantee the materials not wrinkled or off track, realize the quantitative production.
High Qulity Big Steel Roller
Lift Cap Station System
THK guide rail
Universal Wheel
Anti-Static Device
Automatic
Height Measurement
Printing Samples
EPSON Nozzle
Adopt Epson nozzle, the accuracy can reach 2160dpi, the new variable ink drop technology, provide 3/3.5pl ink dot size, can achieve high speed or low resolution cases can also easily achieve high quality picture, to achieve no point printing effect.
CMYK+W+V All three colors at once
The use of gloss oil makes the product more gorgeous gloss and "high gloss" effect, not only makes the surface of the whole picture has a gloss sense, get a more exquisite printing effect, but also can better protect the coating, make the product more durable.
Plastic
Mouse Pad
Glass
Handcraft
ceramic
Wood
Car Sticker
Acrylic
Lamp-box fabric
Advertising Cloth
Ceiling Membrane
Fiber
