The bottom insulation dust-proof wiring port, high protection level is convenient and practical.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
ME8109
-
Protection Level:
-
IP65
-
Operating Temperature:
-
-10℃-+80℃
-
Max. Current:
-
8A
-
Operating ambient temperature:
-
-20°C~70°C
-
Working ambient humidity:
-
<95%RH
-
Contact resistance:
-
≤50mΩ
-
Insulation resistance:
-
≥100mΩ
-
Power frequency withstand voltage:
-
1890VAC/50Hz/60s
-
Vibration resistance:
-
10~55Hz amplitude1.5mm
-
Impact resistance:
-
Max. 10g
-
Operating frequency:
-
Electrical: 30 times/min
-
Mechanical life:
-
About 10 million times
-
Electrical life:
-
≥500,000 times
-
Certification:
-
CCC CE
Quick Details
-
Max. Voltage:
-
380VAC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KLYT
-
Model Number:
-
ME8109
-
Protection Level:
-
IP65
-
Operating Temperature:
-
-10℃-+80℃
-
Max. Current:
-
8A
-
Operating ambient temperature:
-
-20°C~70°C
-
Working ambient humidity:
-
<95%RH
-
Contact resistance:
-
≤50mΩ
-
Insulation resistance:
-
≥100mΩ
-
Power frequency withstand voltage:
-
1890VAC/50Hz/60s
-
Vibration resistance:
-
10~55Hz amplitude1.5mm
-
Impact resistance:
-
Max. 10g
-
Operating frequency:
-
Electrical: 30 times/min
-
Mechanical life:
-
About 10 million times
-
Electrical life:
-
≥500,000 times
-
Certification:
-
CCC CE
Products Description
|

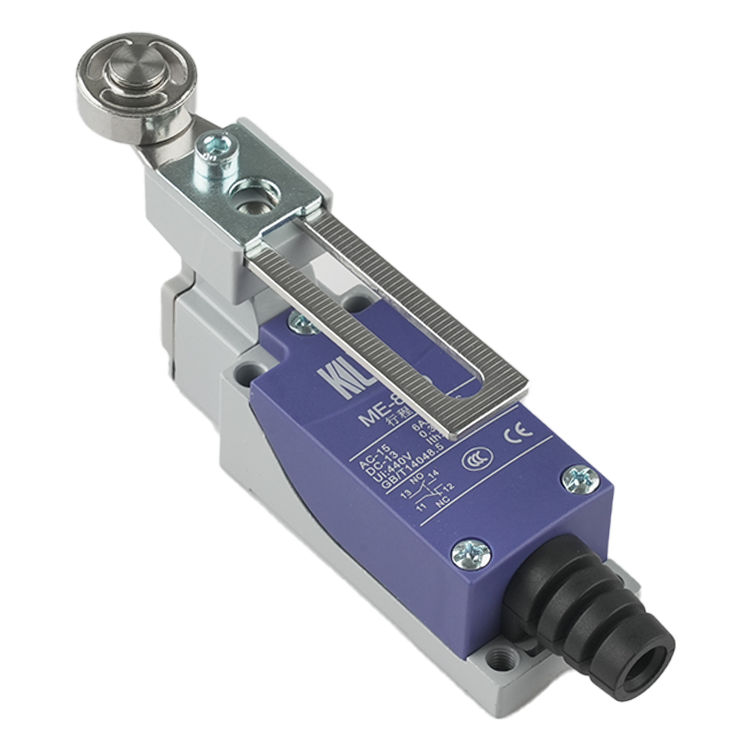

KLYT metal roller adjustable rotating arm ME8109 travel switch
|
|
|
|
|||
|
Brand/Manufacturer
|
KLYT
|
Certification
|
CE,CCC
|
|||
|
Material
|
Metal and intensive plastic
|
Size
|
56mmX21mm
|
|||
|
Place of Origin
|
Guangdong, China
|
Color
|
Grey，Blue
|
|||
|
Protection Level
|
IP65
|
Operating Temperature
|
-10℃ to +80℃
|
|||
|
Max. Voltage
|
380VAC
|
Warranty
|
3 years
|
|||
|
Application
|
Transfer Handling Machinery, Communication,Tools
|
Supply Ability
|
500000 Pieces per Year
|
|||
|
Accessories
|
yes
|
Package
|
6pcs/Box
|
|||
|
Customized service
|
Logo、Outer Packaging 、Pattern
|
|
|
|||
Adjustable
metal roller adjustable rotating arm
Smooth action, stable and reliable performance.
Flexible and convenient, strong and durable structure.
SELF-RESET DESIGN LONG SERVICE LIFE
Smooth operation, 90° adjustable at any position,action structurehigh strength, reliable and stable performance
HIGH MECHANICAL STRENGTH
Mechanical life more than 10 million times,electrical life more than1 million times,high mechanical strength, smooth movement,stableand reliable performance.
Metal Base + W aterproof Silicone Pad
Travel switch, also known as limit switch. Using the collision of the moving parts of the production machinery to make its contact action to realize the switch or break the control circuit to achieve the control purpose.
Insulation and Dust Connector
Insulateed
connection.
Flexible cascade structureHigh level of protection.
