Quick Details
-
Model Number:
-
XZ-8/108
-
Protection Level:
-
IP65
-
Operating Temperature:
-
-20~60 Degree
-
Max. Current:
-
5A
-
Certification:
-
UL TUV CE CCC, UL TUV CE CCC
-
Operating speed:
-
5mm-50cm/s
-
Electrical life:
-
100,000 times above
-
Mechanical life:
-
1,000,000 times above
-
Lever Type:
-
Adjustable roller arm type
-
Housing Material:
-
Zinc metal alloy base
-
Cover Material:
-
ABS plastic
-
Rating Load:
-
5A 250VAC
-
Type:
-
honeywell limit switch
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
XURUI or OEM
-
Model Number:
-
XZ-8/108
-
Protection Level:
-
IP65
-
Operating Temperature:
-
-20~60 Degree
-
Max. Current:
-
5A
-
Certification:
-
UL TUV CE CCC, UL TUV CE CCC
-
Operating speed:
-
5mm-50cm/s
-
Electrical life:
-
100,000 times above
-
Mechanical life:
-
1,000,000 times above
-
Lever Type:
-
Adjustable roller arm type
-
Housing Material:
-
Zinc metal alloy base
-
Cover Material:
-
ABS plastic
-
Rating Load:
-
5A 250VAC
-
Type:
-
honeywell limit switch

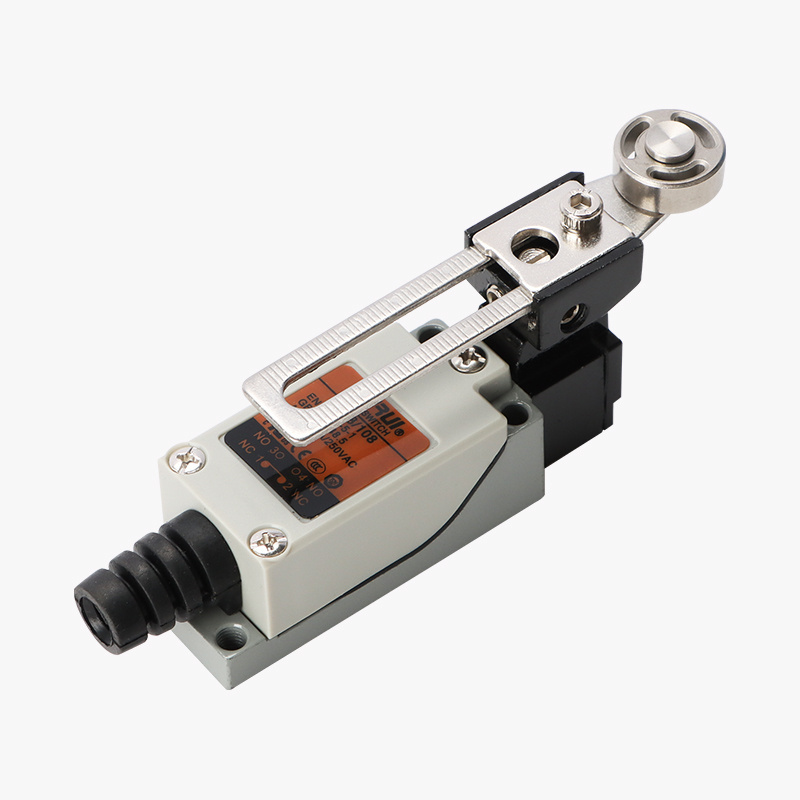

XURUI adjustable roller lever type honeywell limit switch 8108
Features:
Double way switch,double spring inner switch .
Variety of levers.
Strong structure,made of zinc metal alloy and plastics,
Easy to contact lines.
Widely used in Mechanical equipment,automatic machine,instrument,electro motion tool etc.
Technical Specification:
|
Item |
Data |
|
Rating load |
5A/250VAC |
|
Operation speed |
5mm-50cm/s |
|
Operation frequency |
Mechanical 120times/min |
|
Electrical 30 times/min |
|
|
Contact resistance |
≤25mΩ |
|
Insulation resistance |
≥100MΩ |
|
Withration voltage |
Non-connection wire 1000VAC |
|
Every terminal 1500VAC |
|
|
Operating life |
Electrical 100,000 above |
|
Mechanical 1000,000 above |
|
|
Protection degree |
IP65 |
|
Operating temperature |
-25°C-60°C |
|
Operating humidity |
≤85% |
Mounting Holes & Contact Form:
Product Structure:
Dimension Drawing:
Roller Arm type:XZ-8/108
| OF MAX | 800g (7.84N) |
| RF MIN | 60g (0.59N) |
| PT MAX | 30º |
| OT MIN | 60º |
| MD MAX | 15º |
| OP |
90º
|
XZ-8 series full models pictures:
