High capacity M6 screw thread industry probe temperature sensor E K j type thermocouple

High capacity M6 screw thread industry probe temperature sensor E K j type thermocouple

FOB Reference Price: Get Latest Price

≥10 Pieces

US $1.5

≥500 Pieces

US $1.2

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: thermocouple sensor

Product name:: M6 screw thread industry probe temperature sensor E K j type

Type:: K,N,E,T,S/R

Wire diameter:: 0.2-0.5mm

Length:: 320mm,1000mm (customization)

Measuring temperature:: -200~+1800 C

Temperature tolerance:: +/-1.5C

Fixing:: thread/flange/none

Connection:: terminal box/compensation cable/head

MOQ:: 5pcs

Media:: Natural Gas, LPG, NG

Quick Details

Warranty:: 1 year

Place of Origin:: Jiangsu, China

Brand Name:: XR

Model Number:: thermocouple sensor

Product name:: M6 screw thread industry probe temperature sensor E K j type

Type:: K,N,E,T,S/R

Wire diameter:: 0.2-0.5mm

Length:: 320mm,1000mm (customization)

Measuring temperature:: -200~+1800 C

Temperature tolerance:: +/-1.5C

Fixing:: thread/flange/none

Connection:: terminal box/compensation cable/head

MOQ:: 5pcs

Media:: Natural Gas, LPG, NG

Product Description

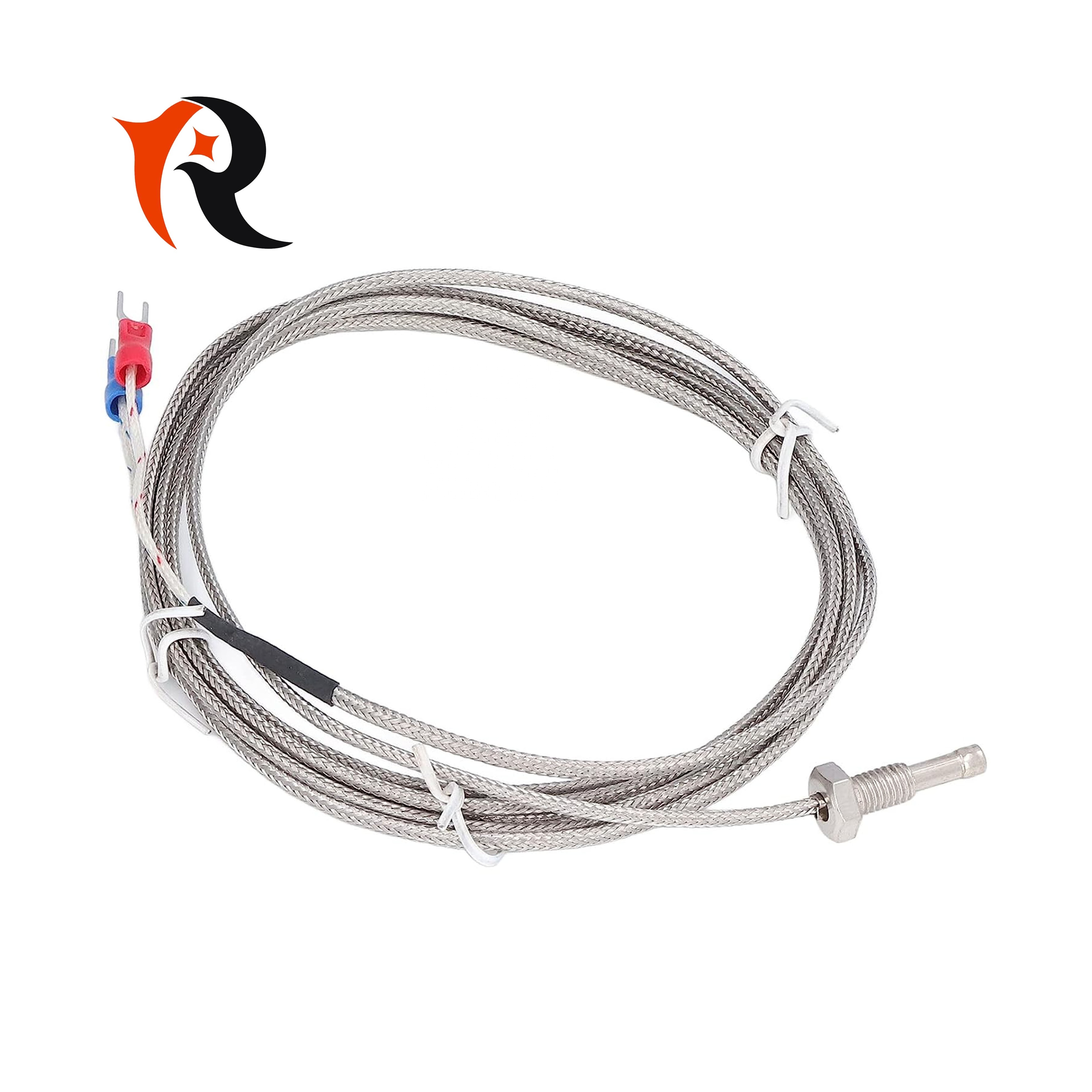

High capacity M6 screw thread industry probe temperature sensor E K j type thermocouple

A thermocouple is a temperature-measuring device consisting of two dissimilar conductors that contact each other at one or more spots. It produces a voltage when the temperature of one of the spots differs from the reference temperature at other parts of the circuit. Thermocouples are a widely used type of temperature sensorfor measurement and control,and can also convert a temperature gradient into electricity. Commercial thermocouples are inexpensive,interchangeable, are supplied with standard connectors, and can measure a wide range of temperatures. In contrast to most other methods of temperature measurement, thermocouples are self powered and require no external form of excitation.

Product Paramenters

Item	Screw thermocouple
Type	K/E
Measuring Temperature	K 0-600C E 0-400C
Screw Material	Iron
Wire Length	500-1000mm (can be customized)
Wire Material	Outside: SS braid extension wire Inside: glass fiber insulation

Measuring Range and Accuracy:

Type	Conductor Material	Code	Accuracy
						ClassⅠ			ClassⅡ
			Type			Accuracy	Temperature range( °C )	Accuracy	Temperature range( °C )
K	NiCr-NiSi	WRN	1.5°C Or ±0.4%\|t\|	-40-1000	±2.5°C or ±0.75%\|t\|	-40-1000
J	Fe-CuNi	WRF		20~700C		-40-750		-40-750
E	NiCr-CuNi	WRE		0~800C		-40-800		-40-800
N	NiCrSi-NiSi	WRM		0~1250C		-40-1100		-40-1200
T	Cu-CuNi	WRC	±0.5°C or ±0.4%\|t\|	-40-350	±1°C or 0.75%\|t\|	-40-350

Product Details

Related Products

Application

Thermocouple as measure temperature sensor, and usually display meter, recording meter and
electronic regulator, at the same time, also can be used as a prefabricated thermocouple temperature
sensing element, it can be directly measured from 0 ℃ ~ 800 ℃ in the process of various production
within the scope of the liquid, steam and gas medium, as well as the temperature of the solid surface.

Thermocouples are widely used in science and industry; applications include temperature measurement for kilns, gas turbine exhaust, diesel engines, and other industrial processes. Thermocouples are also used in homes, offices and businesses as the temperature sensors in thermostats, and also as flame sensors in safety devices for gas-powered major appliances.
