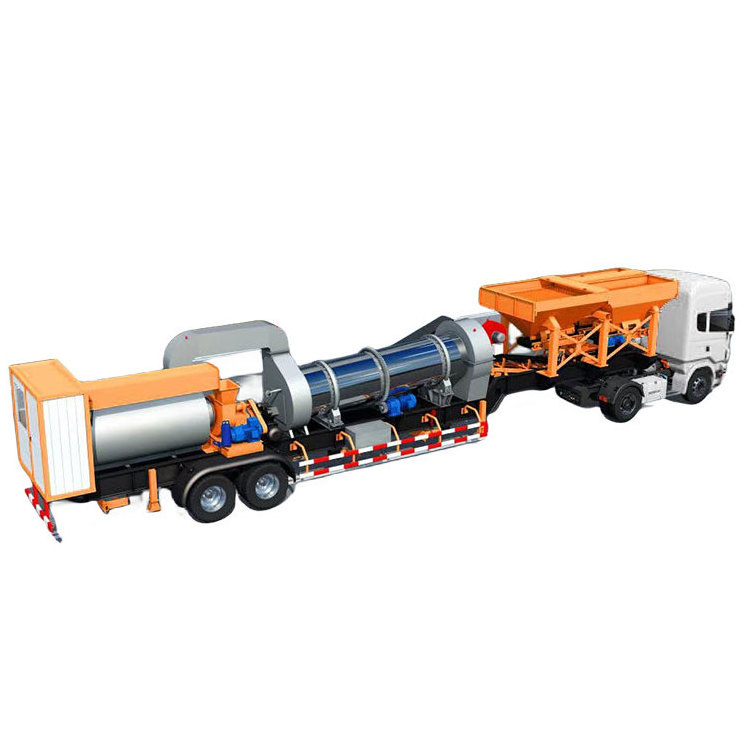

60tph portable drum mix mobile asphalt plant

60tph portable drum mix mobile asphalt plant

FOB Reference Price: Get Latest Price

≥1 Sets

US $75000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight:: 5000 kg

Product name:: Asphalt Mixing Plant

Rated production:: 40t/h

Fuel Consumption:: diesel consumption: 5.5-7.0 kg /ton

Hot Asphalt Temperature:: 130℃-165℃(adjustable)

Air Emissions:: ≤100mg/Nm3

Working Noise:: ≤70db(A)

Operation:: Manual Operation

Installation Power:: 76kw

Electrical Design:: 220V/380V-50Hz(adjustable)

Type:: Continuous Hot Mix

Quick Details

Place of Origin:: Henan, China

Brand Name:: Sinoroader

Dimension(L*W*H):: 30*16*16m

Weight:: 5000 kg

Product name:: Asphalt Mixing Plant

Rated production:: 40t/h

Fuel Consumption:: diesel consumption: 5.5-7.0 kg /ton

Hot Asphalt Temperature:: 130℃-165℃(adjustable)

Air Emissions:: ≤100mg/Nm3

Working Noise:: ≤70db(A)

Operation:: Manual Operation

Installation Power:: 76kw

Electrical Design:: 220V/380V-50Hz(adjustable)

Type:: Continuous Hot Mix

Product Description

Continuous Drum Mix Asphalt Plant is very different with batch asphalt mixing plant. It produce the asphalt mixture in the drum which also dry the aggregate continuously.

Asphalt drum mix plant is one type of asphalt plant that produces hot mix asphalt in a continuous process. Continuous asphalt mixing plant is low on running cost, maintenance and high on production. With strong agitation performance and quick installation, it is suitable for projects such as highways that require mobile work.

Sinoroader offer drum mix asphalt plant for sale in the capacities of 40 tph to 120 tph. These plants are ideal for those contractors who want to go for high volumes of asphalt production without frequently shifting from one place to another. We offer full package to road contractors for complete peace of mind and we want them to concentrate on their core business without worrying about the equipment.

	Cold Aggregate Feed System 1.Modular design, easy to install and transport; 2.The cold aggregate feeder is equipped with frequency conversion speed control, synchronous proportional automatic control and adjustment, safe and reliable; 3.The hopper is equipped with a screen, the two fines hoppers will automatically vibrate when the material blocked, the lack of material will alarm, and the discharge door can be adjusted;
Drying System The repeatedly optimized design of the lifting blade and the stainless steel insulation layer can effectively reduce the heat loss of the drying drum, save fuel consumption and greatly improve the thermal efficiency; Unique purge pipeline, effectively prevent oil circuit blockage.
	Lifting System The elevator plate chain is made of high-strength wear-resistant materials, and the shell liner is made of wear-resistant steel plate, which has a long service life.
Hot Finished Asphalt Storage Silo The elevator plate chain is made of high-strength wear-resistant materials, and the shell liner is made of wear-resistant steel plate, which has a long service life.
	Dust Collection System 1.Utilization of water dust removal system to reduce environmental pollution caused by exhaust emissions; 2.The air door of the induced draft fan is automatically adjusted to ensure the constant negative pressure of the drying drum.
Electrical Control System The electrical control adopts a desktop console, the main components are Siemens brand electrical appliances, with interlocking and secondary protection; the console is equipped with manual control operating devices, main motor current display, finished material
