- Product Details
- {{item.text}}
Quick Details
-
Design Style:
-
Modern
-
Material:
-
All steel,Cement,Ceramic
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
ZHIHUI
-
Model Number:
-
JQGT-2Cc
-
Usage:
-
JQGT-2Cc For Computer Room, Data center, server room
-
Accessories:
-
With Brackets, beams and screws
-
Uniform Load:
-
≥12500 N/㎡
-
Concentrate Load:
-
LB≥662N, N≥2950, KG ≥301kg
-
Color:
-
white, blue, yellow etc.
-
Floor Thickness:
-
40 MM
-
Resistance data:
-
1X10^6Ω-1X10^10Ω
-
Certificate:
-
ISO9001+OHSAS+GB/T28001-2011+ISO14001
-
FFH:
-
10-100 CM, could be negotiable
-
Function:
-
anti-static, raised over the ground
Quick Details
-
Warranty:
-
1 Year
-
Project Solution Capability:
-
total solution for projects, Cross Categories Consolidation, Others
-
Application:
-
Computer room Server Room Computer Room
-
Design Style:
-
Modern
-
Material:
-
All steel,Cement,Ceramic
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
ZHIHUI
-
Model Number:
-
JQGT-2Cc
-
Usage:
-
JQGT-2Cc For Computer Room, Data center, server room
-
Accessories:
-
With Brackets, beams and screws
-
Uniform Load:
-
≥12500 N/㎡
-
Concentrate Load:
-
LB≥662N, N≥2950, KG ≥301kg
-
Color:
-
white, blue, yellow etc.
-
Floor Thickness:
-
40 MM
-
Resistance data:
-
1X10^6Ω-1X10^10Ω
-
Certificate:
-
ISO9001+OHSAS+GB/T28001-2011+ISO14001
-
FFH:
-
10-100 CM, could be negotiable
-
Function:
-
anti-static, raised over the ground
cement infilled steel anti static raised false access floor system
|
Item No.
|
National standard
|
Specification(mm)
|
Concentrated Load
LB N KG
|
Ultimated load
(N)
|
Uniform Load
(N/㎡)
|
|
JQGT-1
|
HDG.600.40.CQ.D
|
600X600X40
|
≥440 ≥1960 ≥220
|
≥5880
|
≥9760
|
|
JQGT-2
|
HDG.600.40.Q.D
|
600X600X40
|
≥662 ≥2950 ≥301
|
≥8850
|
≥12500
|
|
JQGT-3
|
HDG.600.40.B.D
|
600X600X40
|
≥1000 ≥4450 ≥450
|
≥13350
|
≥23000
|
|
JQGT-4
|
HDG.600.40.Z.D
|
600X600X40
|
≥1250 ≥5560 ≥567
|
≥16680
|
≥33000
|
Floor Details

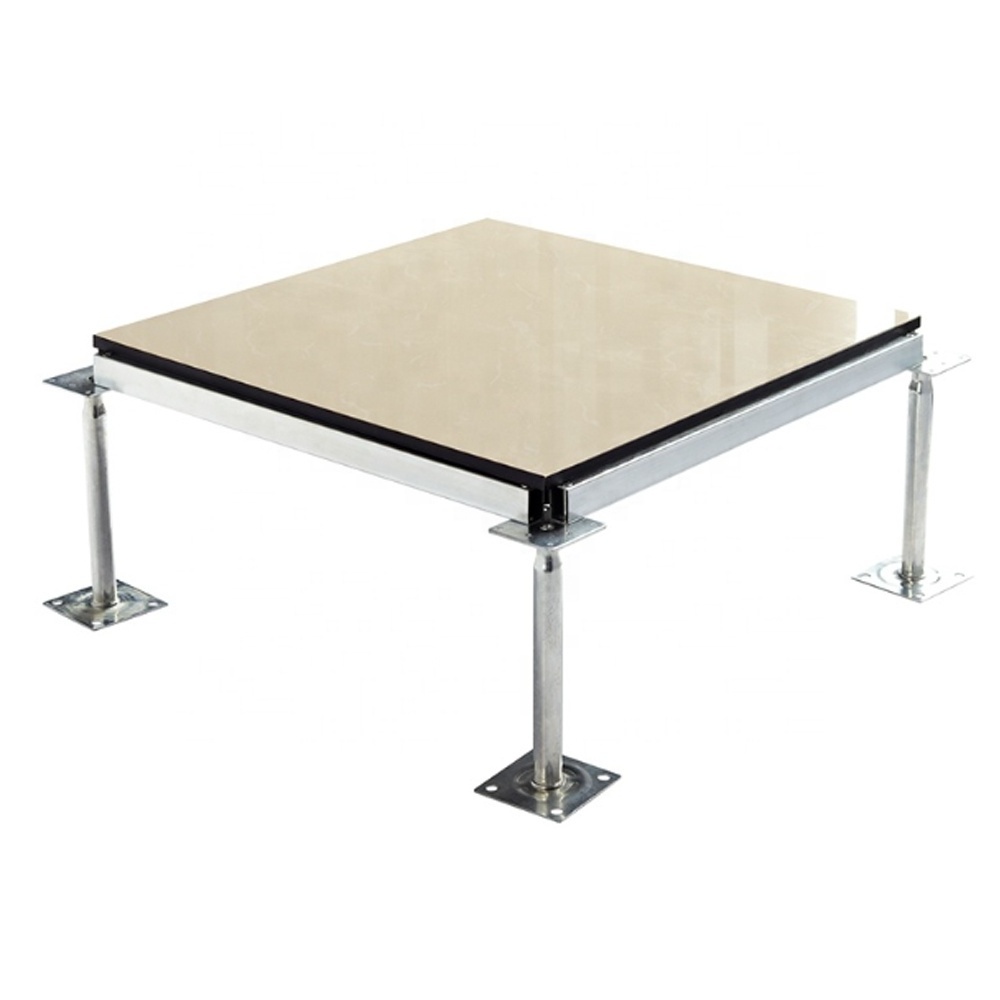

All steel raised access floor with ceramic veneer
Ceramic tile color optional
All steel raised access floor could match with ceramic veneer, PVC veneer, HPL veneer, Granite veneer
Our Company
In 1990，we produced our first piece of anti-static flooring, Xi 'an ZHIHUI Computer Room Equipment Co., Ltd. is a professional manufacturer engaged in designing, researching , production, selling and installing of all kinds of anti-static raised floors, such as anti-static Steel Access Floor for Computer Room, OA Net flooring, Conductive Access Floor for Clean Room, Air-flow Raised Floor, Calcium Sulfate Raised Floor, Wood core Panel and Aluminum Anti-static Access Floor etc.
We own advanced production equipment, mature production process, strong
team of technology research,product development, mass production, sales, installation etc;
Our company strength:
A:Register capital: 67000000 RMB
B:Factory area: cover than 40 acres
C:Production lines: 10 pcs
D:Product categories: over 100 kinds
E:Annual capacity : over 1500000 square meters
Our Certifacate
We has passed ISO9001, ISO14001, OHSAA8001 certification.
we produced in strict accordance with SJ/ T10796-2001 standards, and
conform to CISCA, CE, MOB international standards certification
Our Products application
A. Computer center; Communication center; Data center; Radio and television transmission center; Power control and dispatch center; Microwave communication station; Satellite earth station; Mobile center; The professional computer rooms of program-controlled telephone exchange, editing and control for radio and television.
B. Electronic and optical equipment production workshops; Hospital operating rooms; Anaesthesia rooms; Electronic imaging examination rooms; Other places sensitive to static electricity.
C. Military industry, petrochemical industry and other inflammable and explosive sites.
D. Civic center; Star hotel; The intelligent office and other high-end places
Our Export Market
We own stable quality and beautiful appearance; Exported to Japan, Korea, Singapore, Malaysia, the USA, the Middle East, Europe and other countries and regions; Long - term service in the domestic computer room decoration engineering companies, Integrator, purification engineering companies, real estate developers, won the majority of customers praise.
Our Production Line
We have over ten production lines for flooring, such as Calcium sulphate floor production line; all steel alloy floor production line; aluminum alloy floor production line; net floor production line etc.
We produced in strict accordance with SJ/ T10796-2001 standards.
FAQ
What are your terms of packing?
Generally, we pack 2 pcs floor in a paper crate, then packed 60 pcs into a wooden pallet for shipping container.
What is your terms of payment?
30% deposit should be paid before mass production, 70% balance should be paid before shipment
What are your terms of delivery?
EXW,
FOB, CIF, CFR for Shanghai port, Tianjin port, and other port in China
How about your delivery time?
Products in stock: the normal items, it would take 1-2 days after receiving your deposit.
Products in stock: the normal items, it would take 1-2 days after receiving your deposit.
Custom products: it deponds on the quantity you need, generally it need 10-15 days after
receiving your
advance payment, large quantities need negotiation
Do you test all your goods before delivery?
Yes, Our QC test all goods in production time and before shipment
Can you offer sample?
Yes, We could supply free sample for one piece, two pcs , you just need pay the shipping cost
Which certification do you have?
ISO14001:2015, OHSAS 18001:2007, ISO9001:2015
Maintenance and use
The room temperature of laid antistatic floor is controlled in 15°C-35°C；humidity is controlled in 45%- 75%RH； if the computer room is in high temperature or low humidity condition for a long time, the floor surface will produce peeling or fracture phenomenon.
1. It is forbidden to use sharp tools to operate directly on the floor to prevent damage the anti-static performance and aesthetic degree of the surface;
2. In the process of use, people are forbidden to jump directly to the floor from a high place.
3. When moving equipment on the floor, it is forbidden to push the equipment directly on the board surface and scratch the floor. The correct way is to lift the equipment for handling
4. When there is heavy equipment in the computer room, the equipment should be directly landed on the ground base, not directly landed on the floor, resulting in long-term load-bearing deformation of the floor;
5. When the equipment under the floor is maintained, the floor is sucked up by panel lifter for operation. It is forbidden to use sharp tools for savage disassembly.
6. Maintenance can use a vacuum cleaner or half dry mop to keep the floor clean, especially not spill liquid on the floor.
7. The autumn and winter season is appropriate for the computer room humidification, the floor surface regularly use anti-static wax maintenance, so as to ensure the long-term use of the floor effect.
2. In the process of use, people are forbidden to jump directly to the floor from a high place.
3. When moving equipment on the floor, it is forbidden to push the equipment directly on the board surface and scratch the floor. The correct way is to lift the equipment for handling
4. When there is heavy equipment in the computer room, the equipment should be directly landed on the ground base, not directly landed on the floor, resulting in long-term load-bearing deformation of the floor;
5. When the equipment under the floor is maintained, the floor is sucked up by panel lifter for operation. It is forbidden to use sharp tools for savage disassembly.
6. Maintenance can use a vacuum cleaner or half dry mop to keep the floor clean, especially not spill liquid on the floor.
7. The autumn and winter season is appropriate for the computer room humidification, the floor surface regularly use anti-static wax maintenance, so as to ensure the long-term use of the floor effect.
The Notes in USE
1. Environmental requirements of the site.
Temperature: 10-30°C
Relative humidity: RH 30-70%;
Temperature change rate: △Tw15°C/ hour, or no condensation;
Vibration: no constant vibration (source);
Chemical environment: no volatile substances, no high corrosion substances
2. The surface of the raised floor is forbidden to be washed with water, and the mop that applies wring out is mopped, in case the surface of the raised floor is covered with peeling and the metal parts of the lower part are encrusted
3. Do not use hard thing (or sharp tools) to squeeze, impact, scratch, finish or apply plastic coating
4. When the raised floor is opened or installed, special panel lifter shall be used to handle and put gently, and no hard pry iron be used.
5. Corridor, entrance and the place with a lot of people, should avoid heavy load, otherwise easy to damage the floor.
6. For long-term heavy load, when a support point of a machine weight is large than floor bearing grade 1/3, should be in the floor corresponding parts with a column support, otherwise easy to cause the floor out of shape.
7. After the floor is paved, walking may produce sound, which is related to the floor and installation, not the performance of the floor itself.
8. Do not use heavy items that may damage the floor.
9. Do not transform the floor at will. Do not move the panel lifter while they are sucking the floor in case they fall off on the
way. when taking the floor, should wear gloves, otherwise easy to damage the hand, avoid sunshine direct irradiation, lest facing layer prematurely discoloration aging.
10. Please do not lay down gas and water pipes under the floor.
Installation diagram
