Quick Details
-
Type:
-
other, Door & Window Accessories
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Master
-
Model Number:
-
hardware
-
Product name:
-
Garage door hardware/Sectional garage door hardware
-
Size:
-
2''
-
Thickness:
-
1.5mm, 1.8mm, 2.0mm
-
Material:
-
Steel, Galvanized steel, Aluminum alloy
-
Finished:
-
Galvanized / Nongalvanized / Oiled
-
Package:
-
Carton
-
Function:
-
For sectional door use
-
Certificate:
-
Ce, ISO9001
-
Hardware System:
-
EU Standard
Quick Details
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Villa
-
Design Style:
-
Modern
-
Type:
-
other, Door & Window Accessories
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Master
-
Model Number:
-
hardware
-
Product name:
-
Garage door hardware/Sectional garage door hardware
-
Size:
-
2''
-
Thickness:
-
1.5mm, 1.8mm, 2.0mm
-
Material:
-
Steel, Galvanized steel, Aluminum alloy
-
Finished:
-
Galvanized / Nongalvanized / Oiled
-
Package:
-
Carton
-
Function:
-
For sectional door use
-
Certificate:
-
Ce, ISO9001
-
Hardware System:
-
EU Standard
Details Images of Garage Door Accessories

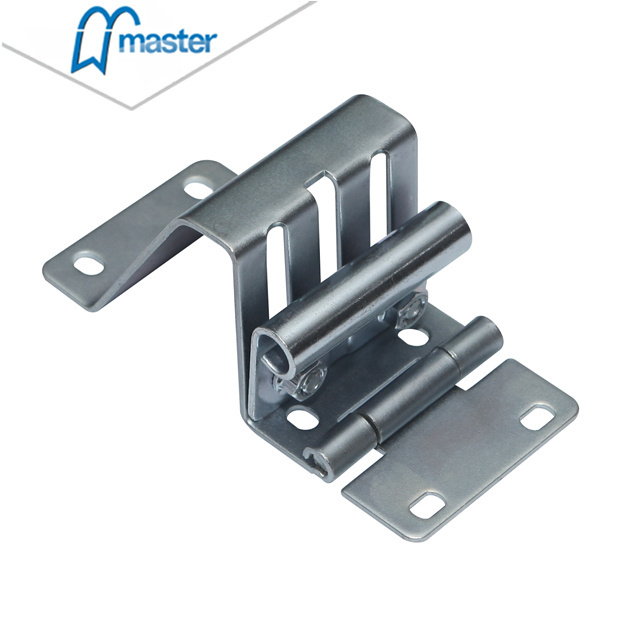

Garage Door Hinge
Garage Door Hinge, for Non-finger protection panel:
1.
Item.No for hinges: MAS0001.1, MAS0001.2, MAS0001.3, MAS0001.4, MAS0001.5, MAS0002
2. Material: Zinc plating & normal galvanized steel;
3. Steel thickness: 1.8 mm, 2.0 mm;
4. Finished surface for 40mm thick panel with non-finger protection;
5. For 11 mm, 4'' stem rollers only ;
6. Type: garage door hinge.
Garage Door Hinge for finger protection
1. Item No. for hinges: MAS0101, MAS0501, MAS0601,MAS0801, MAS1001, MAS0501DB, MAS1101,MAS0701, MAS0102, MAS0102.B, MAS0502, MAS0602, MAS0802, MAS1002, MAS1102, MAS0302;
2. Material: Normal galvanized steel;
3. Steel thickness: 2.0mm;
4. Finished surface for panel thickness 40 mm with finger protection;
5. For 11mm stem roller only.
Top Bottom Roller Bracket
Top roller bracket
1.
Top bracket model: MAS0003, MAS0803, MAS0703, MAS0603;
2. Thickness: 1.5mm, 2.0mm;
3.
Material: steel/galvanized steel;
4. Use for standard single track hardware;
5. For 11 mm stem rollers only.
Bottom roller bracke
1.
Bottom bracket model: MAS004, MAS0604, MAS0304, MAS0804, MAS0504A, MAS0504B, MAS0704, MAS0904
;
2. Thickness: 2.3mm, 2.5mm, 4.0mm;
3.
Material: Zinc plated/galvanized steel
;
4. For 7'', 11mm stem roller and 2"/3'' , 2''track;
5. Both left and right available.
Bearing Brackets
Central bearing bracket
1.
Model:MAS0105, MAS005, MAS0605
;
2. Distance: 65mm, 84mm;
3. Thickness: 2.0mm / 2.5mm / 3.0mm;
4.
Material: steel/Zinc plating;
5. The bearing bracket is provide with a 1" bearing installed.
Side bearing bracket
1.
Model: MAS0606;
2. Distance: 60mm / 84mm;
3. Material: Zinc Plating;
4.
Thickness: 2.5mm;
5. Both left and right are available.
Spring anti-break
1.
Model: MAS0505, MAS0305;
2. Equipped with 1’’ bearing;
3. For 2’’5/8, 3’’3/4, 1''3/4, 2'' torsion spring;
4.
Material: Steel/Zinc plating.
Garage Door Roller
Nylon roller
1.
Model: MAS0007, MAS0707, MAS0807, MAS0907
;
2. Stem: 4''/7 ball, 7''/11 ball, 4''/ Precision 6200ZZ, 7''/ Precision 6200ZZ, 11 ball;
3.
Diameter: 2'', for 2'' track only.
Steel roller
1.
Model: MAS0507, MAS0607, MAS0608;
2. Stem: 4''/ 10 ball, 7''/ 10 ball, 7''/ 10 ball.
3.
Diameter: 2'', 3'', for 2'', 3''track.
Cable drum
Normal lifting cable drums for torsion spring system
1. Model:
MAS0013.NL8, MAS0013.NL12, MAS0013.NL12B, MAS0013.NL10, MAS0013.NL18, MAS0013.NL18B, MAS0013.NL32, MAS0013.NL32B;
2. Max lifting height: 8', 10', 12' 18', 32';
3. Max cable diameter: 1/8'', 3/16'', 5/32'', 1/4''.
Vertical lifting cable drums for torsion spring system
1. Model:
MAS0315.VL11, MAS0315.VL11B, MAS0315.VL18, MAS0315.VL28B;
2. Max lifting height: 11'', 18'', 28'';
3. Max cable diameter: 3/16'', 1/4''.
High lifting cable drums for torsion spring system
1. Model:
MAS0315.VL11, MAS0315.VL11B, MAS0315.VL18, MAS0315.VL28B
2. Max lifting height: 54'' vertical+120''/180'', 120'' vertical+144'', 164'' vertical+229'';
3. Max cable diameter: 1/8'', 3/16'', 1/4''.
Torsion Spring Fittings
Garage Door Seal
Tube shaft
Tube shaft MAS0024
Thickness:1.5mm/ 1.8mm/ 2.0mm
Outside diameter: 1''
Tube shaft with keyway MAS0124
Thickness:2.0mm/ 3.0mm
Outside diameter: 1'' with 1/4 keyway
Solid shaft with keyway MAS0224
Outside diameter: 1'' with 1/4 keyway
Garage door lock
Slide lock MAS0623
shaft: 5/16'' square*4''
Emergency lock MAS0121
With 2mm cables, with lock cap
For electrical opeation only
T- type manual lock MAS0122
shaft: 5/16'' square*4''
Screws
Others
vertical track, horizontal track, motor guide, cable, cable sleeve, exterior reinforce bar,flag bracket, angle iron, jamb bracket, chain hoist, handle, receiver, pin code lock, photo beam, wall switch and etc.
