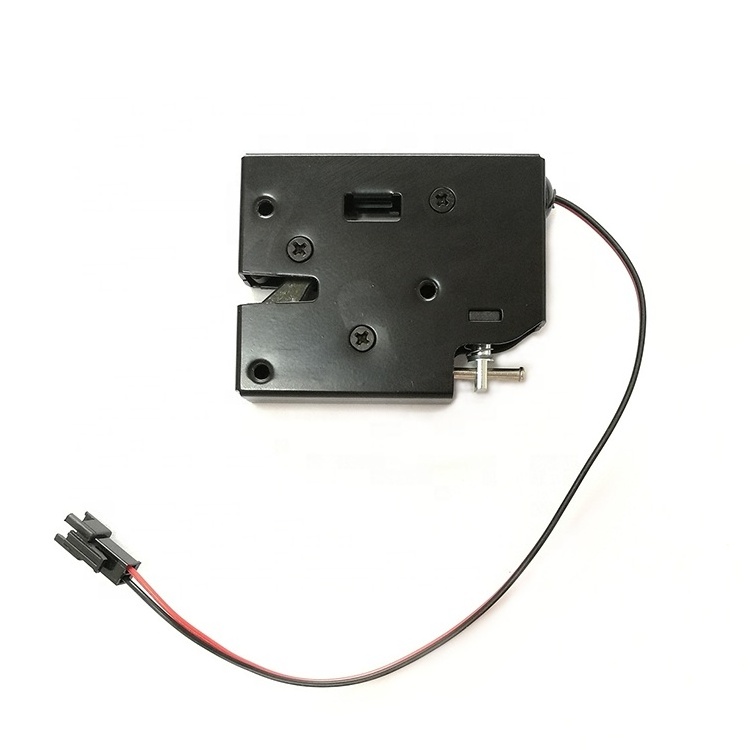

VE-P202 Small 12V Cabinet Electronic Control Key Lock

Small 12V Cabinet Electronic Control Key Lock

Specification :

1. Product material: shell adopts steel sheet forming \ internal parts of carbon steel precision casting.

2. Size : 68*55*13mm;
3. Working mode: independent (i.e. the door is locked when the power is turned off, and the lock is triggered when the power is turned on);
4. Electrical parameters: DC12V 2A, suction time cannot exceed 200ms;
5. Mechanical life: more than 500,000 times under design load;
6, Electromagnet life: rated working conditions, more than 1000000 times;
7, Self-elastic design: elastic adjustable, can be applied to 0.5~4Kg weight door self-elastic.
8, Surface treatment: electrocoat paint (neutral smoke test over 500 hours).
9. Safety: the lock hook can bear 150Kg tension without obvious permanent deformation;With anti - shock, anti - skid performance
10, Working temperature: -40 - +60 ° c
11, Installation: small size, simple installation, no left and right, pros and cons;And reserve the mechanical emergency opening position;

Application :

Storage cabinet, telegraph box, locker, logistics cabinet, file cabinet, electricity meter box, locker, vending machine, mobile phone cabinet, shoe cabinet and other centralized control cabinet.Widely used in schools, community logistics, hotels, factories, bath centers, military, Banks, supermarkets, prisons and other places.

Small 12V Cabinet Electronic Control Key Lock

1 Read the manual carefully and test it before the installation;
2  Lock Dimensions:
