Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Champions
-
Model Number:
-
AG-T8603
-
Mechanical Life:
-
100,000 Times of Operation
-
Product name:
-

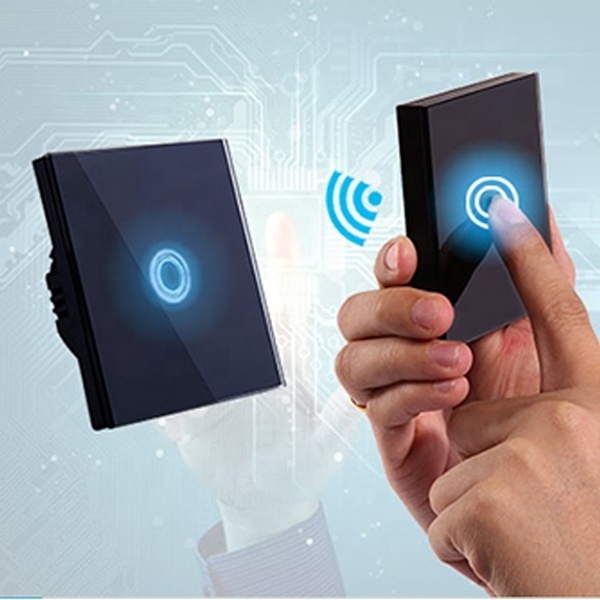

Wall touch panel (RF remote control)
-
Voltage:
-
12V or 6V (battery type: 27A 12V or coin battery 3V)
-
Frequency:
-
433MHz
-
Open Space Distance:
-
30 meter
-
Panel Material:
-
Tempered crystal glass
-
Case Material:
-
flame retardant ABS
-
Installation method:
-
3M sticker (stick on the wall or anywhere you want)
-
Color:
-
White Black Gold
-
Size:
-
86*86*13mm
-
Control Method:
-
RF Remote
Quick Details
-
Max. Current:
-
2A
-
Max. Voltage:
-
12V
-
Network:
-
RF
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Champions
-
Model Number:
-
AG-T8603
-
Mechanical Life:
-
100,000 Times of Operation
-
Product name:
-
Wall touch panel (RF remote control)
-
Voltage:
-
12V or 6V (battery type: 27A 12V or coin battery 3V)
-
Frequency:
-
433MHz
-
Open Space Distance:
-
30 meter
-
Panel Material:
-
Tempered crystal glass
-
Case Material:
-
flame retardant ABS
-
Installation method:
-
3M sticker (stick on the wall or anywhere you want)
-
Color:
-
White Black Gold
-
Size:
-
86*86*13mm
-
Control Method:
-
RF Remote
|
Product Name
|
Wall Touch Light Switch Panel (RF remote control)
|
|
Standard Size
|
86*86*13mm
|
|
Color
|
White Black Gold
|
|
Frequency
|
433MHz/433.92MHz
|
|
Open Space Distance
|
15-30 meter
|
|
Battery
|
27A 12V or coin battery 3V optional
|
|
Panel Material
|
Tempered crystal glass
|
|
Case Material
|
flame retardant ABS
|
|
Installation method
|
3M sticker (stick on the wall or anywhere you want)
|
|
Material
|
Tempered glass panel
|
|
Application
|
Works with master switch, control light on/off
|
|
Working temperature
|
-20℃~+70℃
|
|
Life Time
|
more than 100,000 times
|
|
Warranty
|
2 Years
|
Paring method
1. The main switch paired with a Remote switch method
Press the touch button of the Main switch for a long time, and release it after hearing the sound of dripping, then press the touch button of the Remote switch and the pairing is successful after hearing the sound of dripping.
2. How to clear the code ?
Press the touch button for few seconds when rings until the back blue light flash times, then code will be cleared.
Free Sticker Transmitter Installation Display
You can choose multiple combinations what you like
Packing
white box/ color box can choose.
Packing can be customized.
