Quick Details
-
Type:
-
Color sorting equipment
-
Use:
-
Grain removal and sorting
-
Key Selling Points:
-
High resolution and good effect
-
Production Capacity (kg/h):
-
1000 - 1500
-
Power (kW):
-
0.8
-
Weight:
-
400 KG
-
After-sales Service Provided:
-
Online support
-
Product name:
-
prickly pear seed separator machine
-
Application:
-
Cereal Grains
-
OEM Service:
-
Accept
-
Color:
-
Customer Required
-
Voltage:
-
220V 50HZ
-
Raw material:
-
Carbon Steel
-
Advantage:
-
Higher Efficiency
-
MOQ:
-
1 Set
-
Feature:
-
Easy Operation
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Jiarun Technology
-
Dimension(L*W*H):
-
880*1504*1760
-
Type:
-
Color sorting equipment
-
Use:
-
Grain removal and sorting
-
Key Selling Points:
-
High resolution and good effect
-
Production Capacity (kg/h):
-
1000 - 1500
-
Power (kW):
-
0.8
-
Weight:
-
400 KG
-
After-sales Service Provided:
-
Online support
-
Product name:
-
prickly pear seed separator machine
-
Application:
-
Cereal Grains
-
OEM Service:
-
Accept
-
Color:
-
Customer Required
-
Voltage:
-
220V 50HZ
-
Raw material:
-
Carbon Steel
-
Advantage:
-
Higher Efficiency
-
MOQ:
-
1 Set
-
Feature:
-
Easy Operation
Product Overview
Waterfall type color sorter
The waterfall type color sorter is a device that uses photoelectric detection technology to automatically sort out the heterochromatic particles in the granular material according to the difference in the optical characteristics of the material.
Raw materials are put into the machine from its feeding hopper on the top, vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate. Under the effect of light source, CCD sensor receives compound light from materials being sorted. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work, ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.
FEATURES AT A GLANCE
CCD image sensor
LED light source
PLC operating system
Stable output
Simple structure, low power consumption
Good sorting effect
|
|
Item
|
Total power（Kw）
|
Voltage（V）
|
Standard Sizes（mm）
|
Machine Weight（Kg）
|
|
1 channel
|
6SXM-64F
|
0.8
|
220/50Hz
|
880*1504*1760
|
400
|
|
2 channels
|
6SXM-128F
|
1.3
|
220/50Hz
|
1314*1504*1760
|
540
|
|
3 channels
|
6SXM-192F
|
1.9
|
220/50Hz
|
1650*1504*1760
|
750
|
|
4 channels
|
6SXM-256F
|
2.4
|
220/50Hz
|
1986*1504*1760
|
960
|
|
5 channels
|
6SXM-320F
|
3
|
220/50Hz
|
2322*1504*1760
|
1150
|
|
6 channels
|
6SXM-384F
|
3.6
|
220/50Hz
|
2658*1504*1760
|
1350
|
|
7 channels
|
6SXM-448F
|
4.1
|
220/50Hz
|
2994*1504*1760
|
1560
|
|
8 channels
|
6SXM-512F
|
4.7
|
220/50Hz
|
3330*1504*1760
|
1760
|

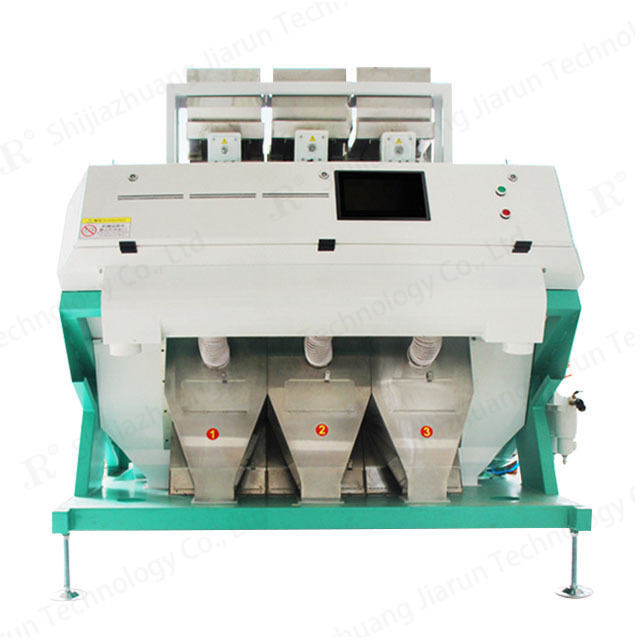

Front side

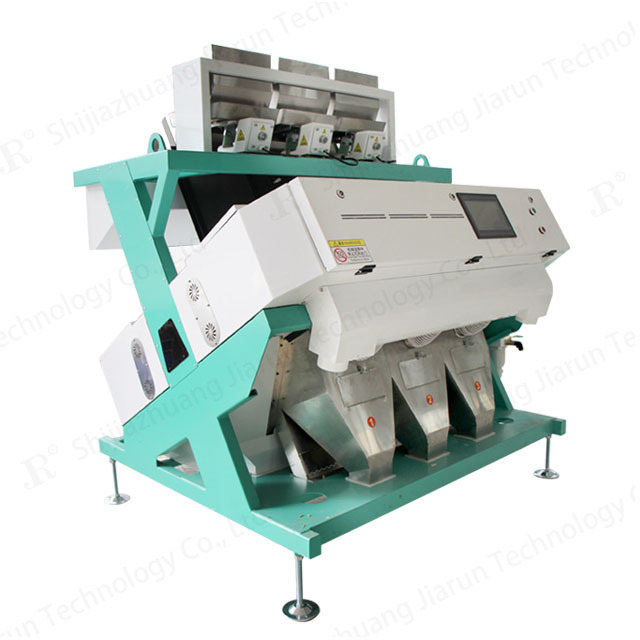

Left
side
Right
side
PRODUCT CONFIGURATION
Toshiba camera
Japan SMC solenoid valve
Intel main processor
Toshiba camera, Full color ultra-high speed scanning CCD sensor, 54 megapixels, detect tiny flaws as small as 0.02 square millimeters
High frequency, low gas consumption, sealed dust-free design
Automatically collection of color, shape, size, flaw and other super-dimensional spatial data, according to the selection rules to
independent calculation, identification, sorting
independent calculation, identification, sorting
SALES AND SERVICE NETWORK
Successful Project
Project in Thailand
Project in India
Project in Russia
SIMILAR PRODUCTS
FAQ
Q：Which kinds of materials is suitable for your color sorter ?
A：The grains, seeds, chemical waste, medical waste, etc, it's suitable for most industries. Specially for the sesame, beans, nuts, millet, glass, plastic, coal, mineral, peanuts, etc.
Q: Could you manufacture the special sorting machine to meet our demand?
A: Sure, we welcome your OEM and ODM order. We are glad to help you to get the sorting machine with our factory's practical technical staffs and experienced R & D staffs.
Q: How long will i get the machine?
A: Usually 10-30 workdays, depends on the quantity you order and if in stock.
More questions pls kindly contact us, we accept your inquiry anytime!
Q: Could you manufacture the special sorting machine to meet our demand?
A: Sure, we welcome your OEM and ODM order. We are glad to help you to get the sorting machine with our factory's practical technical staffs and experienced R & D staffs.
Q: How long will i get the machine?
A: Usually 10-30 workdays, depends on the quantity you order and if in stock.
More questions pls kindly contact us, we accept your inquiry anytime!
