Quick Details
-
Mounting Type:
-
screw
-
Description:
-
Proximity sensor, Jingwei
-
Model Number:
-
UBS2000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jingwei
-
Theory:
-
ultrasonic
-
Output:
-
PNP/NPN/RS485/0-10V/4-20mA
-
Product name:
-
Ultrasonic level/proximity sensor
-
Application:
-
level, distance, switch
-
Name:
-
UBS2000
-
Frequency:
-
175KHz
-
Brand:
-
Jingwei
-
Material:
-
Brass
-
Accuracy:
-
1%
-
Working temperature:
-
-20~70℃
-
Warranty:
-
1year
-
Power supply:
-
10~30VDC,10%Vpp
Quick Details
-
Use:
-
level/proximity
-
Series:
-
ultrasonic sensor
-
Features:
-
level
-
Mounting Type:
-
screw
-
Description:
-
Proximity sensor, Jingwei
-
Model Number:
-
UBS2000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jingwei
-
Theory:
-
ultrasonic
-
Output:
-
PNP/NPN/RS485/0-10V/4-20mA
-
Product name:
-
Ultrasonic level/proximity sensor
-
Application:
-
level, distance, switch
-
Name:
-
UBS2000
-
Frequency:
-
175KHz
-
Brand:
-
Jingwei
-
Material:
-
Brass
-
Accuracy:
-
1%
-
Working temperature:
-
-20~70℃
-
Warranty:
-
1year
-
Power supply:
-
10~30VDC,10%Vpp

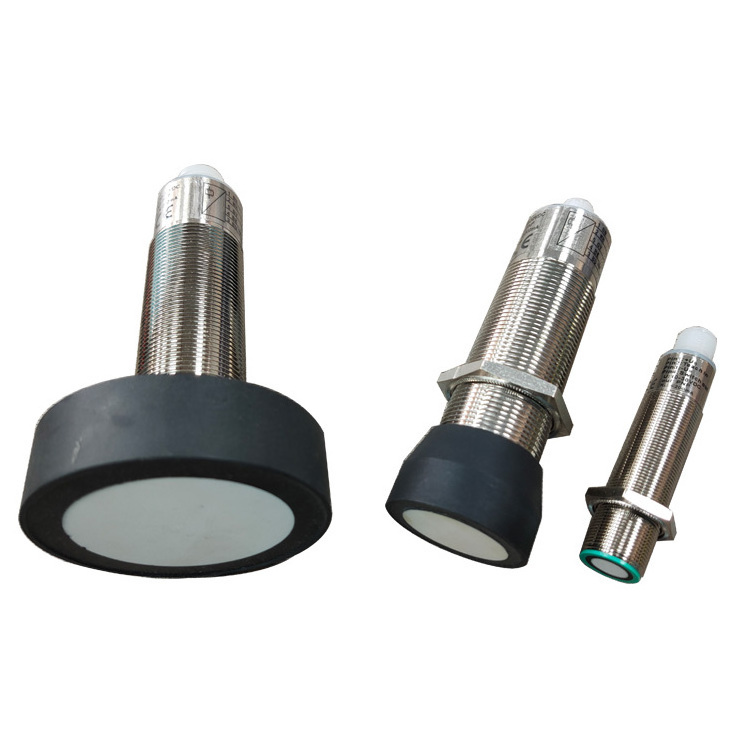

Products Description
Steel/brass ultrasonic proximity sensors are developed for automation control, widely used for automatic devices, fabric machines, easy to install and performance is stable, can work in hard environment.
Specification
|
Sensing distance
|
100~2000mm
|
|
Adjustment range
|
100~2000mm
|
|
Unusable area
|
0…100mm
|
|
Standard target plate
|
100mm×100mm
|
|
Transducer frequency
|
About 175 kHz
|
|
Angle
|
8°
|
|
Response delay
|
195ms
|
|
Operating voltage UB
|
10…30VDC,ripple10%ss
|
|
No-load supply current
|
≤25mA
|
|
Output type
|
0-10V, 4-20mA, RS485, PNP, NPN
|
|
Resolution Ratio
|
1mm
|
|
Repeatibility
|
0.3%
|
|
Temperature Drift
|
≤2% of full range (built-in temperature compensation)
|
|
Operating Temperature
|
-20℃~+70℃（253~343K）
|
|
Storage Temperature
|
-40℃~+85℃(233~358K)
|
|
Level Of Protection
|
IP65
|
|
Connection Type
|
V1 connector，4 pins
|
|
Housing
|
Nickel Plated Brass
|
|
Weight/Thread Length
|
115g/2M
|
Application
1. Automatic control
2. Production line
3.Fabric machines
Packing & Delivery
OUTER: carton box; INNER: polybag
