Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
AP-SW3K-8B
-
Product name:
-
Wireless NVR kit
-
Type:
-
Wireless Camera
-
Technology:
-
NetWork
-
IP Video Input:
-
8*1080p
-
Hard drive type:
-
1*SATA Interface
-
Camera Resolution:
-
2.0Megapixel
-
Night Vision Distance:
-
20-25m
-
Camera Lens:
-
3.6mm
-
Video Compression:
-
H. 264
-
Power supply:
-
DC12V
Quick Details
-
Special Features:
-
NIGHT VISION, Motion Detection, Waterproof / Weatherproof
-
Function:
-
Waterproof / Weatherproof, NIGHT VISION
-
Customized support:
-
Online technical support, Customized logo, OEM, ODM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
AP-SW3K-8B
-
Product name:
-
Wireless NVR kit
-
Type:
-
Wireless Camera
-
Technology:
-
NetWork
-
IP Video Input:
-
8*1080p
-
Hard drive type:
-
1*SATA Interface
-
Camera Resolution:
-
2.0Megapixel
-
Night Vision Distance:
-
20-25m
-
Camera Lens:
-
3.6mm
-
Video Compression:
-
H. 264
-
Power supply:
-
DC12V

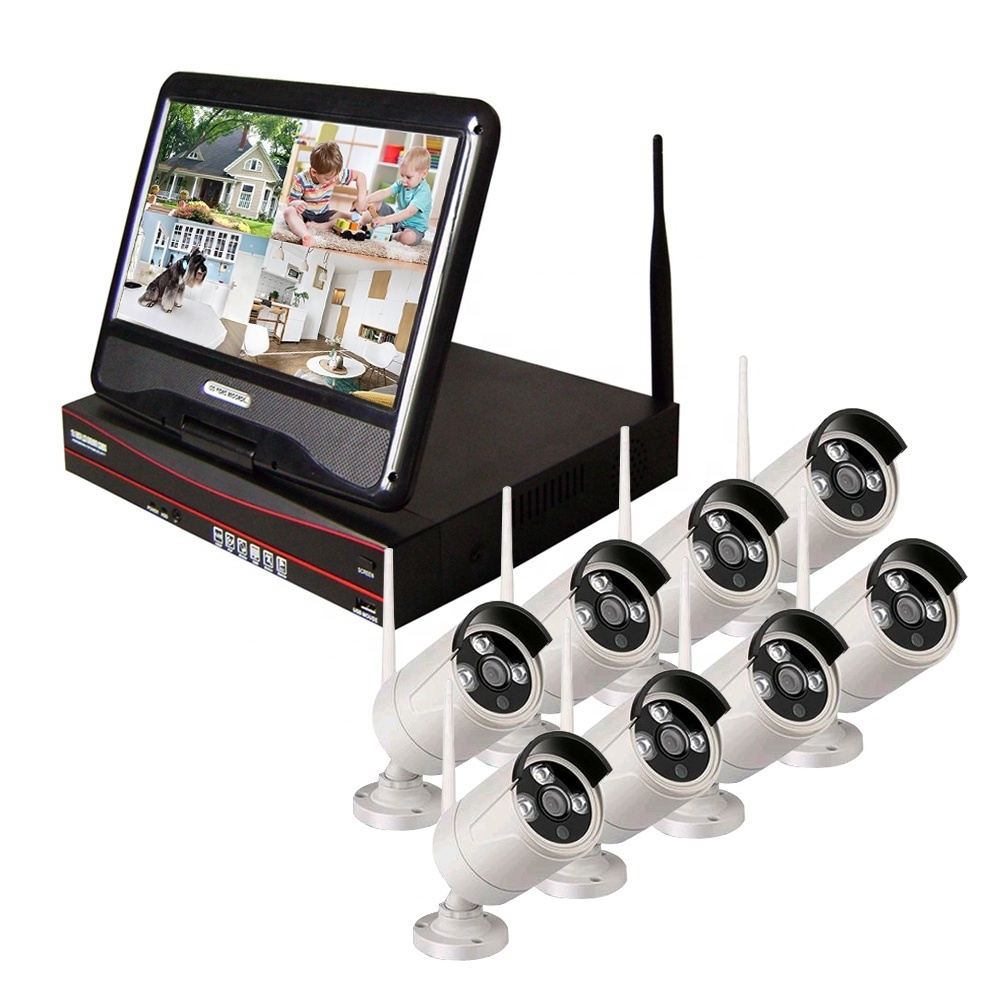

1080P Cctv Kit 8 Channel Wireless Home Security Outdoor Video Surveillance IP Camera NVR System with 10 inch LCD Screen
1080P Cctv Kit 8 Channel Wireless Home Security Outdoor Video Surveillance IP Camera NVR System with 10 inch LCD Screen
- Networking Protocol: UPNP, SMTP, PPPOE, DHCP etc.
- 8CH 1080P Wireless NVR Recorder without Hard Drive, 1080P Recording and playback.
- HUAWEI Hisilicon 3520D Processor and Embedded Linux Operating System
- Support Video Preview/Recording/Playback/USB Backup
- Support Android/IOS/Pad/PC Remote View
- 1 SATA Port, Up to 4TB Each, 1 USB 2.0 Port
- Power Supply Input: DC12V-2000mA, Output: 100-240V
- Image Sensor: 1/3" Color CMOS
- Image Resolution: 1920*1080P
- Lens: 3.6mm Lens
- Night Vision: 100Ft (30m)
- Minimum Illumination: 0 Lux (IR On)
- Weatherproof: Yes
- Power Supply Input: DC12V-1000mA, Output:100-240V
Kindly reminder:
- Cameras will auto-pair with NVR, no need to hook any video cable between them. Plug power supplies of each camera and NVR into power outlets nearby.
- You need a TV/PC monitor and a VGA/HDMI cable. Then connect TV/PC monitor to NVR with a VGA/HDMI cable, then image will appear on screen.
- NVR should be hook up into router with Ethernet cable if you need remote access.
- Surveillance HDD is optional,HDD will overwrite automatically when it's full.
- Please contact us if you need assistance for extending wifi range.
- If you need motion detection applications, please set them up properly by adjusting motion sensitivity, area and time to avoid false trigger such as plants blown by the wind.
- Audio and PTZ function are not supported.
- Please read the user's manual and test cameras' wifi signal before installation.
8 x 1080P IP Cameras
8 x 10 Feet Power Supply (12V-1000mA) for Cameras
1 x 3.3 Feet Power Supply (12V-2000mA) for NVR
1 x Mouse
8 x Screw Bag
1 x User Manual
(Be Sure to Have a TV or PC Monitor to Display Camera Picture, a VGA or HDMI Cable for Monitor Connection, a WAN Router To View Video Remotely and Hard Drive for Recording Video)
Pls Note, the NVR Supports 4TB HDD Maximum.The Size of Hard Drive is 3.5 inch. 2TB can Record around 25 Days.
New Hard Drive Should be Formatted Before Using. Don't forget it.
If HDD is Full, the New Recordings will Automatically Overwrite the Prior Recording.
