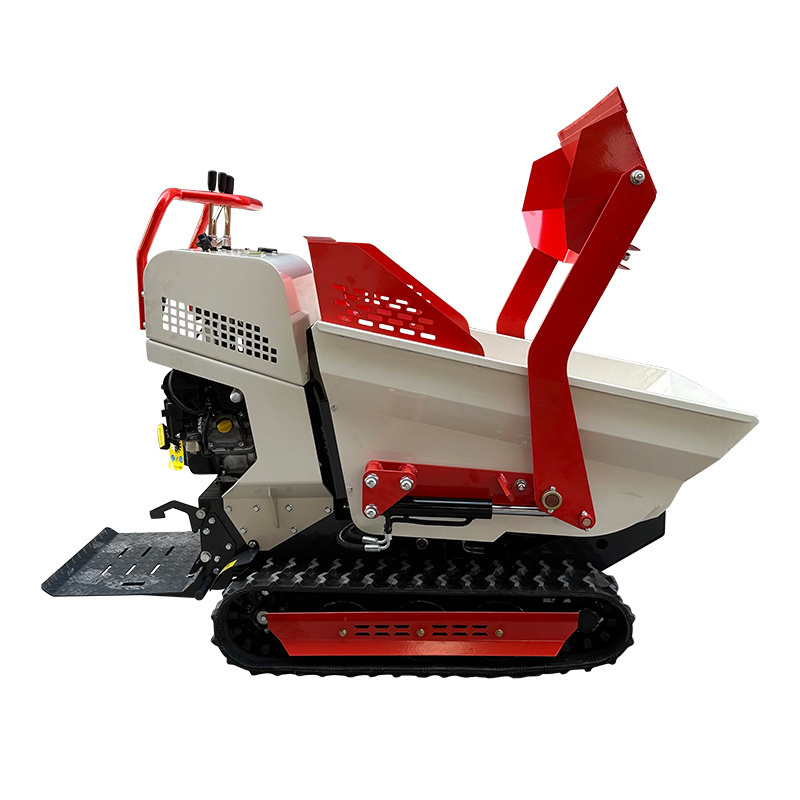

- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
2500*1200*1280
-
Machine Weight:
-
900 kg
-
Bucket capacity:
-
0.15 cbm
-
colour:
-
yellow
-
form:
-
Wheel loader
Quick Details
-
Engine Brand:
-
runtong
-
Power:
-
Other, 19.2
-
Brand Name:
-
renhe
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
2500*1200*1280
-
Machine Weight:
-
900 kg
-
Bucket capacity:
-
0.15 cbm
-
colour:
-
yellow
-
form:
-
Wheel loader
Skid loaders are also known as sliding loaders, multifunctional engineering vehicles, and multifunctional engineering machines. It is a wheeled specialized chassis equipment that utilizes the linear speed difference between the wheels on both sides to achieve vehicle steering. Mainly used in situations where the work site is narrow, the ground is uneven, and the work content changes frequently.
Suitable for infrastructure construction, industrial applications, dock loading and unloading, urban streets, residential buildings, barns, livestock sheds, airport runways, etc. It can also be used as auxiliary equipment for large-scale engineering construction machinery. There are two types of walking modes for sliding loaders: wheel type and track type.
|
技术参数
|
|
|
||
|
Engine
|
|
|
||
|
动力型号：
|
Engine Model
|
BLT New Pioneer 200
|
||
|
动力种类：
|
Engine Type
|
Single cylinder, OHV, 4-stroke, air cooling
|
||
|
总排气量(ML)：
|
displacement
|
203CC
|
||
|
额定功率(kw/rpm)：
|
Rated Power
|
6.5HP/3600rpm
|
||
|
燃油种类：
|
Fuel Type
|
92 # Gasoline
|
||
|
燃油消耗（g/kw·h）：
|
Fuel Consumption
|
≤0.395
|
||
|
油箱容量（L）：
|
Fuel Tank capacity
|
3.6
|
||
|
机油容量（L）：
|
Engine oil capacity
|
0.6
|
||
|
Weight
|
|
|
||
|
机体重量（KG）：
|
Total Weight
|
414
|
||
|
最大载重（KG）：
|
Max loading weight
|
500
|
||
|
机体尺寸（MM）：
不含脚踏板不含铲斗 |
Machin size（Without pedal, without bucket）
|
1570*880*1300
|
||
|
含脚踏板铲斗尺寸（MM）：
|
Bucket size with foot pedal:
|
2050*880*1300
|
||
|
货箱尺寸（MM）：
|
Container size：
|
1050*730*730
|
||
|
底盘宽度（MM）：
|
Chassis width：
|
700
|
||
|
Track data
|
|
|
||
|
履带宽度（MM）：
|
track width：
|
180
|
||
|
履带接地长度（MM）：
|
Track grounding length：
|
1000
|
||
|
底盘离地间隙（MM）：
|
Chassis ground clearance:
|
110
|
||
|
Hopper
|
|
|
||
|
货箱容量（dm³）
|
Cargo box Capacity
|
200
|
||
|
翻斗方式：
|
Tipping Systme
|
Hydraulic Tipper
|
||
|
翻斗角度（°）：
|
Tilting Angle
|
100
|
||
|
walk
|
|
|
||
|
行走性能速度（km/h）：
|
Walking Speed
|
2.88
|
||
|
最小回转半径（m）：
|
Minimum Turning radius
|
1.15
|
||
|
履带中心距（mm）：
|
Track gauge
|
520
|
||
|
底盘离地间隙（mm）：
|
Chassis ground clearance：
|
100
|
||
|
爬坡能力（°）：
|
Climbing abillty
|
20
|
||
|
Hydraulic oil
|
|
|
||
|
液压油品号：
|
Hydraulic oil model
|
46 # Anti-wear Hydraulic Oil
|
||
|
液压油箱容量（L）：
|
Hydraulic tank capacity
|
15
|
||
