Quick Details
-
Model Number:
-
CYS-S2215
-
Size:
-
40x20x41.4mm
-
Product Name:
-
Standard Size RC Waterproof Digital Servo
-
Weight:
-
60g±1g
-
Input Voltage:
-
6.0V/7.4V
-
Operating Speed (at no load):
-
0.14 sec/60° / 0.12 sec/60°
-
Stall Torque:
-
14.0 kg.cm/15.0 kg.cm
-
Feature:
-
Waterproof Digital Titanium Gear Standard Size Coreless
-
Control Type:
-
Digital
-
Motor Type:
-
Coreless
-
Gear Material:
-
Titanize
-
Scale:
-
1:8/1:10
Quick Details
-
Use:
-
Vehicles & Remote Control Toys
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CYS
-
Model Number:
-
CYS-S2215
-
Size:
-
40x20x41.4mm
-
Product Name:
-
Standard Size RC Waterproof Digital Servo
-
Weight:
-
60g±1g
-
Input Voltage:
-
6.0V/7.4V
-
Operating Speed (at no load):
-
0.14 sec/60° / 0.12 sec/60°
-
Stall Torque:
-
14.0 kg.cm/15.0 kg.cm
-
Feature:
-
Waterproof Digital Titanium Gear Standard Size Coreless
-
Control Type:
-
Digital
-
Motor Type:
-
Coreless
-
Gear Material:
-
Titanize
-
Scale:
-
1:8/1:10

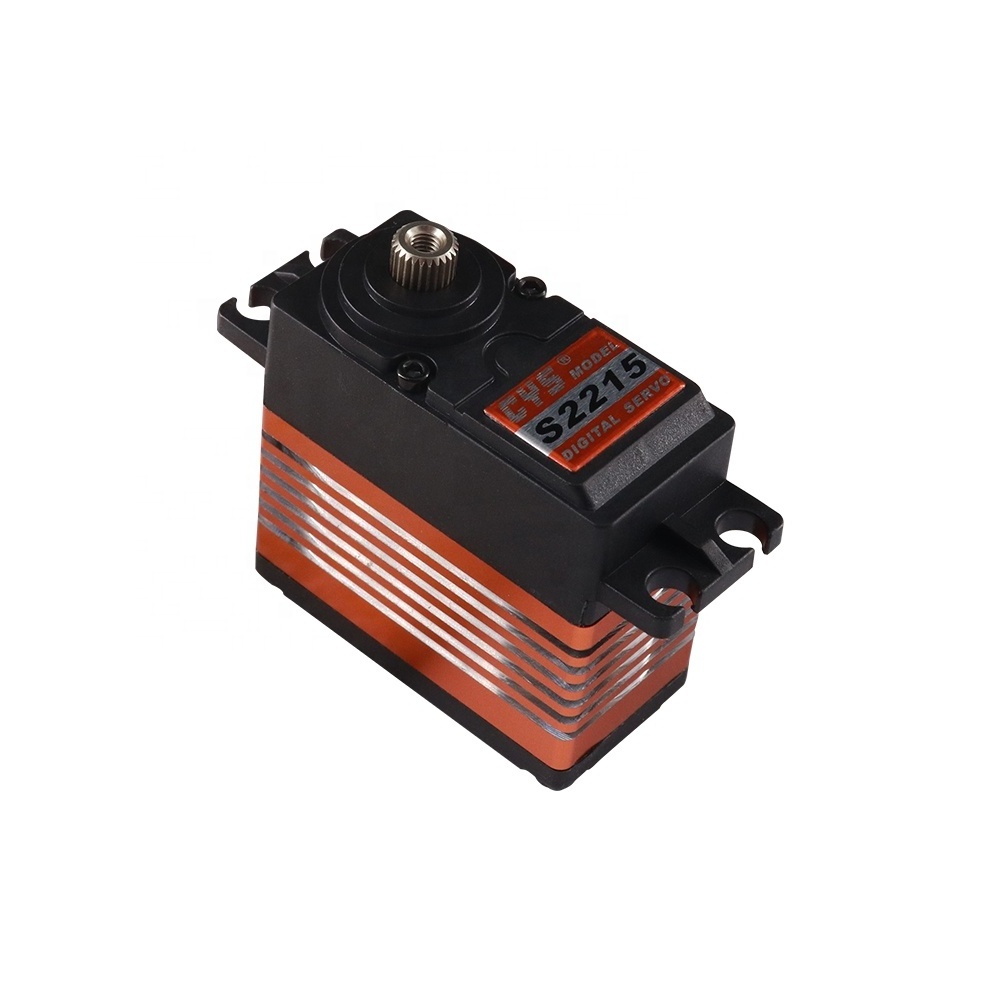

High Performance 15kg Aluminum Middle Case Standard Size Waterproof Digital Coreless Servo with Titanium Gear for RC Car
Product Paramenters
|
Item No.
|
CYS-S2215
|
|
Control Type
|
Digital
|
|
Gear Type
|
Titanize
|
|
Weight
|
60g±1g
|
|
Size
|
40x20x41.4mm
|
|
Control System
|
(+)Pulse Width Control 1500μsec Neutral
|
|
Operating Voltage
|
6.0V-7.4V
|
|
Operating Temperature Range
|
-10 °C ~ +50 °C
|
|
Operating Speed @ 6.0V-7.4V
|
0.14 sec/60° - 0.12 sec/60° at no load
|
|
Stall Torque @ 6.0V -7.4V
|
14.0 kg.cm-15.0 kg.cm
|
|
Current Drain (6.0V)
|
20mA/idle and 120mA no load operating
|
|
Current Drain (7.4V)
|
20mA/idle and 150mA no load operating
|
|
Stall Current
|
2.8A/3.2A
|
|
Dead Band Width
|
2μsec
|
|
Bearing Type
|
Double Ball Bearing
|
|
Motor Type
|
Coreless
|
|
Horn Gear Spline
|
25T
|
|
Cable/Plug
|
300mm/JR
|
|
Wire Information
|
Brown(N) Red (P) Orange(S)
|
