Galime was founded in 2012, We engaged in the Research,develop and production of electric curtain motor ,window opener and accessories, sales channels all over the country, dealers has more than 1000 customers. In today's society science and technology changes with each passing day, smart home, intelligent community, intelligent transportation, the wisdom of endowment, medical wisdom, wisdom agriculture intelligent service has gradually become the main melody of the new era.
- Product Details
- {{item.text}}
Quick Details
-
Capacity:
-
5000 - 30000
-
Power Supply:
-
AC90-240V
-
Usage:
-

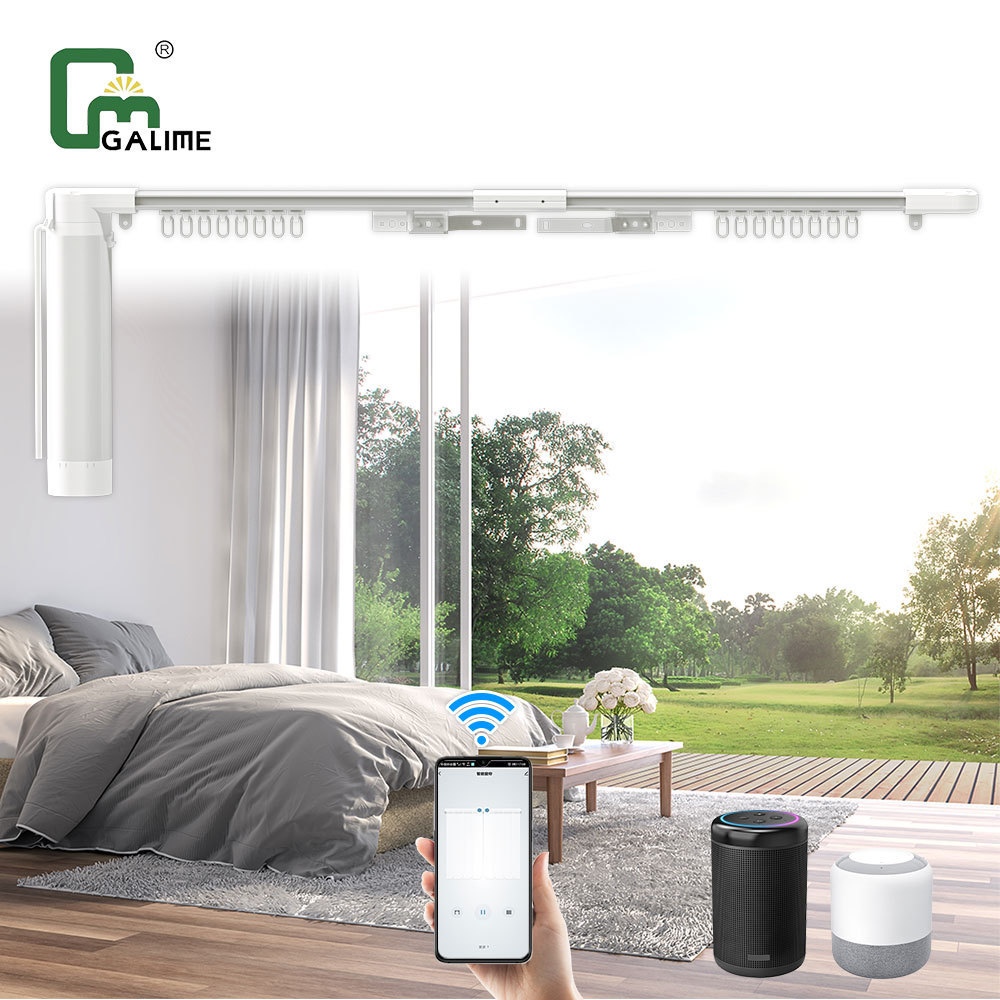

Motorized curtain track system
-
Control Mode:
-
Motroized
-
Power Line:
-
Plug or 5-Wires
-
Extend Interface control:
-
Optional
-
Color:
-
Gold or White
-
Max. Curtain Load:
-
50kg
-
RS485 Control:
-
Optional
-
Dry Contact Control:
-
Optional
-
TTL Control:
-
Optional
-
RF433:
-
Support
-
Speed Regulation:
-
Support
-
Secondary Development:
-
Support
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Galime
-
Model Number:
-
GM40
-
Capacity:
-
5000 - 30000
-
Power Supply:
-
AC90-240V
-
Usage:
-
Motorized curtain track system
-
Control Mode:
-
Motroized
-
Power Line:
-
Plug or 5-Wires
-
Extend Interface control:
-
Optional
-
Color:
-
Gold or White
-
Max. Curtain Load:
-
50kg
-
RS485 Control:
-
Optional
-
Dry Contact Control:
-
Optional
-
TTL Control:
-
Optional
-
RF433:
-
Support
-
Speed Regulation:
-
Support
-
Secondary Development:
-
Support
Functions and Technical Specification
|
Product Name
|
GM40
|
Model Number
|
M1930
|
|
Function
|
Basic Standard
|
Color
|
Gold or White
|
|
Total Size
|
6.2m
|
Style
|
Simple& Fashion& Convenient
|
|
Packing Size
|
105*26*7 CM
|
Place of Product
|
Guangdong Province,China
|
|
Rated voltage (DC)
|
AC90-240V 50/60Hz
|
Working environment
|
Negative 5 ℃ to 80 ℃
|
|
Rated power
|
35W
|
The motor size
|
275mm X 64mm X 52mm
|
|
Withstand voltage test
|
1800V 1min 5mA
|
Rated speed
|
105 Rrpm
|
|
Single open speed
|
10-13cm/s
|
The rated torque
|
1.5 Nm
|
|
Enclosure protection class
|
IP41
|
Material
|
Aluminum alloy
|
|
Insulation class
|
E
|
Certificate
|
CCC, CE, Rosh2.0,Wireless EMC ,EMF, LVD
|
|
Soft Start
|
✓
|
Manual Mode When Power Cut
|
✓
|
Overload Protection
|
✓
|
|
Electrical Limit
|
✓
|
Preferred Stop Point
|
✓
|
Overtime Protection
|
✓
|
|
Speed Regulation
|
✓
|
Intelligent Route Amending
|
✓
|
Fabric Rbounding Identify
|
✓
|
|
AC Contact Control
|
✓
|
Remote Control
|
✓
|
Reset
|
✓
|
Related Products
Company Introduction
ABOUT US
Certifications
Packing&Shipping
FAQ
Q: Are you manufacturer or trade company?
A: We have over 10 years experience of manufacturing and developing elecrtric curtain and other smart automatic sun-shading products.
Q: Where is you factory located? How can I vist there?
A: Galime Group is located in Shenzhen, Guangdong Province ,China, near to Shenzen International Airport, Welcome to our factory.
Q: How about the production time?
A: Sample production timw 1-2 days, mass production time: 3-7days.
Q: How much is the shipping cost?
A: It depends on the weight and packing size.
Q: Can you accept OEM or ODM?
A: Yes, we can make OEM products according to your request.
Q: How about the MOQ?
A: Any quantity will be OK.
