Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Shanghai Yongxing
-
Model Number:
-
YXDGQ12SF-10
-
IP level:
-
IP65, IP67
-
Mechanical Life:
-
50000 cycles
-
Working Environment Temperature:
-
-25℃~+65℃
-
Switch circuit:
-
1NO momentary, can be with LED light
-
Electrical Resistance:
-
AC250V, 1min, no flicker and breakdown
-
Contact Resistance:
-
≤50mΩ
-
Insulation Resistance:
-
≥100MΩ
-
Lamp Voltage:
-
3V 6V 12V 24V
-
Lamp Rated Current:
-
≤20mA
-
Lamp Color:
-
red green blue yellow white
-
LED Life:
-
50000 hours
Quick Details
-
Protection Level:
-
IP65 IP67
-
Max. Current:
-
5mA
-
Max. Voltage:
-
12VDC
-
Place of Origin:
-
China
-
Brand Name:
-
Shanghai Yongxing
-
Model Number:
-
YXDGQ12SF-10
-
IP level:
-
IP65, IP67
-
Mechanical Life:
-
50000 cycles
-
Working Environment Temperature:
-
-25℃~+65℃
-
Switch circuit:
-
1NO momentary, can be with LED light
-
Electrical Resistance:
-
AC250V, 1min, no flicker and breakdown
-
Contact Resistance:
-
≤50mΩ
-
Insulation Resistance:
-
≥100MΩ
-
Lamp Voltage:
-
3V 6V 12V 24V
-
Lamp Rated Current:
-
≤20mA
-
Lamp Color:
-
red green blue yellow white
-
LED Life:
-
50000 hours
Product Description

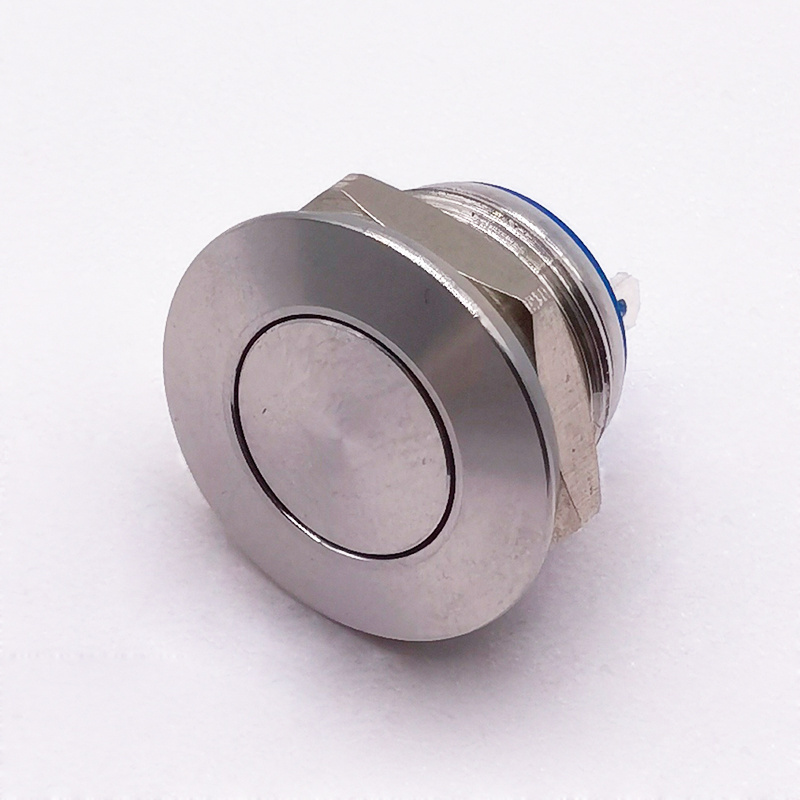

12mm 1NO momentary waterproof low profile stainless steel metal push button switch
Specification
|
item
|
value
|
|
Certification
|
CE RoHS
|
|
Whether the smart
|
Yes
|
|
Place of Origin
|
China
|
|
Brand Name
|
Shanghai Yongxing
|
|
Model Number
|
YXDGQ16/19/22SF-10
|
|
Protection Level
|
IP67
|
|
Max. Current
|
5mA
|
|
Max. Voltage
|
12VDC
|
|
LED
|
Other
|
|
Electronic Life
|
10000 cycles
|
|
Mechanical Life
|
50000 cycles
|
|
Working Environment Temperature
|
-25℃~+65℃
|
|
Switch circuit
|
1NOmomentary, can be with LED light,
|
|
Electrical Resistance
|
AC250V, 1min, no flicker and breakdown
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥100MΩ
|
