Quick Details
-
Weight (KG):
-
65
-
Power (kW):
-
0.37
-
Weight:
-
65/80kg
-
Max.diameter of valves to be ground:
-
90mm
-
Angles of valve to be ground:
-
25-60 degree
-
Grindng wheel spindle speed:
-
4500r/min
-
After-sales Service Provided:
-
Video technical support
-
After Warranty Service:
-
Video technical support
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
AMCO
-
Voltage:
-
220V/380V
-
Weight (KG):
-
65
-
Power (kW):
-
0.37
-
Weight:
-
65/80kg
-
Max.diameter of valves to be ground:
-
90mm
-
Angles of valve to be ground:
-
25-60 degree
-
Grindng wheel spindle speed:
-
4500r/min
-
After-sales Service Provided:
-
Video technical support
-
After Warranty Service:
-
Video technical support

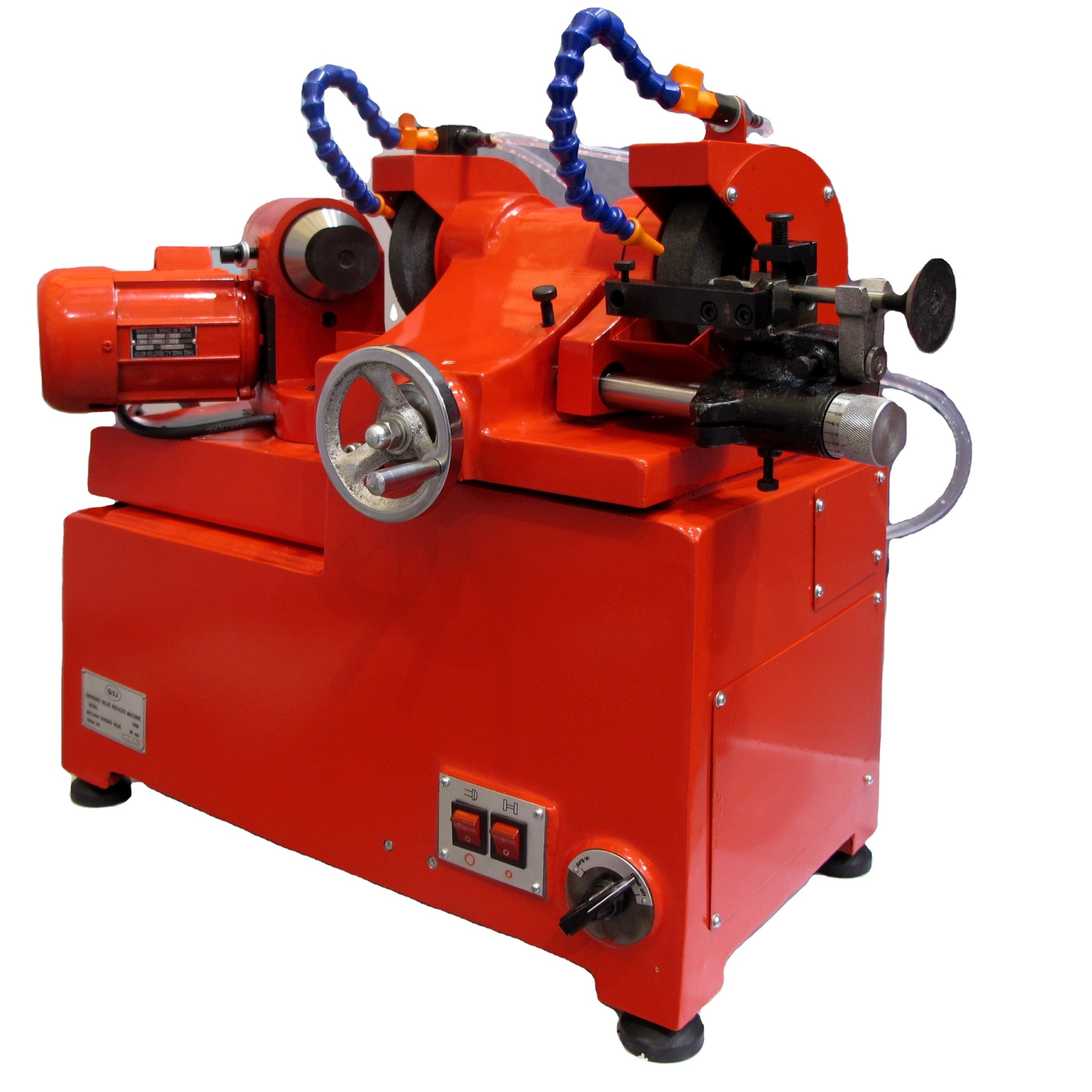

VR90 valve refacer
Valve grinder machine Vr90 is special for grinding the valves in internal combustion engines (the valves in engines on automobiles and tractors), featuring small size, flexible operation and easy use.
Model VR90
Max.diameter of valves to be ground 90mm
Diameter of valve stems to be gripped Standard 6-16mm
Optional 4.5-7mm
Optional 12-18mm
Angles of valve to be ground 25-60 degree
Longitudinal movement of geared head 120mm
Transverse movement of grinding wheel head 95mm
Max.cutting depth of ground valve 0.025mm
Grindng wheel spindle speed 4500r/min
Geared head spindle speed 125r/min
Moter power of grinding wheel head 0.37Kw
Moter power of geared head 0.09Kw
Standard accessories:
SpindleΦ50, SpindleΦ80, Parallel support A, Parallel support B, Boring cutters
Optional accessories
Spindle Φ38, SpindleΦ120, Air –floating V-type cylinder fixture
