Quick Details
-
Display ratio:
-
16:9
-
Touch screen:
-
Optional
-
AC Input:
-
110-240V
-
DC Output:
-
12V, 2A
-
Color option:
-
Black or optional
-
Housing material:
-
Metal+Front tempered glass
-
I/O interface:
-
With DVI, VGA, HD input, Audio in/out, USB port, power input
-
Installation:
-
Build-in
-
Pixel Pitch:
-
0.17925*0.17925
-
Feature:
-
Speaker
Quick Details
-
Type:
-
Resistive, Capacitive, Infrared, SAW
-
Brand Name:
-
Maxway
-
Place of Origin:
-
Guangdong, China
-
Display ratio:
-
16:9
-
Touch screen:
-
Optional
-
AC Input:
-
110-240V
-
DC Output:
-
12V, 2A
-
Color option:
-
Black or optional
-
Housing material:
-
Metal+Front tempered glass
-
I/O interface:
-
With DVI, VGA, HD input, Audio in/out, USB port, power input
-
Installation:
-
Build-in
-
Pixel Pitch:
-
0.17925*0.17925
-
Feature:
-
Speaker
Product view of front, back, side and dimensions.

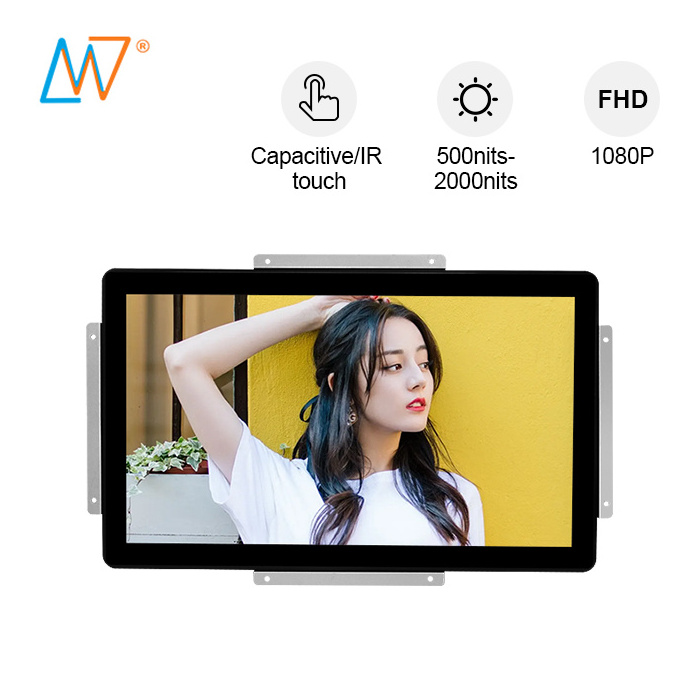

Product name: High Brightness Embedded Touchscreen Kiosk Open Frame Capacitive Touch Screen LCD Monitor Display
Model Number: MW-151AXMHT
Main features and specs.
| Main Features | ||||
| 1. Open frame type | ||||
| 2. Custom design available without addtional cost. | ||||
| 3. Building 2*3W speakers | ||||
| 4. With DVI, VGA, HD input, Audio in/out, USB port, power input | ||||
| 5. Touch screen: Capacitive touch | ||||
| 6. With Android TV stick option | ||||
| 7. Easily build-in any kind of display rack | ||||
| 8. Accessories: use manual, power adapter | ||||
| LCD screen specs | Model number | MW-151AXMHT | MW-211AXMHT | MW-271AXMHT |
| Screen size: | 15.6" | 21.5" | 27" | |
| Display ratio: | 16:9 | 16:9 | 16:9 | |
| Resolution(Pixel): | 1920*1080 | 1920*1080 | 1920*1080 | |
| Display color: | 16.7 M | 16.7 M | 16.7 M | |
| Response time : | 25ms | 14ms | 12ms | |
| Luminance: |
1000nits (700 upto 1500nits) |
1000nits (700 up to 2000nits) |
1000nits (700 up to 2000nits) |
|
| Contrast ratio: | 700:1 | 1000:1 | 5000:1 | |
| Viewing angle: | 85/85/85/85 | 89/89/89/89 | 89/8 9 /8 9 /8 9 | |
| Power supply | AC Input: | 110-240V | 110-240V | 110-240V |
| Appearance | Color option: | Black or optional | Black or optional | Black or optional |
| Housing material: | Metal+Front tempered glass | Metal+Front tempered glass | Metal+Front tempered glass | |
| Installation: | Build-in | Build-in | Build-in | |
| Unit dimensions: | 383.4*243.4*50MM | 515.4 *312 * 50 MM | 644.4 *382.6 * 53.2 MM | |
| Screen area: | 342.16*191.59MM | 476.5 *268 MM | 597.9 *336.3 MM | |
| Product weight: | 2.5KGS | 3.5KGS | 5KGS | |
| Packing details | Carton size: | 491*329*212MM | 623*398*212MM | 752*469*215MM |
| Quantity/Carton: | 2PCS | 2PCS | 2PCS | |
| Gross Weight: | 7KGS | 10KGS | 13KGS | |
| Package: | Carton packing | Carton packing | Carton packing | |
