Quick Details
-
Use:
-
Trenching on ground
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yousui
-
Keywords:
-
Disc mower new mower PTO driven 3 point for sale
-
Weight:
-
360kg
-
Power:
-
35-50
-
Model:
-
1.35
-
Working width:
-
1.35m
-
Usage:
-
Factory price tractor disc drum hay grass mower
-
Color:
-
Required
-
After Warranty Service:
-
Video technical support
Quick Details
-
Weight (KG):
-
400
-
Marketing Type:
-
New Product
-
Core Components:
-
Blades
-
Use:
-
Trenching on ground
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yousui
-
Keywords:
-
Disc mower new mower PTO driven 3 point for sale
-
Weight:
-
360kg
-
Power:
-
35-50
-
Model:
-
1.35
-
Working width:
-
1.35m
-
Usage:
-
Factory price tractor disc drum hay grass mower
-
Color:
-
Required
-
After Warranty Service:
-
Video technical support

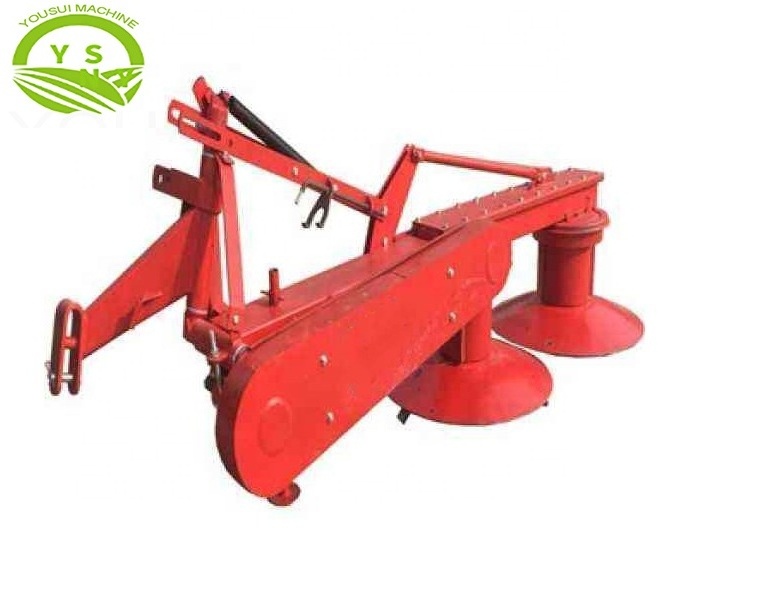

Disc mower new mower PTO driven 3 point for sale
Introduction:
It is suitable for natural and artificial planting grass with high harvesting density. The cutter head adopts upper transmission. The structure is simple, compact, low stubble and good copying. This disc mower is used to connect to the tractor's rear suspension traction frame to drive the operation with output shaft power. The machine has 2-7 high speed rotary cutter heads, each cutter head is equipped with two blades, which can operate at high speed up to 0.6-2 hectares per hour.
Specification:
|
Model |
1.25 |
1.35 |
1.65 |
|
Cutting width( mm ) |
1250 |
1350 |
1650 |
|
Matched power(hp) |
25-40 |
35-50 |
45-60 |
|
Package dimension (L X W X H) |
2300*800*1050 |
2400*850*1050 |
3000*900*1100 |
|
PTO(r/min) |
540 |
540 |
540 |
|
Cutting height(mm) |
30-40 |
30-40 |
30-40 |
|
Number of cutting blades |
6 |
6 |
6 |
|
Cutting blades material |
65Mn |
65Mn |
65Mn |
|
Productivity of operation hour(hm2/h) |
1.33 |
1.33 |
1.33 |
|
Weight(kg) |
335 |
360 |
415 |
