Quick Details
-
Model Number:
-
XC-9610
-
Dimension:
-
213x213x165mm
-
Power Supply Mode:
-
DC24V/1A
-
SNR:
-
≥80dB
-
Output Power:
-
≤25W
-
Shell Material:
-
Mental
-
The body material:
-
Mental
-
Interface:
-
RJ45 Ethernet Port, Power Input
-
Weight:
-
1.4KG
-
S/N (Signal-to-Noise) Ratio:
-
AUX1:≥84dB AUX2:≥84dB MIC:≥80dB ,60Hz~18KHz
-
Frequency Response:
-
100Hz-18kHz
-
Power Supply:
-
DC 24V/1A or PoE (IEEE802.3af)
-
Network Protocol:
-
SIP 2.0 (RFC 3261), FTP, HTTP, TCP/IP, UDP, ARP, ICMP, IGMP
-
Audio Codec:
-
MP3/PCM/ADPCM/G711.a/G711.u/G729
-
Maximum SPL:
-
97dB±3dB
-
Optional Accessories:
-
Power Adapter, IEC C13 Power Cord (US/EU/UK/AU)
-
Key Words:
-
Ceilling Speaker
Quick Details
-
Warranty:
-
2 year
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Spon
-
Model Number:
-
XC-9610
-
Dimension:
-
213x213x165mm
-
Power Supply Mode:
-
DC24V/1A
-
SNR:
-
≥80dB
-
Output Power:
-
≤25W
-
Shell Material:
-
Mental
-
The body material:
-
Mental
-
Interface:
-
RJ45 Ethernet Port, Power Input
-
Weight:
-
1.4KG
-
S/N (Signal-to-Noise) Ratio:
-
AUX1:≥84dB AUX2:≥84dB MIC:≥80dB ,60Hz~18KHz
-
Frequency Response:
-
100Hz-18kHz
-
Power Supply:
-
DC 24V/1A or PoE (IEEE802.3af)
-
Network Protocol:
-
SIP 2.0 (RFC 3261), FTP, HTTP, TCP/IP, UDP, ARP, ICMP, IGMP
-
Audio Codec:
-
MP3/PCM/ADPCM/G711.a/G711.u/G729
-
Maximum SPL:
-
97dB±3dB
-
Optional Accessories:
-
Power Adapter, IEC C13 Power Cord (US/EU/UK/AU)
-
Key Words:
-
Ceilling Speaker
Product Parameters

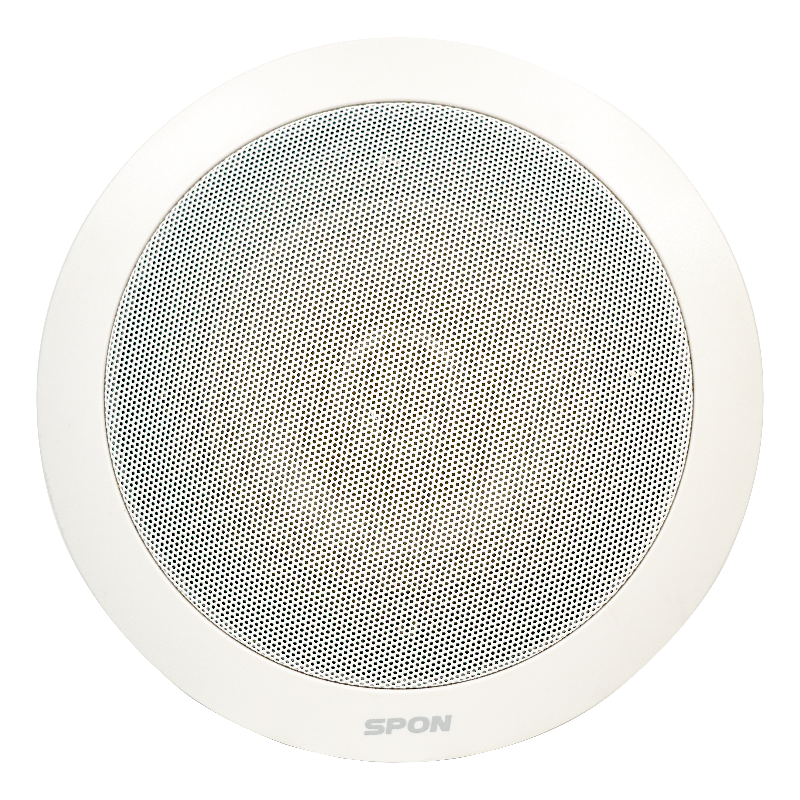

XC-9610 IP PoE Ceilling Speaker
The speaker features wideband G.722 HD audio, PoE support, and loop detector. It has dynamic volume control and can play specific ringtones for emergency alerts. Compliant with 3rd party SIP endpoints and seamlessly integrates with VoIP systems and SPON® XC-9000 software.
|
Power Supply:
|
DC 24V/1A or PoE (IEEE802.3af)
|
|
|
|
|||
|
Power Consumption:
|
≤25W
|
|
|
|
|||
|
Rated Power Output:
|
20W (at DC 24V/1A powered)
15W (at PoE powered) |
|
|
|
|||
|
Network Protocol:
|
SIP 2.0 (RFC 3261), FTP, HTTP, TCP/IP, UDP, ARP, ICMP, IGMP
|
|
|
|
|||
|
Audio Codec:
|
MP3/PCM/ADPCM/G711.a/G711.u/G729
|
|
|
|
|||
|
Maximum SPL:
|
97dB±3dB
|
|
|
|
|||
|
S/N (Signal-to-Noise) Ratio
|
AUX1:≥84dB AUX2:≥84dB MIC:≥80dB ，60Hz～18KHz
|
|
|
|
|||
|
Frequency Response:
|
100Hz-18kHz
|
|
|
|
|||
|
Interface:
|
1×RJ45 Ethernet Port, 1×Power Input
|
|
|
|
|||
|
IP Rating:
|
IP65
|
|
|
|
|||
|
Dimensions:
|
Φ213×165mm
|
|
|
|
|||
|
Weight:
|
1.4kg
|
|
|
|
|||
|
Standard Accessories:
|
1×2-Pin Terminal Block Connector, 1×Installation Manual
|
|
|
|
|||
|
Optional Accessories:
|
DC 24V/1A Power Adapter (US/EU/UK/AU)
|
|
|
|
|||
