Quick Details
-
structure:
-
4 column,self-balancing connecting
-
cutting area:
-
1220*610mm or 1600*610mm or Costomize
-
Pressure:
-
30tons
-
max openning:
-
50-240mm or 300mm or Customize
-
working system:
-
both hands manual
-
suitable for material:
-
Plastic sheet, foam sheet, leather , sponge etc.
-
status:
-
in stock
Quick Details
-
Place of Origin:
-
Guangdong, China
-
name:
-
hydraulic press
-
Cylinders:
-
2
-
structure:
-
4 column,self-balancing connecting
-
cutting area:
-
1220*610mm or 1600*610mm or Costomize
-
Pressure:
-
30tons
-
max openning:
-
50-240mm or 300mm or Customize
-
working system:
-
both hands manual
-
suitable for material:
-
Plastic sheet, foam sheet, leather , sponge etc.
-
status:
-
in stock

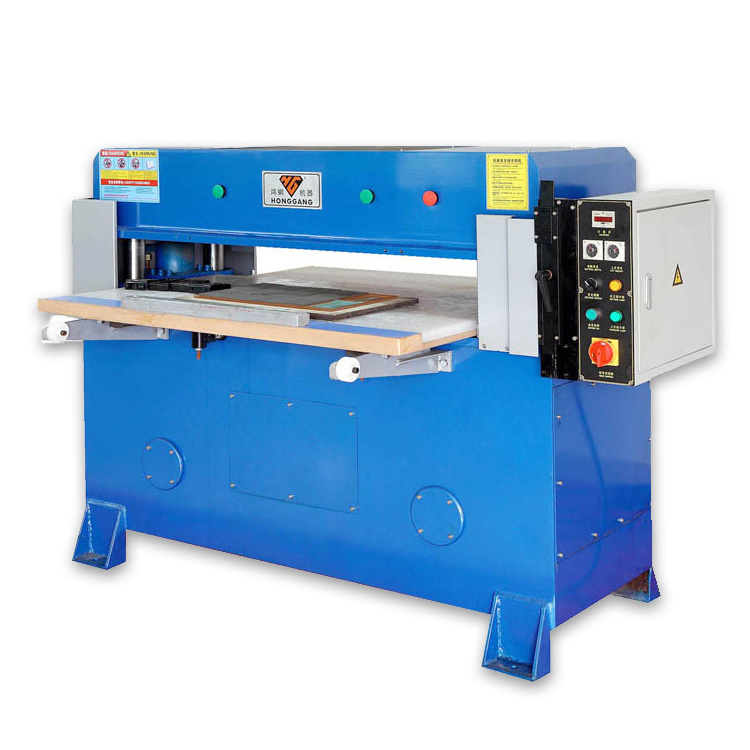

Small manual 30 ton hydraulic press used for workshop
What Detail of our hydraulic press machine?
1.die press machine pressure:25ton--300Ton,Cut material by dies/ moulds.
2.Hydraulic,manual simple operated,material precision 0.01mm,no burned.
3.Two Cylinders,Four Column,Plane cutting press machine
4.Die cutting leather,foam,EVA,sponge,plastic sheet ect.
5.Can make big cutting area:610*1600m
m or as required.
Mainly used for die cutting leather and leather products,plastic,rubber,sponge,foam,EVA,PVC,cardboard, paper products,fabric,home textiles,packaging materials,non woven,carpet,car cushion,felt,synthetic materials, and other non-metallic materials in various industries; Extremely suitable for cutting multiple layers of material at one time.
What Specifications of our hydraulic press machie?
1. Technical Parameters cutting machine
| Model.No ~ |
Cutting Force |
Dimension (L*W*H) |
Area of Work Table | Main Motor Power | Stroke Control Range | Net Weight |
| HG-a30T/63" | 30 Tons | 2330*1320*1260mm | 610*1600mm | 2.2kw | 50-160mm | 1900kg |
| HG-B30T/63" | 30 Tons | 2330*1320*1260mm | 610*1600mm | 2.2kw | 50-240mm | 2000kg |
| HG-B30T/48" |
30
T
ons
|
1950*1320*1260mm | 610*1220mm | 2.2kw | 50-240mm | 1900kg |
| HG-a40T/63" |
40
T
ons
|
2330*1320*1260mm | 610*1600mm | 4kw | 50-160mm | 2500kg |
| HG-B40T/48" | 40 Tons | 1950*1320*1260mm | 610*1220mm | 4kw | 50-240mm | 2400kg |
| HG-a50T/63" | 50 Tons | 2330*1320*1260mm | 610*1600mm | 4kw | 50-160mm | 2900kg |
| HG-B50T/48" | 50 Tons | 1950*1320*1260mm | 610*1220mm | 4kw | 50-240mm | 2800kg |
2. Features and Advantages cutting machine
|
Features and Advantages |
||||||
| 1.Double-cylinders,four-columns,self-balancing connecting rod which can maintain equal pressure of each position. | ||||||
| 2.Series B machine has the long-stroke setting for adopt to the jumbo-size materials and high knife mould cutting. | ||||||
| 3.When the upper board pressure down and contact to the blade,automatically,it can cut slowly,so that there is no size error between the top and the bottom materials. | ||||||
| 4.The unique setting construction,combine with the cutting knife and cutting height which stroke simple and accurate. | ||||||
| 5.Central automatic lubrication systems can ensure precision and durability of the machine. | ||||||
| 6.More economical and 2 or 3 times improving producting capacity. |
What Working-show of our hydraulic press machine?
1. the cutting press Working Show
2. the cutting-dies cutting machine
>>> Click here to konw more Dies
…………………………………………
If you are interested in our products, Please Click here !!
to send us a message
We have someone who tell you Solutions Products.
………………………………………
What Applications of our hydraulic press machine?
Application Materials:
The Cutting Press Machine is widely used in industrial leather,plastic,rubber,sponge,foam,EVA,PVC,cardboard,paper products,fabric,home textiles,packaging materials,non woven,carpet,car cushion,felt,synthetic materials,and other non-metallic materials in various industries;Extremely suitable for cutting multiple layers of material at one time,
etc.
Trade Terms:
Trade term:FOB,CIF,EXW
Payment terms:T/T,Westem Union,PayPal,Escow,MoneyGram.
Payment Condition:30% deposit in advance. 70% balance before delivery.
Delivery time:5-15days working days after deposit.
Packing:Wooden case with plate.
Shipment:By Sea.
Our Certifications
1. We are a factory, and the price is favorable.
2. We have strict QC system.
3. We offer a free after-sales service for 1.5 years.
4. Our engineers are available to service machinery overseas.
5. Our machines have been sold to over 40 countries .
