The heater part of the PTC heater assembly is located in the lower part of the heater and takes advantage of the properties of the
PTC sheet for heating. The heater is energised by high voltage, the PTC sheet generates heat, which is transferred to the heat
sink aluminium strip, and then a blower blows across the surface of the heater, taking away the heat and blowing out warm air. The
heater has a compact structure and a reasonable layout to maximise the efficiency of the heater space, and the design takes into
account the safety, water resistance and assembly process of the heater to ensure that the heater can operate normally.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
NF
-
Car Model:
-
car/truck/minibus/boat
-
Power(kW):
-
3.5
-
Voltage(V):
-
333V
-
Wind speed:
-
Through 4.5m/s
-
Voltage resistance:
-
1500V/1min/5mA
-
Insulation resistance:
-
≥50MΩ
-
Communication methods:
-
CAN
-
Weight(KG):
-
2.7
-
MOQ:
-
1
-
Quality:
-
High-Quality
-
Brand:
-
NF
Quick Details
-
OE NO.:
-
OEM
-
Warranty:
-
one year
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
NF
-
Car Model:
-
car/truck/minibus/boat
-
Power(kW):
-
3.5
-
Voltage(V):
-
333V
-
Wind speed:
-
Through 4.5m/s
-
Voltage resistance:
-
1500V/1min/5mA
-
Insulation resistance:
-
≥50MΩ
-
Communication methods:
-
CAN
-
Weight(KG):
-
2.7
-
MOQ:
-
1
-
Quality:
-
High-Quality
-
Brand:
-
NF
Product Description

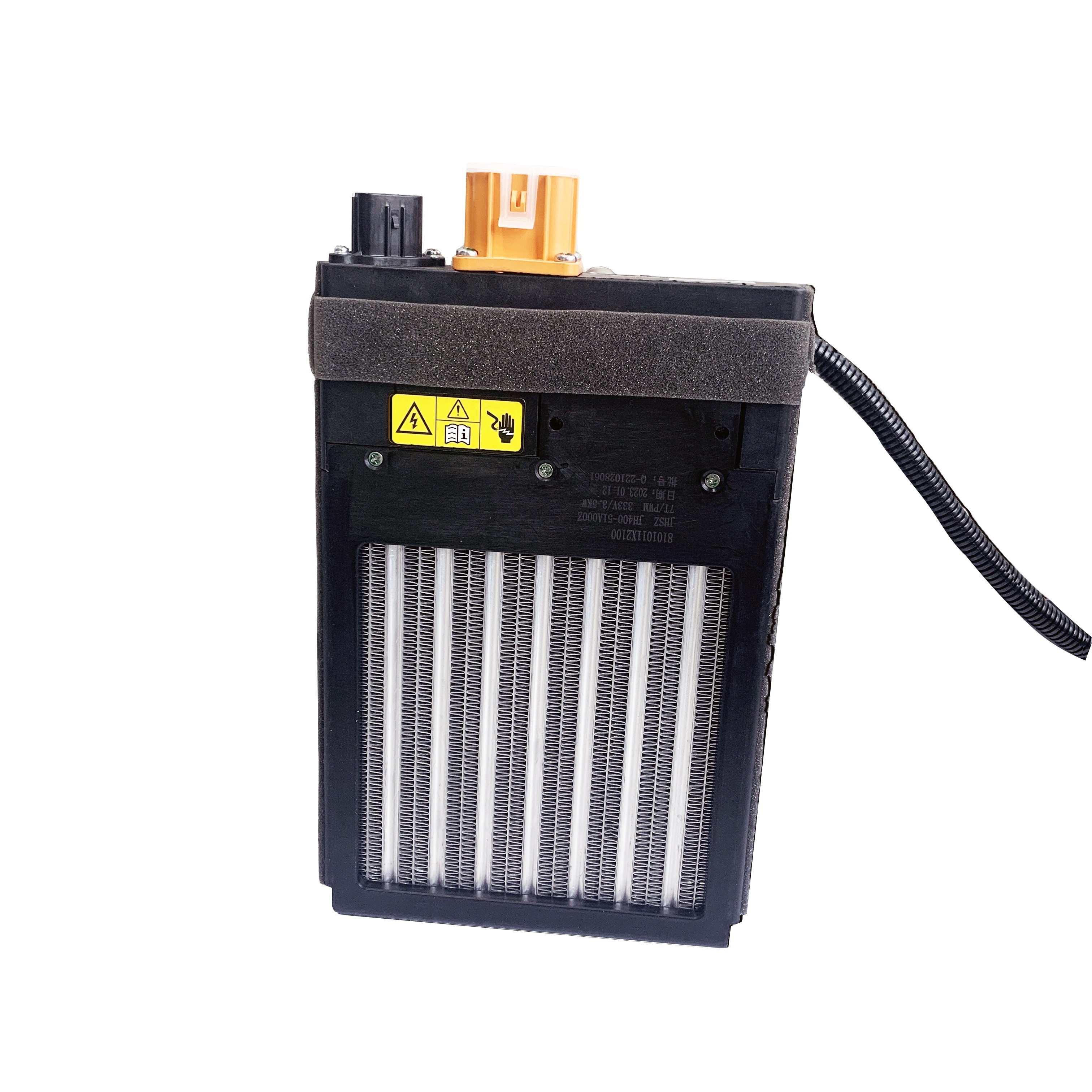

PTC Air Heater
Power battery as the main power source of new energy vehicles, its importance to new energy vehicles is self-evident. In the process of actual vehicle use, the battery will face complex and changing conditions. In order to improve the range, the vehicle needs to arrange as many cells as possible in a certain space, so the space of the battery pack on the vehicle is very limited. The battery generates a lot of heat during the operation of the vehicle and accumulates in a relatively small space over time. The temperature of the power battery has a significant impact on its performance, life and safety. Battery thermal management system is one of the important functions in BMS, mainly to keep the battery pack in a suitable temperature range to maintain the best working condition. PTC heater is most widely applied to electric vehicle today for defrosting and air heating. Compared to traditional heater, it is safer and more reliable because the self-regulating PTC element will not be damaged without air flow.
The PTC air heater assembly is used in electric vehicles. It adopts an integrated structure and integrates the controller and PTC heater. The PTC air heater uses electricity as the energy source and the PTC heating element as the heating core.
By heating the antifreeze, the evaporator is used to provide warm air to the interior of the vehicles, the warm air is soft and comfortable, the temperature is stable and moderate and safe to use, energy-saving and efficient.
By heating the antifreeze, the evaporator is used to provide warm air to the interior of the vehicles, the warm air is soft and comfortable, the temperature is stable and moderate and safe to use, energy-saving and efficient.
PTC Air Heater
Main technical parameters
|
Rated Voltage
|
333V
|
|
Power
|
3.5KW
|
|
Wind speed
|
Through 4.5m/s
|
|
Voltage resistance
|
1500V/1min/5mA
|
|
Insulation resistance
|
≥50MΩ
|
|
Communication methods
|
CAN
|
Depending on the heating method of the PTC heater, there are two types of PTC heaters: the type that directly heats the air and
the type that heats the circulation system of electric vehicles.
Here we will look at the characteristics of these two heating methods.
|
|
PTC Air Heater
|
PTC Coolant Heater
|
|
Advantages
|
1. Low price
2. The actual heating power of the cabin is easy to control |
1. High-power electric heater can be designed
2. It can meet the needs of battery and cabin plus in the same circuit 3. Hot air is mild 4. Can be powered by high voltage, higher efficiency |
|
Disadvantages
|
1.The power is low
2. Can only be used for cabin heating 3.Overheating wind occurs due to uneven heating of the resistance wire 4. It is not suitable to use high voltage |
1. The price is higher
2. The heat generated by the electricity does not match the actual heating of the cabin, and it is slightly difficult to control |
