Quick Details
-
Brand Name:
-
huada
-
Voltage:
-
220V/380v
-
Blade material:
-
aluminum alloy
-
Fan Diameter:
-
16 ft/5m
-
Air volume:
-
10000 m³/min
-
Motor:
-
permanent magnet
-
Noise:
-
<38 dB
-
Blade:
-
5 pcs
-
Speed:
-
80rpm
-
Coverage Area:
-
500 m²
-
Effective area:
-
300m²
-
Application:
-
farm,church,logistic center,workshops
Quick Details
-
Mounting:
-
Ceiling Fan
-
Power:
-
0.75KW
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
huada
-
Voltage:
-
220V/380v
-
Blade material:
-
aluminum alloy
-
Fan Diameter:
-
16 ft/5m
-
Air volume:
-
10000 m³/min
-
Motor:
-
permanent magnet
-
Noise:
-
<38 dB
-
Blade:
-
5 pcs
-
Speed:
-
80rpm
-
Coverage Area:
-
500 m²
-
Effective area:
-
300m²
-
Application:
-
farm,church,logistic center,workshops

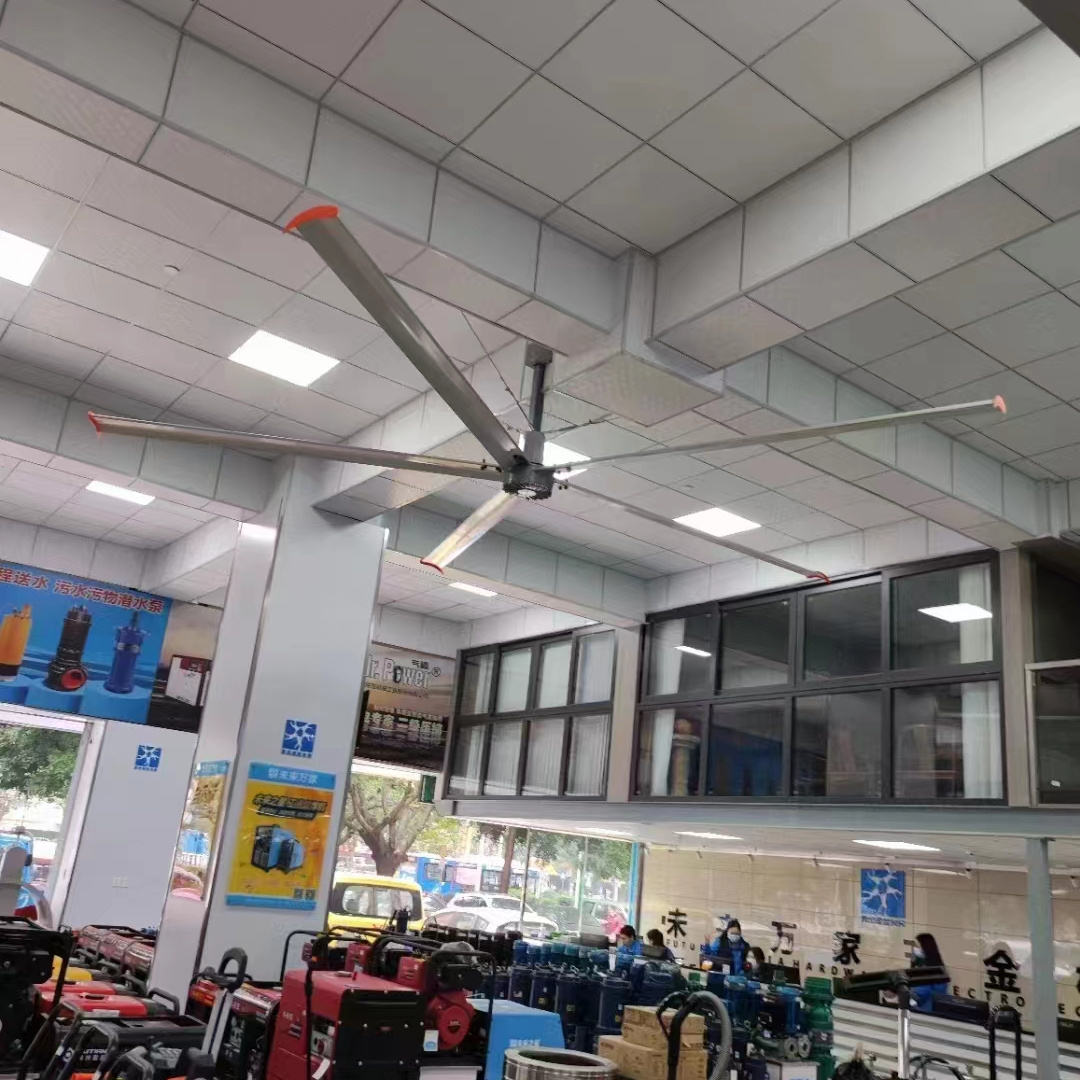

HVLS Large ceiling fan
It is specially developed for energy saving and improving the comfort of working environment.It is driven by a self-designed permanent magnet motor.With:small size,light weight,high efficiency and energy saving,low noise,frequency control,compact structure,beautiful appearance and other characteristics.
Application cases
:Widely used in
industrial plants,logistics storage,waiting rooms,exhibition halls,gymnasiums,supermarkets and other large space places
,as a new type of ceiling fan for space ventilation and personnel cooling.It can push a large mount of airflow to the ground,forming a certain height of airflow layer movement on the ground,thus contributing to the overall air circulation,which is similar to the nature's breeze system,enjoying the intimate experience of natural wind.
Fan range
:3m,3.7m,4.3m,5m,6.1m,6.7m,7.3m
PMSM Fan motor
: 0.37kw,0.75kw,1.1kw,1.5kw
Detailed Description
Direct Drive Motor System
The new self-developed external rotor motor with large torque and permanent magnet synchronization replaces the traditional motor+gearbox reducer, achieving a high degree of integration and improving reliability and transmission efficiency.Aluminium alloy material is adopted in many parts to realize the lightweight design.
Fan Blade
It is made of aluminium and magnesium alloy extruded and stretched, and has the advantages of high strength, good toughness,
lightweight, long life and safe operation. The fan blade surface is treated with T5+ bright surface oxidation treatment, which
enhances the corrosion and oxidation resistance of the fan blade and can cope with special environmental operations.Energy saving tail.
lightweight, long life and safe operation. The fan blade surface is treated with T5+ bright surface oxidation treatment, which
enhances the corrosion and oxidation resistance of the fan blade and can cope with special environmental operations.Energy saving tail.
Smart control system
1 small size, lightweight, beautiful
appearance.
2 The system function is simple, 4 buttons easy to operation( start, stop, speed up, slow down).reversal for option
appearance.
2 The system function is simple, 4 buttons easy to operation( start, stop, speed up, slow down).reversal for option
Tech Data
|
Model
|
HDS-3.0
|
HDS-3.7
|
HDS-4.3
|
HDS-5.0
|
HDS-6.1
|
HDS-6.7
|
HDS-7.3
|
HDS-6.7
|
HDS-7.3
|
|||||||
|
Diameter
|
3m
|
3.7m
|
4.3m
|
5m
|
6.1m
|
6.7m
|
7.3m
|
6.7m
|
7.3m
|
|||||||
|
Power
|
0.37kw
|
0.37kw
|
0.75kw
|
0.75kw
|
1.1kw
|
1.1kw
|
1.1kw
|
1.5kw
|
1.5kw
|
|||||||
|
Diameter(ft)
|
10
|
12
|
14
|
16
|
20
|
22
|
24
|
22
|
24
|
|||||||
|
Voltage
|
220v/380v
|
|
|
|
220v/380v
|
|
|
|
|
|||||||
|
Frequency
|
50Hz/60Hz
|
|
|
|
50Hz/60Hz
|
|
|
|
|
|||||||
|
Air Volume
|
4000m³/min
|
5000m³/min
|
7000m³/min
|
10000m³/min
|
11500m³/min
|
12000m³/min
|
13000m³/min
|
14000m³/min
|
15000m³/min
|
|||||||
|
Speed
|
≤120rpm
|
≤100rpm
|
≤90rpm
|
≤80rpm
|
≤65rpm
|
≤60rpm
|
≤55rpm
|
≤65rpm
|
≤55rpm
|
|||||||
|
Blades
|
5pcs
|
5pcs
|
5pcs
|
5pcs
|
6pcs
|
6pcs
|
6pcs
|
6pcs
|
6pcs
|
|||||||
|
Blades width
|
180mm
|
180mm
|
180mm
|
180mm
|
180mm
|
180mm
|
180mm
|
200mm
|
200mm
|
|||||||
|
Noise
|
38dB
|
|
|
|
38dB
|
|
|
|
|
|||||||
|
Weight
|
35kg
|
38kg
|
46kg
|
49kg
|
103kg
|
107kg
|
111kg
|
118kg
|
122kg
|
|||||||
|
Coverage size
|
8-12m
|
9-14m
|
12-18m
|
12-20m
|
20-25m
|
20-28m
|
20-28m
|
20-35m
|
20-35m
|
|||||||
|
Effective Area
|
150㎡
|
230㎡
|
256㎡
|
300㎡
|
600㎡
|
650㎡
|
700㎡
|
750㎡
|
850㎡
|
|||||||
|
Coverage Area
|
250㎡
|
380㎡
|
450㎡
|
500㎡
|
1000㎡
|
1300㎡
|
1500㎡
|
1600㎡
|
1700㎡
|
|||||||
|
Above ground
|
4-5m
|
4-5m
|
4-6m
|
5-6.5m
|
8-10m
|
7-12m
|
6-9m
|
8-14m
|
7-12m
|
|||||||
|
Protection class
|
IP66
|
IP66
|
IP66
|
IP66
|
IP66
|
IP66
|
IP66
|
IP66
|
IP66
|
|||||||
|
Permanent magnet internal and external rotation comparison
|
|
|
|
|
||
|
|
internal rotor
|
outer rotor (our motor)
|
|
|
||
|
Torque
|
Small diameter，small moment of inertia，high KV value，low torque
|
large diameter，big moment of inertia，low KV value，high torque
|
|
|
||
|
Speed
|
small diameter，small moment of inertia，high KV value，high speed
|
large diameter，big moment of inertia，low KV value，low speed
|
|
|
||
|
Number of poles
|
Small rotor surface area
, can design a few poles, generally 16 poles
|
Large rotor surface area
, can design more poles, generally more than 52 poles
|
|
|
||
|
Construction of winding
|
Fewer winding poles,higher temperature rise
|
large winding poles,low temperature rise
|
|
|
||
|
Heat dissipation
|
Inner rotor motor operates at low frequency,the winding has high calorific value
|
The outer rotor motor runs at regular frequency and the winding heat is low
|
|
|
||
|
Demagnetization
|
Magnetic steel is embedded, in the winding heating source, poor heat dissipation, easy to lead to slow demagnetization.
|
The magnetic steel is embedded in the inner ring of the casing, with a large heat dissipation area, and in the outermost ring of
the casing, the heat dissipation effect is the best, the temperature resistance of the magnetic steel and the actual temperature
difference of more than 60 degrees, there is enough margin, so as to ensure the absolute life of the magnetic steel.
|
|
|
||
|
Magnetic steel fixation
mode
|
embedded
|
With special magnetic steel track card slot, Mosaic fixed, add special glue paste on the outer wall of the housing, so as to
ensure that the magnetic steel firm and never fall off
|
|
|
||
|
Difficulty of winding maintenance
|
Notch inward,professional tools for maintanence，high difficulty
|
Notch outward,
No need for professional tools,
Low repair difficulty
|
|
|
||
|
Cost
|
General
|
Higher
|
|
|
||
|
|
|
|
|
|
||
|
|
Inner rotor ceiling fan
|
Outer rotor ceiling fan (our fans)
|
|
|
||
|
Stability
|
The motor shaft end need to be installed with the shaft skeeve and impeller disc,then mount the fan blades.High center of gravity,
impeller overall flat
Poor balance (maximum force from blade tail)
|
The blade support is mounted directly on the housing.when the motor housing is running ,the motor movement is static Higher
stability, larger contact surface, low center of gravity, the overall balance of the machine is the best (maximum force from the
blade tail)
|
|
|
||
|
Ceiling fan Force
|
Using a smaller shaft, the entire blade group is completely fixed by a bolt or clamp
|
Adopt large motor shaft, motor shaft is made of high strength and toughness steel, can withstand great gravity and torsion force)
|
|
|
||
|
safety protection
|
The wire rope only has traction motor part, and the fan blade part is a separate part, so the whole fan blade group cannot be
protected safely
|
Wire rope pulls the whole ceiling fan, and the whole machine is protected safely (Our fan also has a third shaft protection
against breaking
|
|
|
||
|
Output
|
The inner rotor needs good heat dissipation, such as adding a fan)
|
Under the same volume, the outer rotor has a larger torque output and power output so that it can drive a larger air volume
|
|
|
||
|
Heat dissipation of motor by ceiling fan
|
The ceiling fan speed is low and the inner ring air volume is less, it does not help the motor heat dissipation much.
|
The ceiling fan motor is natural heat dissipation, so the bigger the motor surface is, the better the heat dissipation is.
|
|
|
||
Installation Instruction
1.Construction Structure:
H-type steel,I-type steel,steel mixed square beam,
ball column type,etc.
2.Total building height requirement greater than
4m
3.The blade is at least
0.2m
from the barrier.
Packing & Delivery
Packing way
:
One set of ceiling fan is packed by two plywood case,one is for blades, the other is for motor,controller and installation spare parts
Company Introduction
Fujian Huada Electric Co. Ltd.,Founded in 1998, locates in Fu'an, Fujian-the city of small and medium electrical machines. Covering 20,000 square meters and population is over 200 workers. Having R&D,production, sales and after-sales departments.we are a modern enterprise. Well-equipped with production lines and testing machines of motor and fans,we're advanced in manufacturing and management in our area. Besides,our R&D team is very strong. We cooperate with academic institutions and have many intellectual properties. Mostly, we can customize all kinds of special fans for customers.
Fujian Huada Electric Co. Ltd.,is a famous manufacturer for fans and high temperature motors in China.Have passed the ISO9001:2008 certification,CE cert.,CCC cert. and so on.We have Three Invention patents, eleven utility-model patents and TWO design patents.Was name"Technology Enterprise of Fujian province" in 2003.All of our products sell all over the world with good reputation and reliablity.On 2009,"GKF" series was selected a standard products by China administration of tobacco.
FAQ
1. who are we?
We are based in Fujian, China, start from 2007,sell to Mid East(50.00%),Eastern Asia(14.00%),Southeast Asia(13.00%),North America(10.00%),South America(8.00%),Eastern Europe(5.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
High temperature electrical machinery,High temperature motor,axial fan,drying equipment,high temperature fan
4. why should you buy from us not from other suppliers?
Fujian Huada Electric Co., Ltd focus on high temperature fan for more than 10years. Have passed the ISO9001;CE;CCC cert., Got 3 Invention patents,11 utility-model patents and 2 design patents."GKF" was selected a standard products by China tobacco.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union;
Language Spoken:English,Chinese
We are based in Fujian, China, start from 2007,sell to Mid East(50.00%),Eastern Asia(14.00%),Southeast Asia(13.00%),North America(10.00%),South America(8.00%),Eastern Europe(5.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
High temperature electrical machinery,High temperature motor,axial fan,drying equipment,high temperature fan
4. why should you buy from us not from other suppliers?
Fujian Huada Electric Co., Ltd focus on high temperature fan for more than 10years. Have passed the ISO9001;CE;CCC cert., Got 3 Invention patents,11 utility-model patents and 2 design patents."GKF" was selected a standard products by China tobacco.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union;
Language Spoken:English,Chinese
