- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
ShuaiYi
-
Model Number:
-
SY-96885
-
Size:
-
180*85*245mm
-
Type:
-
Universal
-
Static elimination time:
-
≤ 1.5S (300mm from the front of the fan)
-
Voltage:
-
110V/220V
-
Consumption current:
-
0.25A or 0.12A
-
Air volume:
-
45-110M
-
Noise:
-
49DB minimum 59DB maximum
-
Air flow area:
-
40*60cm
-
Customizable:
-
Yes
Quick Details
-
Application:
-
Air Blower
-
Pressure:
-
Low Pressure
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ShuaiYi
-
Model Number:
-
SY-96885
-
Size:
-
180*85*245mm
-
Type:
-
Universal
-
Static elimination time:
-
≤ 1.5S (300mm from the front of the fan)
-
Voltage:
-
110V/220V
-
Consumption current:
-
0.25A or 0.12A
-
Air volume:
-
45-110M
-
Noise:
-
49DB minimum 59DB maximum
-
Air flow area:
-
40*60cm
-
Customizable:
-
Yes

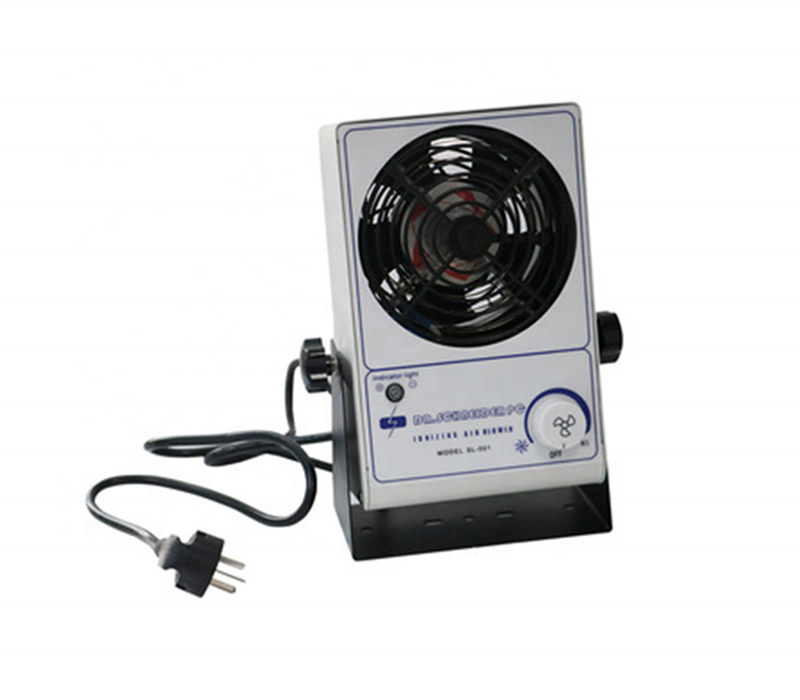

Ionizing blower
Parameter | |
Overall dimensions | 180*85*245mm |
Weight | about 2.7KG |
Operating voltage | 110V / 60HZ or 220V / 50HZ |
Consumption current | 0.25A or 0.12A |
Air volume | 45-110M |
Operating temperature | 0-50 ℃ |
Noise | 49DB minimum 59DB maximum |
Ion balance | ≤ ± 12V |
Air flow area | 40 × 60cm |
Residual voltage | 0 ± 10V (300mm from the front of the fan) |
Static elimination time | ≤ 1.5S (300mm from the front of the fan) |
C ustomizable | Logo |
Principle of action
The Ionizing blower can generate a large amount of air current with positive and negative charges, which can neutralize the charge on the object. When the surface of the object is negatively charged, it will attract the positive charge in the air flow. When it is positively charged, it will attract negative charges in the airflow, so that the static electricity on the surface of the object is neutralized, and the purpose of eliminating static electricity is achieved.
Features:
1. Neutralize ions quickly
2.Ion air flow covers a large area
3.Wide wind adjustment range
4.There is a special ion emission cleaner
5.Has a special cold air heating device
6.Ionization indicator
7.The fan has good ground protection
8.Ion balance voltage is stable
Instructions
Turn the governor switch clockwise until the indicator light is on to turn on the fan, generate ion airflow, increase the fan's wind speed, you can rotate the speed control switch counterclockwise, adjust to the "off" position indicator light is off, indicating that the fan is off.
Application:
It is mainly used to eliminate static electricity. To solve the damage caused by static electricity to electronic products, the problem of dust collection caused by static electricity, the problem of product adhesion caused by static electricity, and the problem of small parts jumping caused by electrostatic repulsion. Widely used in the electronics industry, LED optoelectronics, semiconductors, small parts processing, pharmaceutical manufacturing, printing, packaging, plastic spraying, plastic release, plastic film cutting, circles and coatings, etc.
* Static elimination time complies with ESD standard. Static elimination time is measured from 500V-500V
* The test instrument uses ME268A static comprehensive tester, and the test results are standard
* Test data may vary due to changes in ambient air temperature
