- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Tractor
-
Main market:
-
More Than 120 Countries and Regions Around The World
-
Certificate:
-
ISO9001 ,CCC,DOT,CE,CIQ,REACH,VOC etc
-
Rubber:
-
Malaysia & Thailand top-quality Natural and synthetic rubber
-
More size:
-
9.5-22 13.6-24 12.4-24 12-38 11.2-38 11-32 14.9-24
-
OEM Brand:
-
Acceptable
-
Inspection:
-
100% full quality inspect
-
Technology:
-
Japan Technology
-
Ply rating:
-
10/12
Quick Details
-
Weight (KG):
-
70 KG
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GOLDFINCH
-
Application:
-
Tractor
-
Main market:
-
More Than 120 Countries and Regions Around The World
-
Certificate:
-
ISO9001 ,CCC,DOT,CE,CIQ,REACH,VOC etc
-
Rubber:
-
Malaysia & Thailand top-quality Natural and synthetic rubber
-
More size:
-
9.5-22 13.6-24 12.4-24 12-38 11.2-38 11-32 14.9-24
-
OEM Brand:
-
Acceptable
-
Inspection:
-
100% full quality inspect
-
Technology:
-
Japan Technology
-
Ply rating:
-
10/12
Product Description

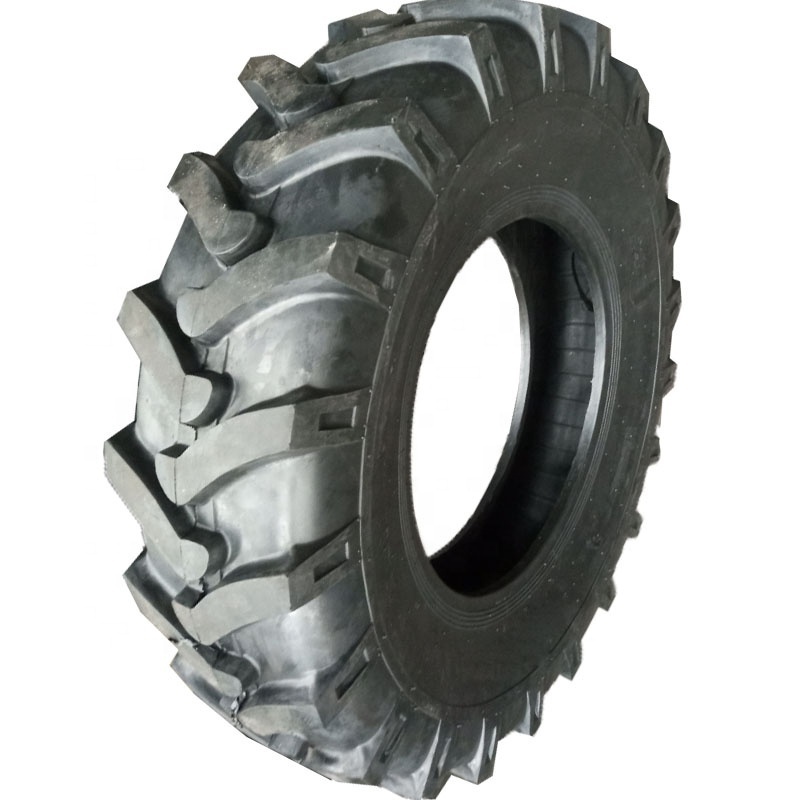

* Agricultural tire/Tractor tire:6.00-12 6.00-14 5.00-8 5.00-10 9.5-22 9.5-24 11-32 11.2-24
12-38 12.4-28 13.6-24 13.6-28 14.00-38 14.9-24 etc.
* The traction tyre tyre endows with a good drive power and hold power .
* Suitable to tractors ,seeders,culvators operating on soft and nuddy ground.
* With extremely stong traction,good self-cleaning and wide reas pattern prociders good floating,and excellent drive properties on muddy cultivated land .
| size | standard Rim | Section Width(mm) | Overall Diamater(mm) | Max Load (kga) | Pressure (kpa) |
| 4.00-12 | 3.00D | 110 | 535 | 320 | 250 |
| 4.00-14 | 3.00D | 110 | 590 | 400 | 340 |
| 4.00-15 | 3.00D | 110 | 610 | 420 | 340 |
| 4.00-16 | 3.00D | 110 | 640 | 450 | 340 |
| 4.00-19 | 3.00D | 110 | 710 | 480 | 340 |
| 5.00-15 | 4.00J | 140 | 665 | 465 | 340 |
| 6.50-16 | 4.50E | 170 | 760 | 630 | 340 |
| 6.00-19 | 4.50E | 160 | 830 | 750 | 340 |
| 9.5-22 | W8 | 2400 | 970 | 1000 | 210 |
| 13.6-28 | W12 | 345 | 1565 | 1950 | 200 |
| 18.4-26 | DW16 | 467 | 1450 | 2645 | 180 |
| 18.4-38 | W16L | 467 | 1755 | 3165 | 180 |
| 13.6-38 | W12 | 345 | 1565 | 1950 | 200 |
| 14.9-28 | W13 | 378 | 1365 | 1940 | 230 |
| 12-38 | W11 | 315 | 1515 | 1570 | 230 |
We are Alibaba.com Gold Plus Supplier !
Packing & shipping
* Packing:Standard Export Package or As Customer Request.
* Shipping: by sea , by train or by air ,from Qingdao port .
* Trade Terms: FOB,CFR,CIF etc.
* Payment terms: T/T, L/C,Western Union etc.
* Delivery time: Within 7-15 days after deposit .
Why Choose US ?
* We have professional team to provide comprehensive one -stop service for you .
* Our tyres have passed the Certificates: ISO9001,DOT,CE, REACH etc.
* OEM/ODM Service to satisfy different customers requirments.
* We have first-class production line and strict quality management system.
* We have big production capacity to guarantee fast delivery and on-time shipment
Buyers praise
FAQ
1. How to maintain proper air pressure?
* Tyres should be inflated according to current national standards stipulated in the form of air
pressure & loading index.
* After inflation tyre should be checked carefully for leak or not,If leak found shall be repaired
in time.
* Tyres in use must be ensured of normal internal air pressure,When long-running or driving,tyre
pressure should be regularly checked.
* Long-stay parking, front and rear axles must be set up. High pressure causes crown grinding,
top bursting; low pressure makes tyre deformation and damage.
* Twin tyres fitted must be assured of consistent inflation pressure, do not fit one by a higher
pressure and another by lower air pressure.
2. How to maintain proper loading?
*
Tyre loads must comply with current national standards.
*
Do not overloading. Loading goods in vehicles should be distributed evenly to avoid uneven
load.
* Overloading can cause serious abnormal tyre tread wear,shoulder separation, delaminating, toe
blasting etc.
*
High ply level and high tyres load index not suitable high-speed driving.
* Enhanced design tyres can loaded more properly according to standards of design.
3. How to maintain proper speed?
*
Different limits of speed levels with all kinds of tyres, speeding may cause early tyre damage.
*
Do not speeding, minimize urgent braking and sharp turns in bad road, avoiding of the tyre’s
hitting other objects, especially sharp objects.
*
High speed tyres will be heated up easily, once its temperature is too high, measures should be
taken timely(e.g.stopping for natural cooling) to prevent the carcass bursting.
*
High-speed tyres assembled with rims must be tested for balancing weight and calibration.
4. How to maintain proper storage?
* Tyres should be stored in the warehouse avoiding the sunning and raining.
* Tyre must be in storage away from heat, ozone, and generator.
* Tyres must not be not in storage together with oil, flammable and corrosive chemical materials.
* Tyres shall be in storage upright, do not keep it horizontally,pilling up one on top of hanging it by
center hole.
* Tyre should be used firstly in order of first out from production or storage.
5. How to pack and transport properly?
* When handling tyre by forklift,do it from side tyres,do not lift it with fork into the center hole of
bead.
* Do not hang or raise tyres by rope, hook or fork directly, do it with wide textile fiber belt.
* Sets of tyres shall be wrapped or packed by rope or packing tape for avoiding damage of falling.
* Loading goods must be properly distributed into vehicles.
6. How to do the assembly properly?
* Tyres must be fitted to the proper models of vehicles and the wheel, installation and removal of
tyres with specialized tools and equipments, any violent prying and hitting prohibited.
* Tyres on the same axle must be the same structure, size, pattern and ply.
* Never install bias tyres and radial tyres together.
* Directions of tyres funning must be kept consistent to the vehicle when assembly directional
tyres.
* Keep chains equipped in tyres symmetrical. If not uninstall it immediately.
