- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
OEM
-
Use:
-
Enterprise
-
Product name:
-
4X1 KVM Switcher
-
Output:
-
VGA+USB 1port
-
Input:
-
VGA+USB 4 port
Quick Details
-
Type:
-
Enterprise Switch
-
Model Number:
-
AB1104N
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
OEM
-
Use:
-
Enterprise
-
Product name:
-
4X1 KVM Switcher
-
Output:
-
VGA+USB 1port
-
Input:
-
VGA+USB 4 port
Product Paramenters
|
Port connector
|
Hybrid VGA
|
|
Number of ports
|
four
|
|
Control Port Type
|
PS/2 or USB
|
|
Longest distance
|
16 feet (5 meters)
|
|
(KVM switch - controlled end)
|
|
|
Image resolution (local control end)
|
1920 x 1440
|
|
Upgrade Port
|
DC2.5F
|
|
cascade
|
Connector DB15 (female)
|
|
|
Supports cascading to eight layers
|
|
Computer selection
|
Screen menus, hotkeys, buttons
|
|
Hotkeys
|
Provide multiple hotkeys (Scroll Lock/Caps Lock/Num Lock/Alt/Ctrl/Win)
|
|
Computer Port Light Number
|
2 light numbers per port: ON LINE (yellow), SATATION (red)
|
|
Security
|
Provide security function for allowing control lists, which can save 8 independent control computer lists for users
|
|
Multi language screen menu
|
8 languages (English, French, German, Spanish, Italian, Russian, Japanese, and Simplified Chinese)
|
|
Automatic scanning time interval
|
5-99 seconds
|
|
Keyboard simulation
|
USB
|
|
Mouse simulation
|
USB
|
|
Maximum number of computer connections
|
Up to 128 computers (16 port model X 8 layers)
|
|
Shell material
|
Iron shell
|
|
DC power supply
|
12V, 1A
|
|
Operating temperature
|
0~50 ° C
|
|
Storage temperature
|
-20~60 ° C
|
|
humidity
|
0~80%, no condensation
|
|
mechanism
|
19 inch rack mounted, 1U
|
|
Size (mm)
|
444.5 x 190 x 44
|

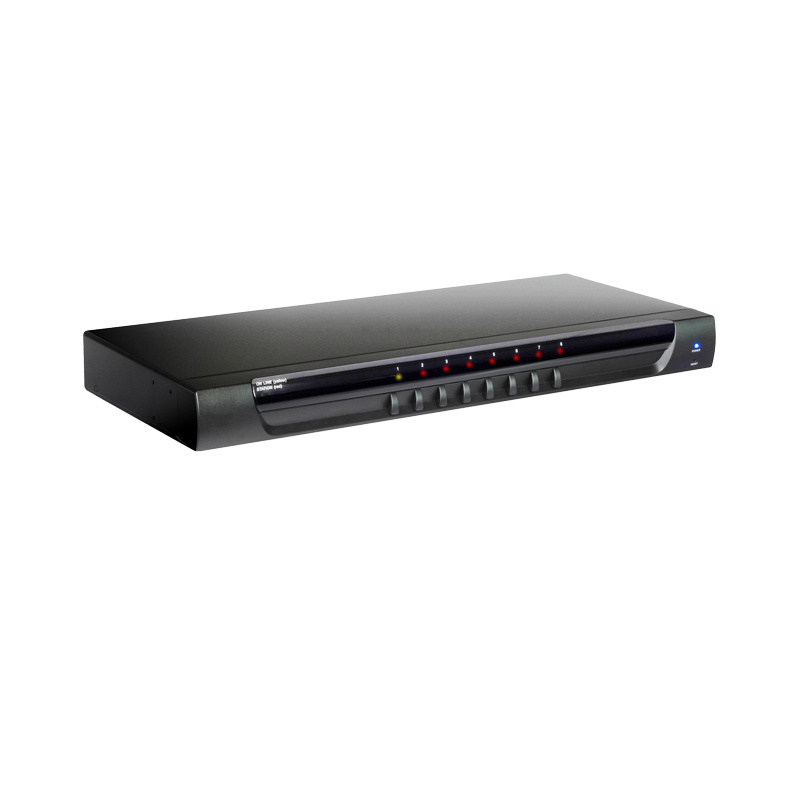

Details Images
