Quick Details
-
Mounting Type:
-
screw fixationtype
-
Description:
-

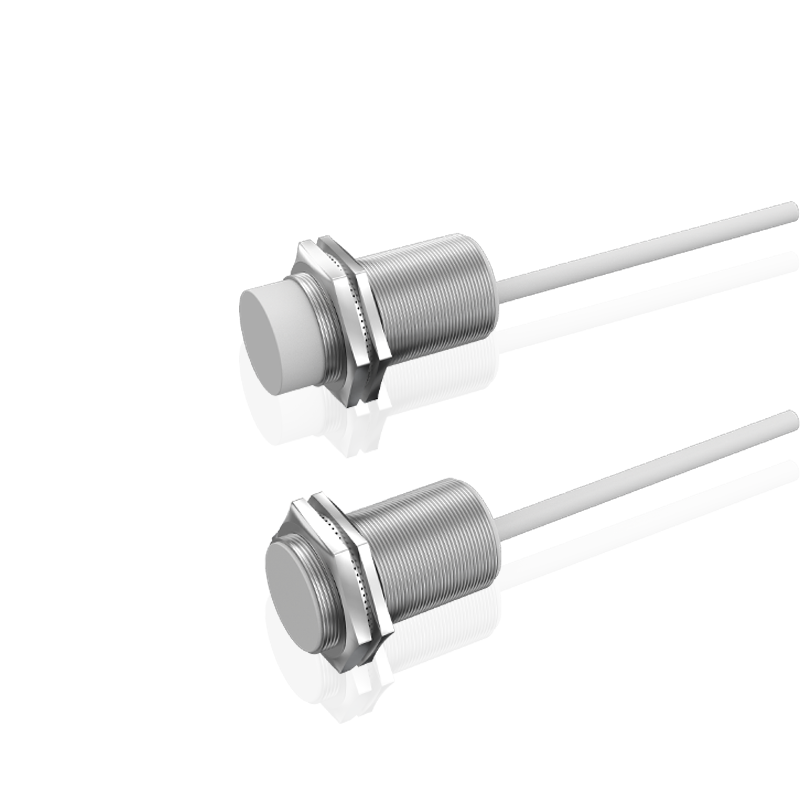

proximity switch;visible;Nonmetallic object, CR30 Capacitive sensor
-
Model Number:
-
CR30 Capacitive type
-
Type:
-
Capacitive Sensor
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CHBG
-
Theory:
-
self-induced
-
Output:
-
NPN,PNP,D,A,G
-
Response divergence:
-
<20% detect distance
-
Detectable object:
-
50*50*1mm iron
-
operating voltage:
-
10-30VDC
-
leak current:
-
≤2.2mA,AC
-
operating frequency:
-
150Hz(DC)25Hz(DC)
-
load current:
-
200mA
-
Protection type:
-
Overload, reverse connection
-
display:
-
Red LED
-
operating temperature:
-
-20~+70℃
-
canning material:
-
PBT
Quick Details
-
Use:
-
Nonmetallic object sensing
-
Series:
-
CR Capacitive type
-
Features:
-
LED display condition;visible;Nonmetallic object
-
Mounting Type:
-
screw fixationtype
-
Description:
-
proximity switch;visible;Nonmetallic object, CR30 Capacitive sensor
-
Model Number:
-
CR30 Capacitive type
-
Type:
-
Capacitive Sensor
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CHBG
-
Theory:
-
self-induced
-
Output:
-
NPN,PNP,D,A,G
-
Response divergence:
-
<20% detect distance
-
Detectable object:
-
50*50*1mm iron
-
operating voltage:
-
10-30VDC
-
leak current:
-
≤2.2mA,AC
-
operating frequency:
-
150Hz(DC)25Hz(DC)
-
load current:
-
200mA
-
Protection type:
-
Overload, reverse connection
-
display:
-
Red LED
-
operating temperature:
-
-20~+70℃
-
canning material:
-
PBT
Related Products
Product Description
|
model
|
shape
|
diameter
|
detection distance
|
output mode
|
signal mode
|
|
CR30-20N1
|
Cylindrical
|
30MM
|
Non-buried：20MM
|
NPN.NO
|
Normally open
Normally closed One open one closed |
|
CR30-20N2
|
Cylindrical
|
30MM
|
Non-buried：20MM
|
NPN.NC
|
Normally open
Normally closed One open one closed |
|
CR30-20N3
|
Cylindrical
|
30MM
|
Non-buried：20MM
|
NPN.NO+NC
|
Normally open
Normally closed One open one closed |
|
CR30-20P1
|
Cylindrical
|
30MM
|
Non-buried：20MM
|
PNP.NO
|
Normally open
Normally closed One open one closed |
|
CR30-20P2
|
Cylindrical
|
30MM
|
Non-buried：20MM
|
PNP.NC
|
Normally open
Normally closed One open one closed |
|
CR30-20P3
|
Cylindrical
|
30MM
|
Non-buried：20MM
|
PNP.NO+NC
|
Normally open
Normally closed One open one closed |
|
CR30-20A1
|
Cylindrical
|
30MM
|
Non-buried：20MM
|
Dc two-wire. NO
|
Normally open
Normally closed One open one closed |
|
CR30-20A2
|
Cylindrical
|
30MM
|
Non-buried：20MM
|
Dc two-wire. NC
|
Normally open
Normally closed One open one closed |
|
CR30-20A3
|
Cylindrical
|
30MM
|
Non-buried：20MM
|
Dc two-wire. NO+NC
|
Normally open
Normally closed One open one closed |
