- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
JVRD-380W
-
Function:
-
Phase sequence, phase loss, overvoltage, undervoltage, phase unbalance
-
Features:
-
Adjustable voltage
-
Indicators:
-
5LEDS
-
Rated Voltage:
-
AC220V 380V 440V 460V 480V
-
Output Contact:
-
2C/O
-
Contact Capacity:
-
6A 250VAC
-
Mounting:
-
Din Rail
-
Guarantee:
-
18months
-
Certifications:
-
CE CCC ISO9000
-
MOQ:
-
1PCS
Quick Details
-
Contact Load:
-
High Power
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GINRI OEM ODM
-
Model Number:
-
JVRD-380W
-
Function:
-
Phase sequence, phase loss, overvoltage, undervoltage, phase unbalance
-
Features:
-
Adjustable voltage
-
Indicators:
-
5LEDS
-
Rated Voltage:
-
AC220V 380V 440V 460V 480V
-
Output Contact:
-
2C/O
-
Contact Capacity:
-
6A 250VAC
-
Mounting:
-
Din Rail
-
Guarantee:
-
18months
-
Certifications:
-
CE CCC ISO9000
-
MOQ:
-
1PCS
GINRI Three phase reversal relay/phase loss relay/voltage monitor
JVRD-380W/JVRD-440W/JVRD-460W
♦ Features
-- Compact modular size
--
Three-phase monitoring of phase sequence, phase loss, over- and undervoltage and phase unbalance
-- Adjustable over- and undervoltage threshold
-- Adjustable trip time
-- Powered by the measuring circuit
-- 2 C/O contacts
-- 5 LEDs for status indication
♦ Protective Functions
-- Phase sequence
--
Phase loss
-- Overvoltage
-- Undervoltage
-- Phase unbalance
♦ Typical Applications
• Pumps • Fans
• Blowers • Motors
• Compressors
♦ Approvals
• CE • CCC

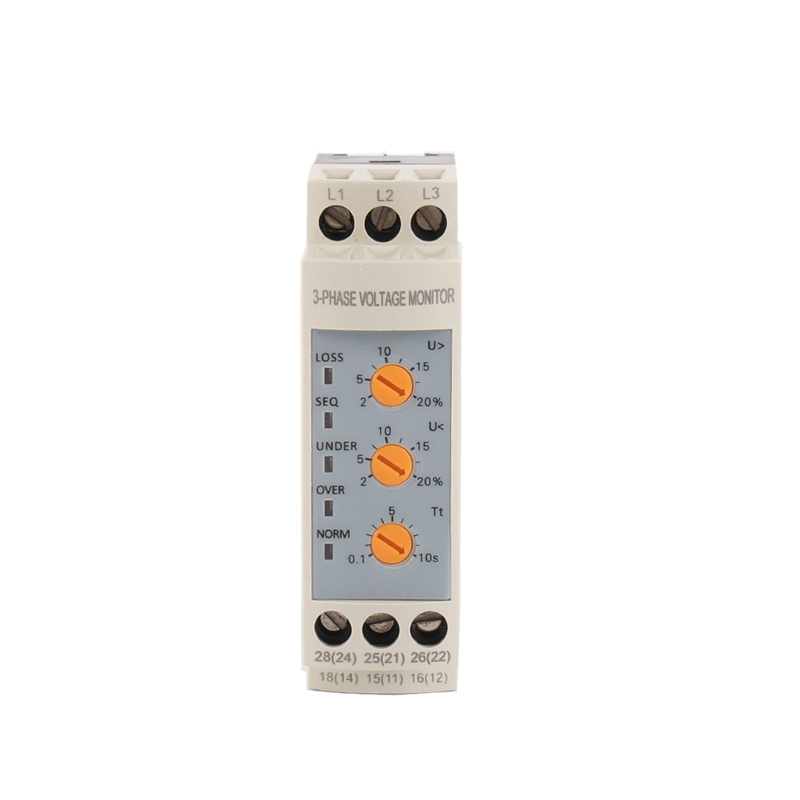

♦ Product Photo
♦ Technical data
|
Type |
JVRD-W |
|
Measuring circuit |
L1,L2,L3 |
|
Rated voltage |
220VAC,380VAC ,440VAC 460VAV,480VAC,50/60Hz |
|
Monitoring functions |
phase sequence, phase loss, overvolatege, undervoltage, phase unbalance |
|
Voltage setting range |
±5%~±20% |
|
Trip delay time |
1-10s adjustable |
|
Indicat ors |
phase sequence, phase loss, overvolatege, undervoltage, and normal |
|
Output contacts |
2 C/O |
|
Contact capacity |
6A,250VAC |
|
Dimensions (H x W x D) |
79×23×79mm |
|
Mounting |
DIN rail |
♦ Wiring Diagram
♦ GINRI Selection Guide
♦ GINRI Packing
♦ GINRI Relay Family Photo
FAQ
Q1. What advantages do you have?
A1. Ginri Power Automation are the direct Manufacturer in Wenzhou China from 1995, we have professional developing, marketing & production team to offer you the most competitive price and best service.
Q2. What’s your main product?
A2. We are 100% focus on Automation Products Voltge Monitoring Relay, Motor Protection Relay, Relay Modules, and Connector-Terminal Conversion Units.
Q3. Could you print our own logo?
A3. Yes, Our company are available for Retail & Wholesale & OEM & ODM.
Q4. How long is the quality guarantee?
A4. 18 month warranty, our products are 100% inspection.
Q5. How long is the deliver time?
A5. It usually takes about 3 - 5 working days for sample order and 10 - 25 days for big order.
Q6. What is your payment terms?
A6. Our Payment term is T/T, Aliexpress, Western Union, PayPal, Money Gram, L/C at sight.
Q7. How could I get your sample?
A7. You can request sample purchse through our alibaba trade assurance service.
