Quick Details
-
Dimension(L*W*H):
-
1560*1750*1700
-
Weight:
-
2500 KG
-
Product name:
-

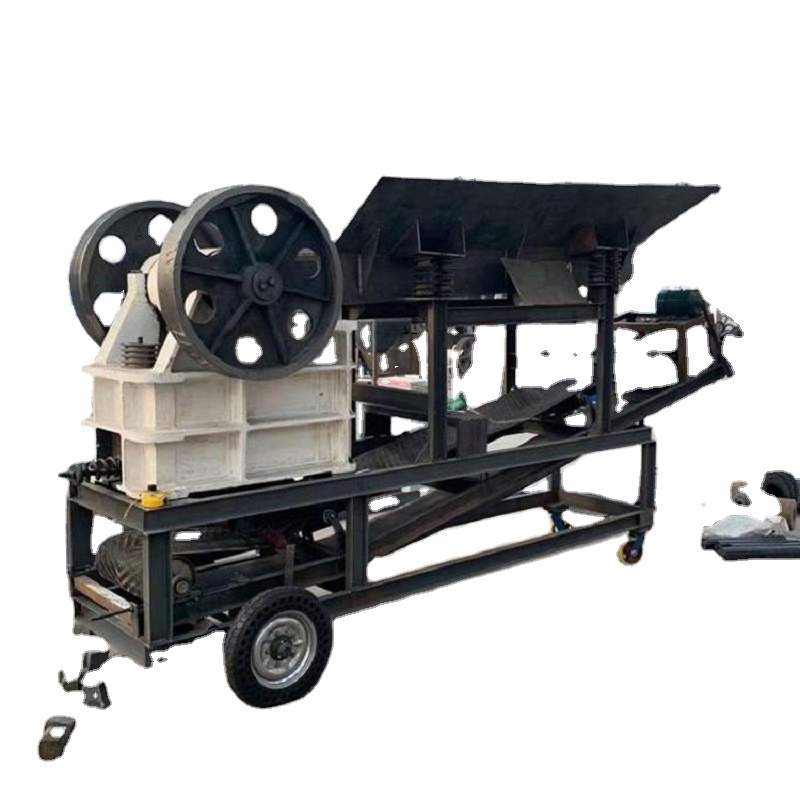

Jaw Crusher
-
Function:
-
Rock Stone Crusher
-
Model:
-
PE250*400
-
Applicaton:
-
Jaw Rock Crusher
-
Color:
-
Customised
-
The Machines classification:
-
Stone Crushing Line
-
Installation:
-
Guide
-
Raw material:
-
Stones Rocks Ores
-
Advantage:
-
Long Lifework
-
Keyword:
-
Fine Stone Crusher
Quick Details
-
Application:
-
Power plant,Crushing plant,Stone plant,Stone plant
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
KQ
-
Dimension(L*W*H):
-
1560*1750*1700
-
Weight:
-
2500 KG
-
Product name:
-
Jaw Crusher
-
Function:
-
Rock Stone Crusher
-
Model:
-
PE250*400
-
Applicaton:
-
Jaw Rock Crusher
-
Color:
-
Customised
-
The Machines classification:
-
Stone Crushing Line
-
Installation:
-
Guide
-
Raw material:
-
Stones Rocks Ores
-
Advantage:
-
Long Lifework
-
Keyword:
-
Fine Stone Crusher
Products Description
The processing principle of jaw crusher for material is jaw squeeze each other. It used in the first step for a variety of ore rock broken. All kinds of ores which compressive strength is not higher than 320Mpa can be one-time processing to moderate granularity. Often forms a complete set of sand production line with the cone crusher, counter attack crusher, sand making machine, etc. It widely used in mining, metallurgy, chemical industry, building materials, electricity, water conservancy, transportation and other fields.
Application
Metallurgy, construction material, mine, beneficiation and large block material crushing.
Metallurgy, construction material, mine, beneficiation and large block material crushing.
Applicable Materials
Dealing with the material with the side length 500mm, not more than 320Mpa anti-pressure strength.
Dealing with the material with the side length 500mm, not more than 320Mpa anti-pressure strength.
Details Images
Manufacturing Technique
Motor drive belt and pulley, make dynamic jaw movement up and down through the eccentric shaft. When the moving jaw rise, angle with the bracket and moving jaw will become bigger, promote dynamic jaw plate to close to the fixed jaw, in the same time, the material being crushed or broken, achieve the goal of broken. When the moving jaw move down, the angle between bracket and dynamic jaw becoming smaller. Under the action of bar, spring, moving jaw leave the fixed jaw plate. Broken material discharged from crushing cavity mouth. As the motor turns continuously, twitter mobile jaw as periodic motion, crush and discharge material, achieve batch production.
Performance characteristics:
1) Simple structure, convenient in use and maintenance. Stable performance, low operation cost, high crushing ratio.
2) Crushing cavity depth and no blind spot, increasing the feeding ability and capacity.
3) High crushing ratio, uniform product size.
4) Gasket type discharging mouth adjusting device, reliable, convenient and the adjustingrange is big, increase the flexibility of the equipment.
5) Lubricationsystem safe and reliable, easy to parts replacement, small maintenance workload.
6)Simple structure, reliable operation, low operating costs.
7)Energy saving: stand-alone energy saving 15% ~ 30%, the system energy saving more thandouble.
8)Discharging mouth wide adjustment range, can meet the requirements of different users.
9)Low noise, little dust.
Product Paramenters
|
Model
|
Specification(mm)
|
Inlet size(mm)
|
Max feed size(mm)
|
Capacity(t/h)
|
Power(kW)
|
Boundary size(mm)
|
Weight(t)
|
|
PF-0807
|
ø850*700
|
400*730
|
300
|
15-30
|
30-45
|
2210*1490*2670
|
8.1
|
|
PF-1007
|
ø1000*700
|
400*730
|
300
|
30-50
|
37-55
|
2400*1558*2660
|
9.5
|
|
PF-1010
|
ø1000*1050
|
400*1080
|
350
|
50-80
|
55-75
|
2400*2250*2620
|
12.2
|
|
PF-1210
|
ø1250*1050
|
400*1080
|
350
|
70-120
|
110-132
|
2690*2338*2890
|
14.9
|
|
PF-1214
|
ø1250*1400
|
400*1430
|
350
|
130-180
|
132-160
|
2690*2688*2890
|
18.6
|
|
PF-1310
|
ø1300*1050
|
490*1170
|
400
|
80-140
|
110-160
|
2780*2478*2855
|
16.2
|
|
PF-1315
|
ø1320*1500
|
860*1520
|
500
|
160-250
|
180-260
|
3096*3273*2667
|
19.3
|
|
PF-1415
|
ø1450*1500
|
1145*1520
|
950
|
220-450
|
220-315
|
3745*3022*3519
|
27
|
|
PF-1520
|
ø1520*2000
|
830*2050
|
700
|
300-550
|
315-440
|
3581*3560*3865
|
36.5
|
