Quick Details
-
Brand Name:
-
PurePumps
-
Model Number:
-
KBS
-
Place of Origin:
-
Jiangsu, China
-
Horsepower:
-
20 HP
-
Outlet Size:
-
200 mm
-
Power:
-
15kw, Electric
-
Usage:
-
Water
-
Theory:
-
Centrifugal Pump
-
Standard or Nonstandard:
-
Standard
-
Product name:
-
submersible slurry water pump
-
Material:
-
Cast Iron
Quick Details
-
Application:
-
wastewater treatment
-
Pressure:
-
High Pressure
-
Voltage:
-
380 v
-
Brand Name:
-
PurePumps
-
Model Number:
-
KBS
-
Place of Origin:
-
Jiangsu, China
-
Horsepower:
-
20 HP
-
Outlet Size:
-
200 mm
-
Power:
-
15kw, Electric
-
Usage:
-
Water
-
Theory:
-
Centrifugal Pump
-
Standard or Nonstandard:
-
Standard
-
Product name:
-
submersible slurry water pump
-
Material:
-
Cast Iron

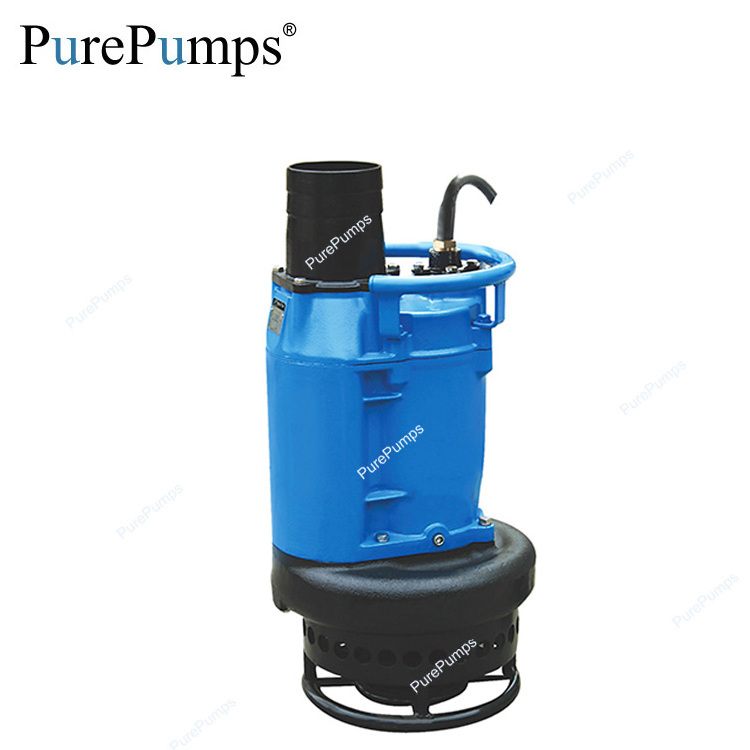

high voltage Tsurumi high chrome alloy impeller Submersible drainage sand pump with agitator
1. t he body of motor and pump is made of rigid cast iron for long lasting durability.
2.greatly increased maximum submersion depth due to mechanical seal resistant to high pressure.
3.semi-open impeller made of high chrome alloy match with wear plate achieves superior durability
4.effective motor cooling due to discharge channel cast as part of the motor housing. space economically by a top outlet
5.discharge 50mm to 150mm, motor 1.5kw to 15kw
6.hermetically sealed motor equipped build in thermal protection for the power below 15kw
Application:
civel engineering
mines quarries coal ore and slurries
sewage treatmetn plant
general pumping purpose
| model | outlet | power | rated current(380) |
rated flow |
rated head | max capacity | max head | impeller passage | |||
| mm | kw | hp | A | m3/h | m3/min | m | m3/h | m3/min | m | mm | |
| KBS44 | 80 | 4 | 5.5 | 10.2 | 60 | 1.0 | 10 | 99 | 1.65 | 14.8 | 30 |
| KBS46 | 100 | 6 | 8 | 13.8 | 90 | 1.5 | 10 | 144 | 2.4 | 16.9 | 30 |
| KBS49 | 150 | 9 | 12 | 19.5 | 100 | 1.67 | 15 | 192 | 3.2 | 21.5 | 30 |
| KBS411 | 150 | 11 | 15 | 22 | 120 | 2 | 15 | 234 | 3.9 | 22 | 30 |
| KBS415 | 200 | 15 | 20 | 30.1 | 200 | 3.33 | 16 | 372 | 6.2 | 22 | 30 |
| KBS422 | 200 | 22 | 30 | 42 | 200 | 3.33 | 24 | 380 | 6 | 32 | 30 |
