Quick Details
-
Model Number:
-
STC-8080A+
-
Temperature range:
-
-50°C to 99 °C
-
Controlling accuracy:
-
NTC: ±0.5°C, others: ±1 °C
-
resolution:
-
1℃
-
power:
-
AC10A / 220V (can withstand 2200W load)
-
Product Size:
-
100 * 80 * 60mm
-
Weight:
-
185g
-
Sensor Type:
-
NTC sensor
-
sensor wire length:
-
1m cable NTC
-
Material:
-
ABS Plastic
-
Package:
-
Color box
-
Color:
-
black
Quick Details
-
Warranty:
-
one year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BONAJAY
-
Model Number:
-
STC-8080A+
-
Temperature range:
-
-50°C to 99 °C
-
Controlling accuracy:
-
NTC: ±0.5°C, others: ±1 °C
-
resolution:
-
1℃
-
power:
-
AC10A / 220V (can withstand 2200W load)
-
Product Size:
-
100 * 80 * 60mm
-
Weight:
-
185g
-
Sensor Type:
-
NTC sensor
-
sensor wire length:
-
1m cable NTC
-
Material:
-
ABS Plastic
-
Package:
-
Color box
-
Color:
-
black

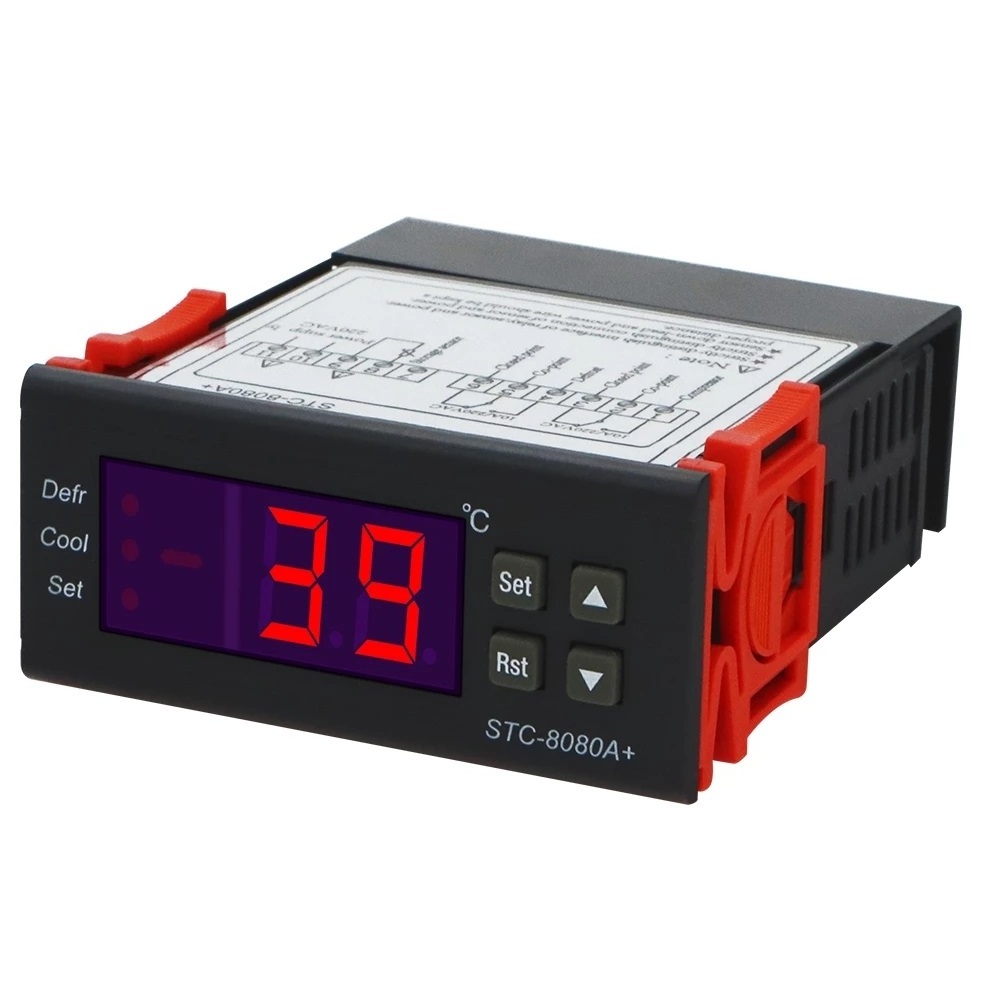

STC-8080A+ 12V 24V 220V Digital Temperature Controller Regulator Cold Storage Freezer Sensor Temperature Control Switch
Product Description
| Model number | STC-8080A |
| Measure range | -50 to 99 ℃ |
| Setting range | -40 to 50 ℃ |
| Resolution | 1 ℃ |
| Accuracy | ±1 ℃ (-40 to 50 ℃), ±2℃ (Other) |
| Supply voltage | 220Vac, 110Vac, 50/60Hz; 12Vac/dc, 24Vac/dc |
| Power consumption | Less than 3W |
| Output types | Two mechanical relay |
| Input types | 1pc 2m cable NTC (included) |
| Panel size | 75x34.5 mm |
| External dimensions | 75x34.5x85 mm |
| Perforation dimensions | 71 1 0 x29 1 0 mm |
| Control method | ON/OFF Control |
| Setting method | Touch switch |
| Indication method | 8-segment 3-digital display and LED indication |
| Front panel IP Rating | IP64 |
| Operating temperature | 0 to 55 ℃ |
| Operating humidity | 20% to 85% RH, non-condensing |
| Storage temperature | -30 to 75 ℃ |
| Alias name | freezer temperature controller, defrost thermostat, freezer thermostat |
