Quick Details
-
Model Number:
-
HV-02 HV-03 HV-04
-
Brand Name:
-
ONNT
-
Product Name:
-
HV Hand Lever Valve
-
Port size:
-
1/2'' 1/4'' 3/8''
-
Valve type:
-
4/2 4/3 Way
-
Fluid:
-
Air
-
Operating Pressure:
-
0.15~0.8MPa
-
Acting type:
-
Internal pilot or external pilot
-
Temperature:
-
-20~70℃
-
Material of body:
-
Aluminum alloy
-
Lubrication:
-
Non Required
-
Type:
-
Hand Control Valves
Quick Details
-
Port Size:
-
G1/2 G1/4 G3/8
-
Warranty:
-
1 years
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
HV-02 HV-03 HV-04
-
Brand Name:
-
ONNT
-
Product Name:
-
HV Hand Lever Valve
-
Port size:
-
1/2'' 1/4'' 3/8''
-
Valve type:
-
4/2 4/3 Way
-
Fluid:
-
Air
-
Operating Pressure:
-
0.15~0.8MPa
-
Acting type:
-
Internal pilot or external pilot
-
Temperature:
-
-20~70℃
-
Material of body:
-
Aluminum alloy
-
Lubrication:
-
Non Required
-
Type:
-
Hand Control Valves

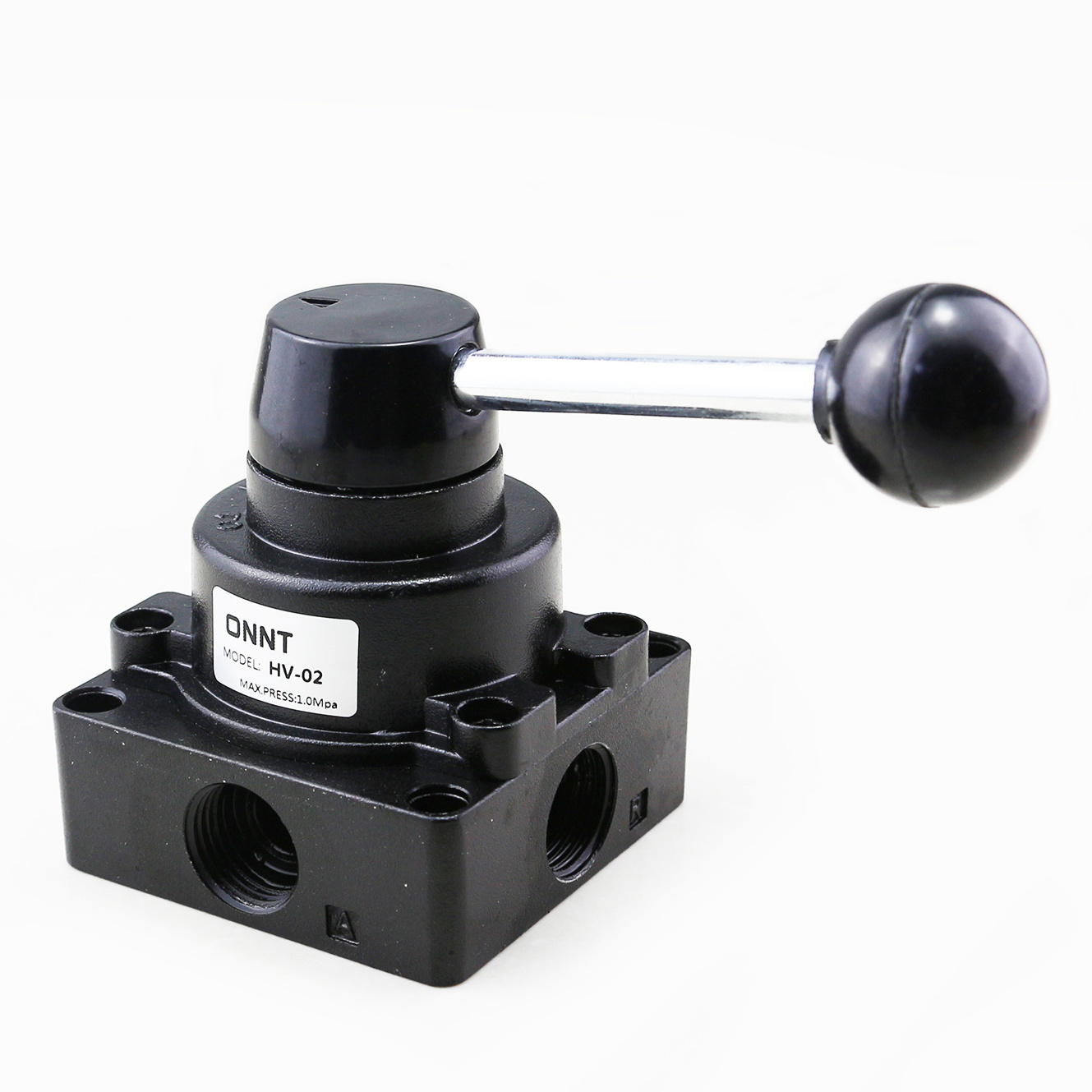

HV-02 03 04 2/ 4 Way Direct Acting 3 / 4 Way Pneumatic Hand Lever Valve Hand Push Pull Control Pneumatic Air Valve
Ordering Code:
Specifications
|
Model
|
|
HV-02
|
HV-03
|
HV-04
|
|||
|
Fluid
|
|
Air( to be filtered bu 40 µ m filter element)
|
|
|
|||
|
Operating
|
|
Manual control direct acting type
|
|
|
|||
|
Port size
|
|
1/4''
|
3/8''
|
1/2''
|
|||
|
Action
|
|
Direct acting type
|
|
|
|||
|
pressure range
|
|
0~8.0kgf/cm²
|
|
|
|||
|
Proof pressure
|
|
1.5MPa(215psi)
|
|
|
|||
|
Temperature °C
|
|
0-60℃
|
|
|
|||
|
Main parts material
|
Body
|
Aluminum Alloy
|
|
|
|||
|
|
Seal
|
NBR
|
|
|
|||
|
Lubrication
|
|
Not required
|
|
|
|||
Other type for you to choose
Details Images:
Dimensions
Other pneumatic part for you to choose
Main Products:
Why Choose Us:
FAQ:
Q: What is your MOQ?
A: 5pcs for MOQ.
Q: What is your packing?
A: Each Cylinder by one box packing.
Q: How to choose cylinder?
A: Please contact us, we are always online!
Q: What is your quality?
A: Sample will tell you what you want.
Q: What is your warranty?
A: One year under normally used.
Q: Can you do OEM?
A: Yes, we can.
