Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OKAF
-
Model Number:
-
OK-CQ50DM-20IP
-
Video Resolution:
-
1920*1080P
-
Lens:
-
f=4.7~94mm
-
Keyword:
-
Vehicle PTZ Camera
-
IR Distance:
-
Night vision 60m
-
Control protocol:
-
Pelco-D, Pelco-P
-
Image Sensor:
-
1/2.8 TYPE eXMOR cmos
-
Optical Zoom:
-
20 Optical zoom available
-
Pixel:
-
2.0 Megapixel
-
Video Compression:
-
H.264/H.265
-
Rotation:
-
360 degreen at horizontal
Quick Details
-
Special Features:
-
NIGHT VISION, Waterproof / Weatherproof, PAN-TILT, Two-way Audio
-
Function:
-
Waterproof / Weatherproof, Wide Angle, PAN-TILT, RESET, NIGHT VISION, Vandal-proof
-
Customized support:
-
Online technical support, Customized logo, OEM, ODM, Software reengineering
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OKAF
-
Model Number:
-
OK-CQ50DM-20IP
-
Video Resolution:
-
1920*1080P
-
Lens:
-
f=4.7~94mm
-
Keyword:
-
Vehicle PTZ Camera
-
IR Distance:
-
Night vision 60m
-
Control protocol:
-
Pelco-D, Pelco-P
-
Image Sensor:
-
1/2.8 TYPE eXMOR cmos
-
Optical Zoom:
-
20 Optical zoom available
-
Pixel:
-
2.0 Megapixel
-
Video Compression:
-
H.264/H.265
-
Rotation:
-
360 degreen at horizontal

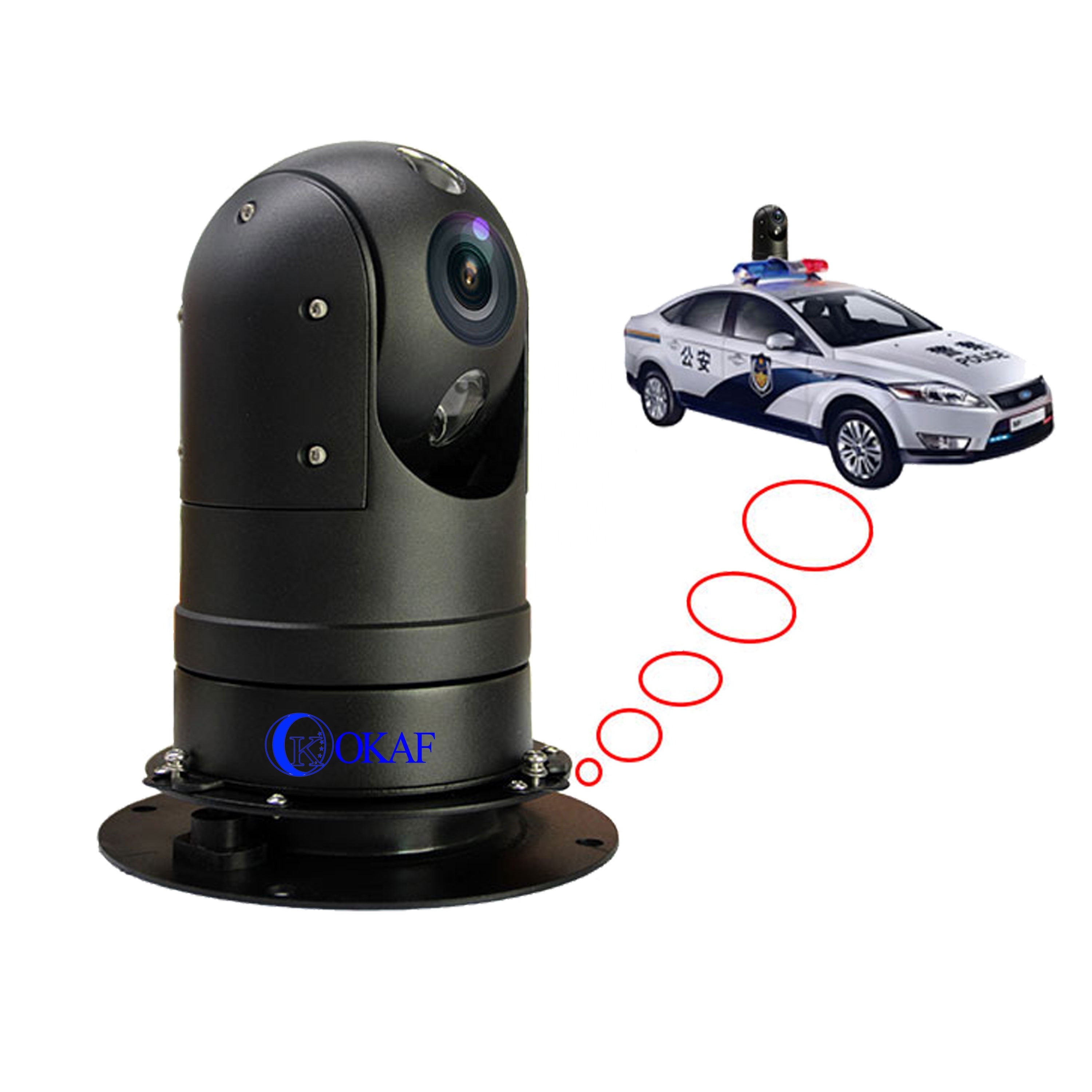

360 Degree Rotating 2 MP 20 Zoom Car Vehicle Mounted Mobile PTZ Camera
Feature
1. Support kinds of resolution IP camera max 2.0 megapixel.
2. Support IP and analog dual signal output.
3. Support dual control. PTZ and camera zoom Could be controlled by RS485 and RJ45 network.
4. Built in defrost and defogging device. Can be work well even the temperpature change suddenly.
5. Support coordinate display and angle acceptance instructions.
6. Aluminum material, Shockroof , anti-corrosion .
7. 360 degree continuosly rotation.
8. Wide range vehicle power DC12V.
Technical Data
| Model | OK-CQ50DM-20IP | |
| Data of PTZ camera | Image sensor | 1/2.8 type Exmor CMOS |
| Pixel | 2.0 Megapixel | |
| Resolution | 1920*1080 | |
|
Minimum illumination |
0.095lx(F1.6. ICR ON) | |
| Lens zoom | 20X Optical zoom | |
| Focus | f=4.7mm~94.0mm | |
| Ajustment |
white balance,automatic gain control AGC,BLC |
|
| SNR | ≥50 db | |
| Electronic shutter | 1/1s- 1/10000s | |
| Port function | Network port | RJ45 10Base-T/100 Base-TX PoE(IEEE802.3af) |
| Hikvision,Sony,Samsung,Hitachi,and other brands HD Camera chipest | ||
| Video | video compressor | H.264 / H.265 |
| Image pixel | 1080P 25/30P | |
| Night vision | Lighting | 850nm IR infrared |
| vision distance | 50m | |
| Camera data | Horizontal range | 360° rotation |
| Horizontal speed | 0~120° | |
| Vertical range | +90°~-25° | |
| Vertical speed | 0~10°/S | |
| Preset | 256 preset positions | |
| Cruise | 8 pcs cruise | |
| IP rate | IP66 protection | |
| Other feature | work temperature | -35℃~+55℃ |
| Power supply | DC10.5V~DC16V | |
| weight | 3.0kg | |
Dimension of OK-CQ50DM
|
|
Application of vehicle roof mounted ptz camera
Vehicle mounted camera solution can be deployed where a rapid security response is required. It is widely applied on vehicle, marine surveillance, law enforcement vehicle,emergency vehicle, fire control vehicle, ambulance vehicle. It is great solution for mobile surveillance.
View real time video on OKAF mobile video surveillance platform.
Package with vehicle mount accessories
