Quick Details
-
Dimension(L*W*H):
-
5200*2000*2780mm
-
Weight:
-
4.5 KG
-
Drilling Depth:
-
180, 200, 300, 350, 400, 500, 600m
-
Mobility:
-
Crawler Tracked, Portable
-
Certification:
-
CE, ISO
-
Showroom:
-
None
-
Engine Model:
-
Quanchai
-
Power Oil:
-
Diesel
-
Travelling System:
-
Rubber Crawler
-
Travelling speed:
-
2.5km/h
-
Name:
-
water well Drilling Rig
-
Key words:
-
New Mine Drilling Rig
-
Keyword:
-
Farm Mine Drilling Rig
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SDJK
-
Voltage:
-
24V
-
Dimension(L*W*H):
-
5200*2000*2780mm
-
Weight:
-
4.5 KG
-
Drilling Depth:
-
180, 200, 300, 350, 400, 500, 600m
-
Mobility:
-
Crawler Tracked, Portable
-
Certification:
-
CE, ISO
-
Showroom:
-
None
-
Engine Model:
-
Quanchai
-
Power Oil:
-
Diesel
-
Travelling System:
-
Rubber Crawler
-
Travelling speed:
-
2.5km/h
-
Name:
-
water well Drilling Rig
-
Key words:
-
New Mine Drilling Rig
-
Keyword:
-
Farm Mine Drilling Rig
Factory orders, this price is pre-sale, please contact customer service for details

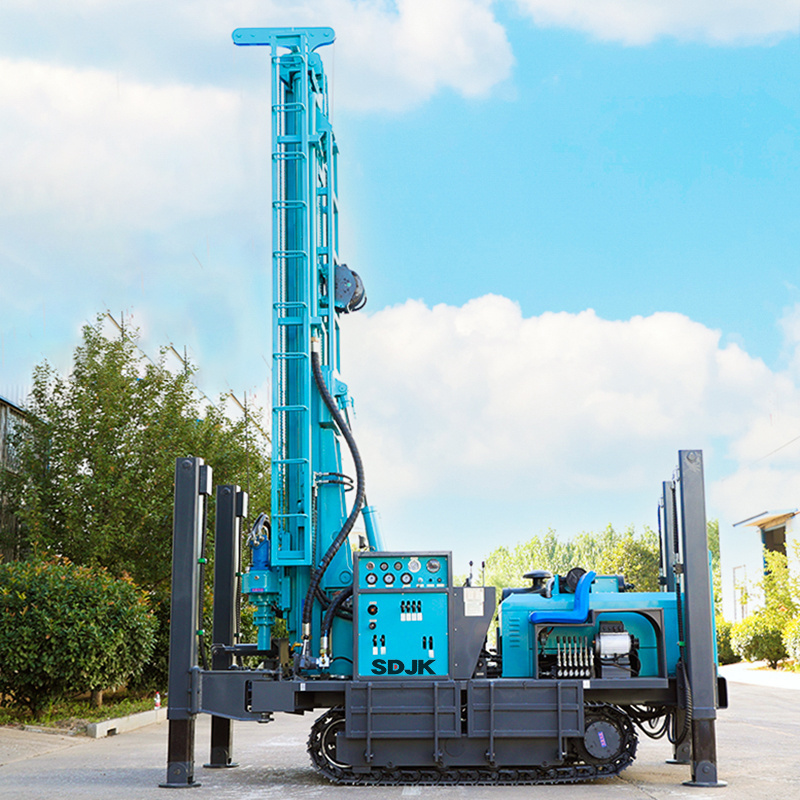

JK-DR series(180, 200, 300, 350, 400, 500, 600, 800 and other models of rotary full hydraulic controlled water well drilling rigs are
multifunctional
,
it can be used
with air compressor
,
mud pump
,
even we can just use the
dry hydraulic drilling method.
The portable drilling rigs are not only designed for water, they can also be used in all conditions based on
pore-forming
purpose.
This series of water well drilling machine has the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economical and durable, low failure rate, etc. It has been recognized by the market once it is launched, and has been widely used in mining engineering construction, civil drilling, geothermal drilling and other fields.
They are widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering.
Our drilling rigs are more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance.
|
Model & Name
|
JK-DR180
|
Travelling speed
|
2.5km/h
|
|
Weight
|
4500 kg
|
Gradeability
|
30%
|
|
Dimensions（mm）
|
3800*1500*2200mm
|
Rated pressure
|
1.7-2.5MPa
|
|
Power Oil
|
Diesel
|
Air consumption
|
17-31m³/min
|
|
Engine Model
|
QUANCHAI
|
Drill rod diameter
|
Φ76,Φ89mm
|
|
Rated Power
|
55 kW
|
Drill rod length
|
1.5m, 2.0m, 3.0m
|
|
Travelling System
|
Rubber Crawler
|
Elevating capacity
|
12 Ton
|
|
Drilling depth
|
180m
|
Swing speed
|
45-65rpm
|
|
Bore diameter
|
140-254mm
|
Swing torque
|
3200-4600 N.m
|
|
Drive Head Stroke
|
3.4m
|
|
|
|
Model & Name
|
JK-DR200X
|
Drive Head Stroke
|
3.4m
|
|
Weight
|
5000 kg
|
Travelling speed
|
2.5km/h
|
|
Dimensions（mm）
|
3950*1700*2300mm
|
Gradeability
|
30%
|
|
Power Oil
|
Diesel
|
Rated pressure
|
1.7-3.0 MPa
|
|
Engine Model
|
QUANCHAI
|
Air consumption
|
17-30 m³/min
|
|
Rated Power
|
65 kW
|
Drill rod diameter
|
Φ76,Φ89mm
|
|
Travelling System
|
Rubber Crawler
|
Drill rod length
|
1.5m, 2.0m, 3.0m
|
|
Drilling depth
|
200m
|
Elevating capacity
|
13Ton
|
|
Bore diameter
|
140-350mm
|
Swing speed
|
45-65rpm
|
|
Swing torque
|
3500-4700 N.m
|
|
|
|
Model & Name
|
JK-DR350
|
Travelling speed
|
2.5km/h
|
|
Weight
|
9000 kg
|
Gradeability
|
30%
|
|
Dimensions（mm）
|
5900*2000*2850mm
|
Rated pressure
|
1.7-3.3MPa
|
|
Power Oil
|
Diesel
|
Air consumption
|
17-35 m³/min
|
|
Engine Model
|
YUCHAI
|
Drill rod diameter
|
Φ89 / Φ102 mm
|
|
Rated Power
|
92 kW
|
Drill rod length
|
1.5m, 2.0m, 3.0m, 6.0m
|
|
Travelling System
|
Steel Crawler
|
Elevating capacity
|
24 Ton
|
|
Drilling depth
|
350m
|
Swing speed
|
55-115rpm
|
|
Bore diameter
|
140-325mm
|
Swing torque
|
6200-8500 N.m
|
|
Drive Head Stroke
|
6.6m
|
|
|
|
Model & Name
|
JK-DR400
|
Travelling speed
|
2.5km/h
|
|
Weight
|
10 Ton
|
Gradeability
|
30%
|
|
Dimensions（mm）
|
5900*2100*2850mm
|
Rated pressure
|
1.7-3.5 MPa
|
|
Power Oil
|
Diesel
|
Air consumption
|
17-35 m³/min
|
|
Engine Model
|
YUCHAI
|
Drill rod diameter
|
Φ89 / Φ102 / Φ108 mm
|
|
Rated Power
|
92 kW
|
Drill rod length
|
1.5m, 2.0m, 3.0m, 6.0m
|
|
Travelling System
|
Steel Crawler
|
Elevating capacity
|
25 Ton
|
|
Drilling depth
|
400m
|
Swing speed
|
45-115rpm
|
|
Bore diameter
|
140-350mm
|
Swing torque
|
6500-9000 N.m
|
|
Drive Head Stroke
|
6.6m
|
|
|
|
Model & Name
|
JK-DR500
|
Rated pressure
|
1.7-3.5 MPa
|
|
Weight
|
11.5Ton
|
Air consumption
|
17-42 m³/min
|
|
Bore diameter
|
140-350mm
|
Drill rod diameter
|
Φ102 / Φ108/ Φ114 mm
|
|
Drilling depth
|
500m
|
Drill rod length
|
1.5m, 2.0m, 3.0m, 6.0m
|
|
Engine Model
|
YUCHAI
|
Elevating capacity
|
26Ton
|
|
Rated Power
|
118 kW
|
Swing speed
|
40-100rpm
|
|
Stroke
|
6.6m
|
Swing torque
|
7500-10000N.m
|
|
Travelling speed
|
2.5km/h
|
Dimensions
|
6000*2200*2950mm
|
|
Gradeability
|
30%
|
|
|
|
Model & Name
|
JK-DR600
|
Travelling speed
|
2.5km/h
|
|
Weight
|
12Ton
|
Gradeability
|
30%
|
|
Dimensions（mm）
|
6200*2200*2950mm
|
Rated pressure
|
1.7-3.5 MPa
|
|
Power Oil
|
Diesel
|
Air consumption
|
17-42 m³/min
|
|
Engine Model
|
CUMMINS
|
Drill rod diameter
|
Φ102 / Φ108/ Φ114 mm
|
|
Rated Power
|
132 kW
|
Drill rod length
|
1.5m, 2.0m, 3.0m, 6.0m
|
|
Travelling System
|
Steel Crawler
|
Elevating capacity
|
28 Ton
|
|
Drilling depth
|
600m
|
Winch Elevating capacity
|
3 Ton
|
|
Bore diameter
|
140-350mm
|
Swing speed
|
45-115rpm
|
|
Drive Head Stroke
|
6.6m
|
Swing torque
|
8500-11000 N.m
|
Please Note:
All our water drilling rig accept customization, any good idea there please contact us, our engineers will help you get what you want, we can also put the rig on a truck mounted chassis.
