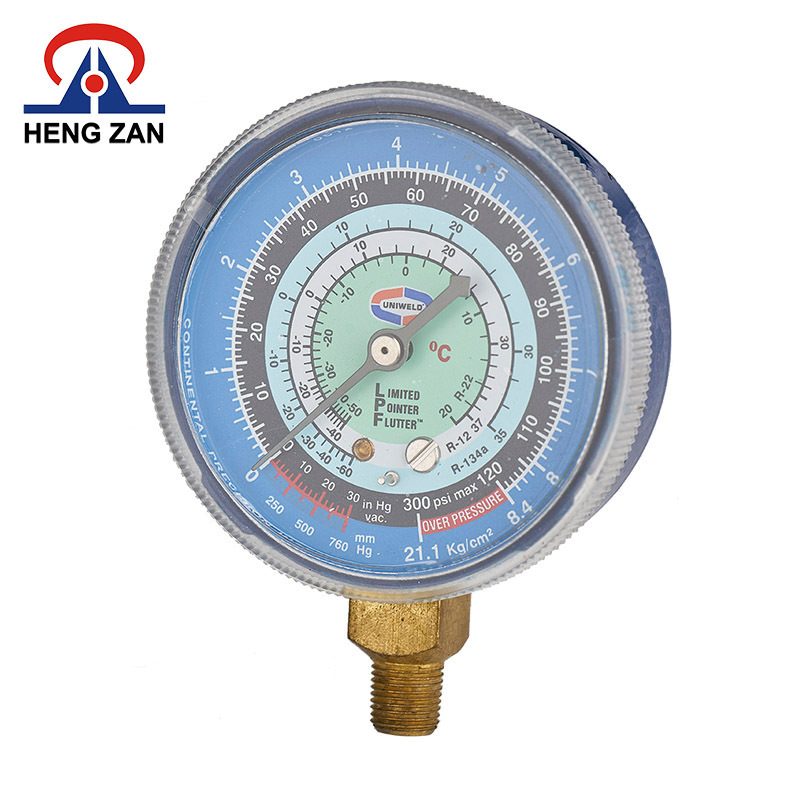

HENGZAN AC brass refrigerant r404a/r134a gas pressure gauge bourdon tube manifold gauge

HENGZAN AC brass refrigerant r404a/r134a gas pressure gauge bourdon tube manifold gauge

FOB Reference Price: Get Latest Price

≥5 Pieces

US $2.5

≥100 Pieces

US $2.3

≥2000 Pieces

US $2.2

≥3000 Pieces

US $2

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product Name:: Refrigerant Pressure Gauge

Connection:: Bottom, Brass Alloy

Thread:: 1/4''

Case:: ABS plastic or Iron

Bourdon Tube & Movement:: Brass Alloy

Dial:: Aluminum Alloy

Cover:: Polycarbonate Transparent Plastic

Pressure Range:: 0~40bar

Accuracy:: ±1.6(±1.5), ±2.5

Working Temperature:: -40~+60 °C

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: HENGZAN

Model Number:: YL1000-70

Product Name:: Refrigerant Pressure Gauge

Connection:: Bottom, Brass Alloy

Thread:: 1/4''

Case:: ABS plastic or Iron

Bourdon Tube & Movement:: Brass Alloy

Dial:: Aluminum Alloy

Cover:: Polycarbonate Transparent Plastic

Pressure Range:: 0~40bar

Accuracy:: ±1.6(±1.5), ±2.5

Working Temperature:: -40~+60 °C

Products Description

INTRODUCTION about YL1000 series refrigerant pressure gauge

Refrigerant Pressure Gauge , is also called Fluorine Pressure Gauge. It is used to measure the current pressure of the refrigeration system. It is mainly used to detect the pressure value of the refrigerant in different stages of the system, so that the equipment operation and maintenance personnel can clearly grasp the operation status of the equipment.

YL1000 Refrigerant Pressure Gauge

Application ✱ Refrigeration Equipments

✱C ompressor ✱H ydraulic Device

Features ✱ Vibration-Proof and Durable ✱P lastic or Stainless-Steel Case ✱ Protection Class IP54 ✱ Measuring Range: 0~40 bar

SPECIFICATION

Technical Parameters
Design	comply with EN837-1 standard
Standard Size(mm)	70, 80
Accuracy	±1.6(±1.5), ±2.5
Measuring Range	0~40 bar
Allowable Temperature	-40~+60°C
Connector	bottom or back mounting, brass alloy
Bourdon Tube	c-shaped or helical, brass alloy
Movement	brass alloy
Dial	aluminium alloy, color white
Needle	aluminium alloy, color black
Case	ABS plastic, blue(low pressure) & red(high pressure)
Cover	polycarbonate
