Quick Details
-
Dimension(L*W*H):
-
2150*900*1690
-
Weight:
-
950 KG
-
Drilling Diameter:
-
38mm
-
Mobility:
-
standard
-
Keyword:
-
water well drilling rig
-
Product name:
-
water well drilling rig machine
-
Finally hole diameter:
-
75mm
-
Spindle speed (three speed):
-
142,285,570rpm
-
Spindle stroke:
-
450mm
-
Spindle pull-down max:
-
15000N
-
Spindle lifting capacity max:
-
25000N
-
Max lifting capacity:
-
10000N
-
Circumference linear velocity of roller:
-
0.42,0.81,1.68m/s
-
Steel rope capacity:
-
27m
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZhongMei
-
Voltage:
-
8Mpa
-
Dimension(L*W*H):
-
2150*900*1690
-
Weight:
-
950 KG
-
Drilling Diameter:
-
38mm
-
Mobility:
-
standard
-
Keyword:
-
water well drilling rig
-
Product name:
-
water well drilling rig machine
-
Finally hole diameter:
-
75mm
-
Spindle speed (three speed):
-
142,285,570rpm
-
Spindle stroke:
-
450mm
-
Spindle pull-down max:
-
15000N
-
Spindle lifting capacity max:
-
25000N
-
Max lifting capacity:
-
10000N
-
Circumference linear velocity of roller:
-
0.42,0.81,1.68m/s
-
Steel rope capacity:
-
27m
Products Description
Introduction of Well Drilling Rig 150m Small 100m 200m Water Borehole Well Drilling Rig Machine Crawler Drilling Rig For Water Well Drill Rig Price

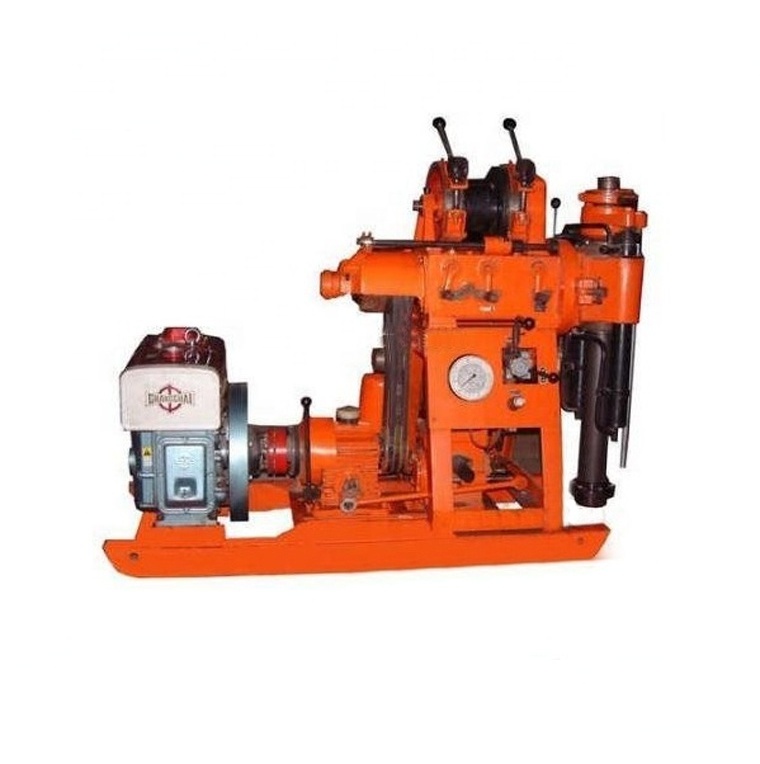

XY-1A 100m Depth Hydraulic Drilling Rig Machine is a applicable for high-way and building construction foundation drilling ,general survey, geophysical exploration and blast hole drilling etc.
XY-1A 100m Drilling Rig Machine was based on XY-1 100m Depth Hydraulic Drilling Rig Machine adding three drilling rig components parts of hydraulic swivel head, mobile oil cylinder and trailer underframe.
zmwm17
Product Paramenters
|
Drilling capacity(m)
|
73 rod
|
100
|
|
|
|
60 rod
|
200
|
|
|
|
50 rod
|
380
|
|
|
|
42 rod
|
530
|
|
|
Spindle speed(r/min)
|
Forward
|
65;114;180;248;
310;538;849;1172 |
|
|
|
Reverse
|
51;242
|
|
|
Max torque (Nm)
|
|
2760
|
|
|
Angle range
|
|
0-90°
|
|
|
Spindle max pull force(KN)
|
|
60
|
|
|
Spindle stroke (mm)
|
|
600
|
|
|
Hoist max life capacity with single rope (KN)
|
|
30
|
|
|
Spindle inner dia (mm)
|
|
76
|
|
|
Oil pump
|
|
SCB32/12
|
|
|
Power unit
|
Electric motor
|
Y180L-4,22Kw
|
|
|
|
Diesel engine
|
395K2,19.85Kw
|
|
|
Inner dia of spindle (mm)
|
|
2150×900×1690
|
|
|
Drill body weight (excluding power)(kg)
|
|
950
|
|
