Quick Details
-
Model Number:
-
DT01
-
Certificate:
-
TUV/CQC
-
Color:
-
Black or red
-
Button color:
-
Customer Choosed
-
Operation type:
-
Momentory
Quick Details
-
Customized support:
-
OEM, ODM, OBM
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KEJIAN
-
Model Number:
-
DT01
-
Certificate:
-
TUV/CQC
-
Color:
-
Black or red
-
Button color:
-
Customer Choosed
-
Operation type:
-
Momentory
| GE,Honeywell | ≥99.95% | Bulk orders ready in | Excellent R&D team |
| &Panasonic`s supplier | qualification rate | 15-20 days | |

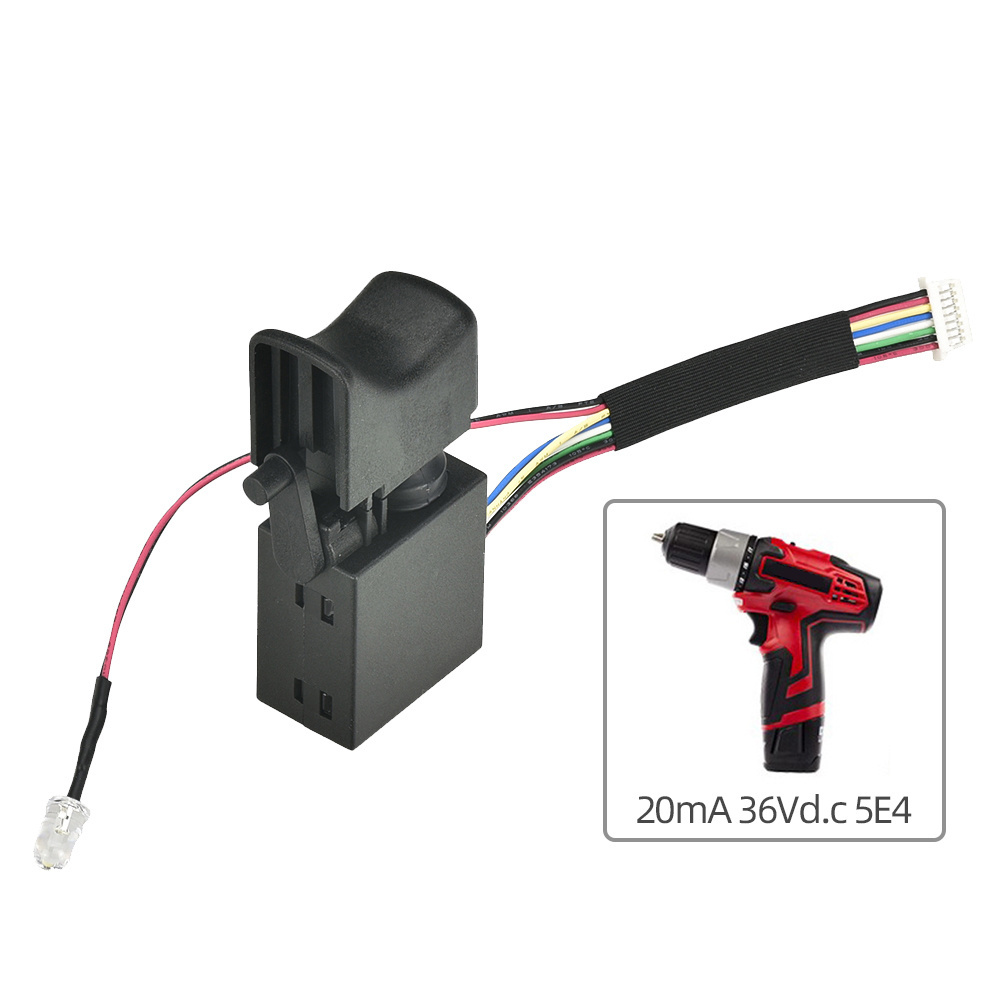

DT 01 series are one special type DC signal trigger switches,integrated dustproof,designed specially for used in Brushless DC power-tools such as: Brushless Cordless Drills,Brushless Cordless Screw Drivers, Brushless Cordless lmpact Wrenches,etc. With special design for assembly with PCB, needn't any wires.
| Features | |
|
0ptional with the function or accessories as follows |
Signal On-off version with linear potentiometer
|
| Technical data | |||
|
Mechanical life endurance |
≥5E4 | Electrical life endurance | ≥1E4 |
|
Max. current at 42Vd.c |
0.1A | Protection type | IP40 |
|
Contact resistance |
≤30m Ohm | Insulation resistance | ≥7M Ohm |
|
Dielectric strength of function |
500V | Dielectric strength of reinforced | 500V |
|
Ambient temperature |
0℃~55℃ | Flammability | UL 94V-0 |
| The electronics in the switches had to be tested together with the corresponding appliances, so the switches are suitable for appliance of class Ⅱ. | |||
| Terminals | |
|
Input side\ Output side |
Wire terminal Wire terminal with Plug |
