Quick Details
-
Model Number:
-
KTS011
-
Switching temperature difference:
-
7K(±4K allowance)
-
Service life:
-
> 100,000 cycles
-
Join:
-
2 extremes, maximum clamping torque 0.5 Nm
-
Dimension:
-
60 x 33 x 43 mm
-
Operating/storage temperature:
-
-45 --+80 °C(-49 --+176 °F)
-
Protection type:
-
IP20
-

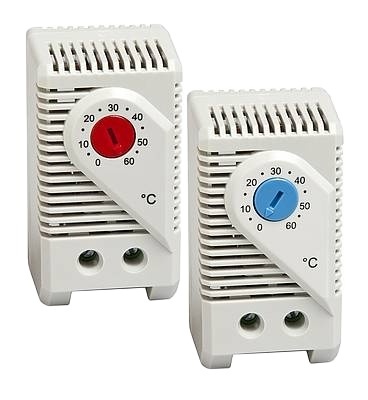

Sensor element:
-
Bimetal thermostat
-
Contact type:
-
Snap action contact
-
Maximum surge current:
-
AC 16 A,10 second
-
Shell:
-
Plastic, UL94 V-0, light gray
-
Color:
-
Blue and white
Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Germany
-
Brand Name:
-
STEGO
-
Model Number:
-
KTS011
-
Switching temperature difference:
-
7K(±4K allowance)
-
Service life:
-
> 100,000 cycles
-
Join:
-
2 extremes, maximum clamping torque 0.5 Nm
-
Dimension:
-
60 x 33 x 43 mm
-
Operating/storage temperature:
-
-45 --+80 °C(-49 --+176 °F)
-
Protection type:
-
IP20
-
Sensor element:
-
Bimetal thermostat
-
Contact type:
-
Snap action contact
-
Maximum surge current:
-
AC 16 A,10 second
-
Shell:
-
Plastic, UL94 V-0, light gray
-
Color:
-
Blue and white
Product Description
Specification
|
item
|
value
|
|
Warranty
|
1 years
|
|
Place of Origin
|
Germany
|
|
Brand Name
|
STEGO
|
|
Model Number
|
KTS11101.0-00
|
|
Color
|
Blue and white
|
|
Switching temperature difference
|
7K(±4K allowance)
|
|
Service life
|
> 100,000 cycles
|
|
Join
|
2 extremes, maximum clamping torque 0.5 Nm
|
|
Dimension
|
60 x 33 x 43 mm
|
|
Operating/storage temperature
|
-45 --+80 °C(-49 --+176 °F)
|
|
Protection type
|
IP20
|
|
Sensor element
|
Bimetal thermostat
|
|
Contact type
|
Snap action contact
|
|
Maximum surge current
|
AC 16 A,10 second
|
|
Shell
|
Plastic, UL94 V-0, light gray
|
