Quick Details
-
Brand Name:
-
KCMC
-
Product Name:
-
Ultrasonic Flowmeter
-
Accuracy:
-
1.0%
-
Output signal:
-
Pulse / 4~20mA / RS485
-
Communication:
-
MODBUS-RTU
-
Protection Class:
-
IP 65
-
Material:
-
Aluminum Alloy
-
Pipe size:
-
DN15mm-6000m
-
Medium temperature:
-
30~90 /-30~160
-
installation method:
-
clamp
-
Display:
-
LCD Digital
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Ultrasonic meters, Ultrasonic flow meters, Digital
-
Warranty:
-
12 months
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
KCMC
-
Product Name:
-
Ultrasonic Flowmeter
-
Accuracy:
-
1.0%
-
Output signal:
-
Pulse / 4~20mA / RS485
-
Communication:
-
MODBUS-RTU
-
Protection Class:
-
IP 65
-
Material:
-
Aluminum Alloy
-
Pipe size:
-
DN15mm-6000m
-
Medium temperature:
-
30~90 /-30~160
-
installation method:
-
clamp
-
Display:
-
LCD Digital
Products Description
Working Principle .
Ultrasonic flow meter/heat meter uses the transmit time difference of the ultrasonic wave in the downstream and upstream medium sent and received by the ultrasonic transducer,to measure the velocity of the medium indirectly,and then calculate the flow rate through the velocity,it's an indirect measurement method.The product is composed of paired temperature sensor,ultrasonic flow meter and calculator.

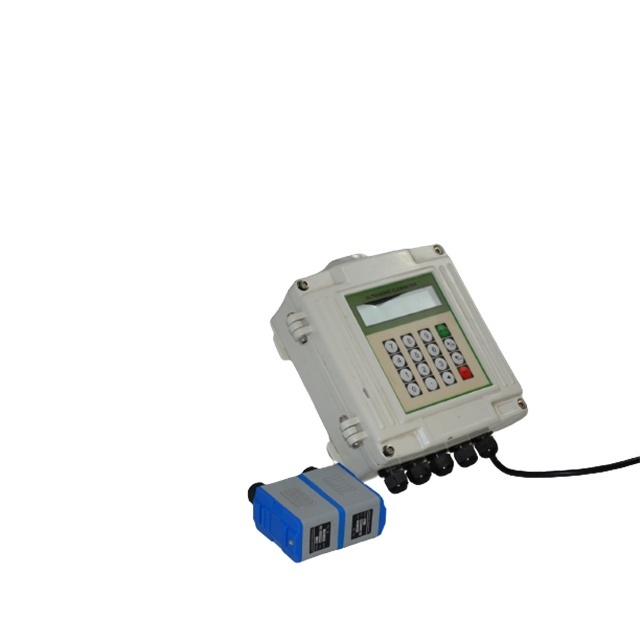

CX2000F/CX2000FR series fixed ultrasonic flow meter/heat meter is widely used in the industrial field of all kinds of liquid flow online measurement,the main machine of this product is divided into wall mounted,explosion-proof type,disc mounted type ;sensor is divided into :external clamp sensor,insertion type sensor and standard tube segment type sensor .
Clamp on
Insertion
Inline
|
Product name
|
|
fixed ultrasonic flow meter
|
|
|
|||
|
Temperature range of standard clamp on
|
|
-30 ~ 90℃/160℃(option)
|
|
|
|||
|
pressure
|
|
1.6Mpa
|
|
|
|||
|
measuring range
|
|
DN25-DN6000mm
|
|
|
|||
|
Output
|
|
4-20Ma
|
|
|
|||
|
conmunication
|
|
RS485
|
|
|
|||
|
installation method
|
|
clamp on/insertion/inline
|
|
|
|||
|
protection grade
|
|
IP65
|
|
|
|||
|
Type
|
Ultrasonic flowmeter
|
|
|
|
|
Sensor type
|
External sensor/Plug in sensor/Bracket sensor
|
|
|
|
|
Accuracy
|
土1%
|
|
|
|
|
Velocity range
|
0 ~ ±10 m / s, forward and backward measurement
|
|
|
|
|
Pipe diameter
|
DN15~DN6000
|
|
|
|
|
Fluid temperature
|
-30°C-160°C
|
|
|
|
|
Fluid type
|
Water, sea water, sewage, acid-base liquid, alcohol, beer, oil, etc. can conduct ultrasonic single uniform liquid
|
|
|
|
|
Pipe material
|
Steel, stainless steel, cast iron, copper, PVC, aluminum, glass fiber reinforced plastic and other dense pipes are allowed to have
lining |
|
|
|
|
Signal out
|
1 Channel 4 ~ - 20mA current output impedance 0 ~ 1K, accuracy 0.1%
|
|
|
|
|
|
One channel OCT pulse output pulse width 6 ~ 1000ms
|
|
|
|
|
|
One way relay output
|
|
|
|
|
Signal input
|
Three 4 ~ 20mA current input can be used as data collector to connect three wire PT100 platinum resistance to realize heat
measurement |
|
|
|
|
Communication interface
|
Isolate RS485 serial interface and support Modbus protocol
|
|
|
|
|
Data storage
|
SD card regularly stores the set parameters and measurement results (optional)
|
|
|
|
How to Choose installation points?
Proper installation point is a key for transducer installation. Following factors must be considered:
Full filled pipeline, shaking, steady flow, scaling, temperature, pressure, EMI, instrument well.
