Quick Details
-
Reverse Speed(km/h):
-
24
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SDLG
-
Weight:
-
12100 kg
-
Dimension(L*W*H):
-
8120*2410*3235mm
-
After-sales Service Provided:
-
Overseas service center available
-
Product name:
-
motor graders new 140g 140h 140k mini 140 grader for sale
-
Model:
-
G9138
-
Color:
-
Yellow
-
Brand:
-
SDLG
-
Engine model:
-
BF4M1013-15T3R/2
-
Engine type:
-
Four-stroke, Inline, water-cooled, direc injection
-
Emission standard:
-
GB 20891-2007 China II emission
-
Number of cylinders:
-
6
-
Application:
-
Building
Quick Details
-
Forward Speed(km/h):
-
34
-
Engine Brand:
-
Detuz
-
Working diameter:
-
1375mm
-
Reverse Speed(km/h):
-
24
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SDLG
-
Weight:
-
12100 kg
-
Dimension(L*W*H):
-
8120*2410*3235mm
-
After-sales Service Provided:
-
Overseas service center available
-
Product name:
-
motor graders new 140g 140h 140k mini 140 grader for sale
-
Model:
-
G9138
-
Color:
-
Yellow
-
Brand:
-
SDLG
-
Engine model:
-
BF4M1013-15T3R/2
-
Engine type:
-
Four-stroke, Inline, water-cooled, direc injection
-
Emission standard:
-
GB 20891-2007 China II emission
-
Number of cylinders:
-
6
-
Application:
-
Building
Product Description

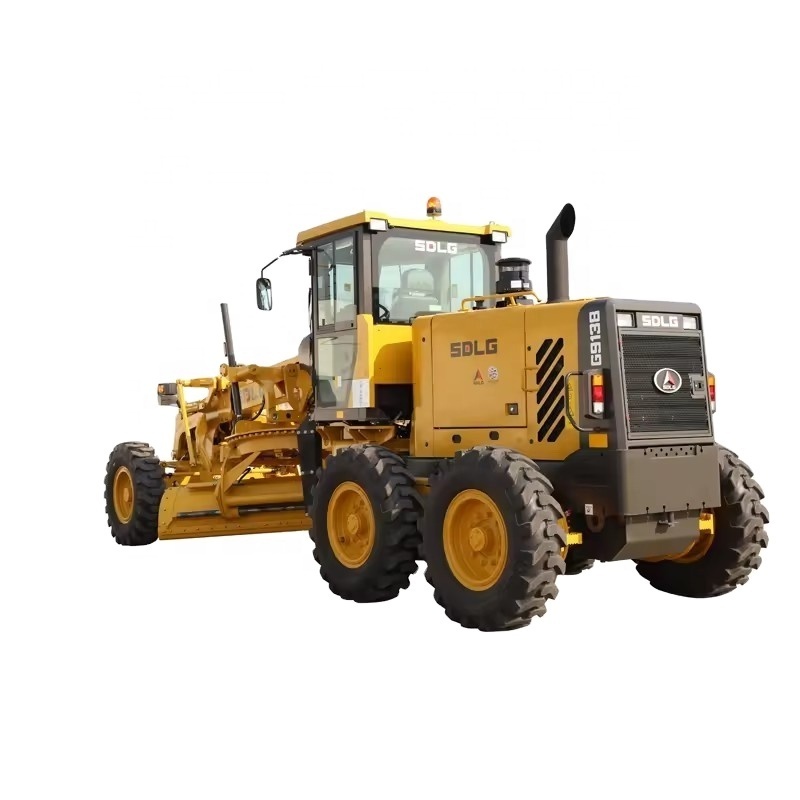

SDLG G9138 high precision road machinery small motor graders new 140g 140h 140k mini 140 grader for sale
Product Paramenters
|
|
|
|
|
|
||||||
|
L*W*H
|
8120*2410*3235mm
|
|
|
|
|
|||||
|
Min ground clearance of front axle
|
590mm
|
|
|
|
|
|||||
|
Ground clearance of rear axle
|
400mm
|
|
|
|
|
|||||
|
Wheelbase
|
6040mm
|
|
|
|
|
|||||
|
Wheel tread
|
2070mm
|
|
|
|
|
|||||
|
Balance box center distance
|
1538mm
|
|
|
|
|
|||||
|
Overall parameters
|
|
|
|
|
|
|||||
|
Overall working weight
|
12100kg
|
|
|
|
|
|||||
|
Max. inclination angle of front wheel
|
18°
|
|
|
|
|
|||||
|
Max. swing angle of front axle
|
16°
|
|
|
|
|
|||||
|
Max. steering angle of front wheel
|
50°
|
|
|
|
|
|||||
|
Steering angle of articulated frame
|
25°
|
|
|
|
|
|||||
|
Cutter diameter
|
1375mm
|
|
|
|
|
|||||
|
Cutter size
|
3048*580*16mm
|
|
|
|
|
|||||
|
Swing angle of blade
|
360°
|
|
|
|
|
|||||
|
Lift height of blade
|
380mm
|
|
|
|
|
|||||
|
Cutting depth of blade
|
575mm
|
|
|
|
|
|||||
|
Blade cutting angle
|
Front 47/rear 5°
|
|
|
|
|
|||||
|
Blade lateral distance
|
500/500mm
|
|
|
|
|
|||||
|
Max. tractive force
|
75.4kN
|
|
|
|
|
|||||
|
Engine
|
|
|
|
|
|
|||||
|
Model
|
BF4M1013-15T3R/2
|
|
|
|
|
|||||
|
Type
|
Four-stroke, Inline, water-cooled, direc injection
|
|
|
|
|
|||||
|
Rated Power@Revolution Speed
|
2100r/min
|
|
|
|
|
|||||
|
Displacement
|
4764mL
|
|
|
|
|
|||||
|
Cylinder bore × stroke
|
108*130mm
|
|
|
|
|
|||||
|
Emission standard
|
Tier3
|
|
|
|
|
|||||
|
Max. torque
|
680
|
|
|
|
|
|||||
|
Transmission system
|
|
|
|
|
|
|||||
|
Transmission type
|
Fixed shaft power shift
|
|
|
|
|
|||||
|
Torque converter
|
Single-stage single-phase three-element, integrated with gearbox
|
|
|
|
|
|||||
|
Gears
|
Forward 6 reverse 3
|
|
|
|
|
|||||
|
Hydraulic system
|
|
|
|
|
|
|||||
|
Type
|
Open-type system
|
|
|
|
|
|||||
|
System pressure
|
18MPa
|
|
|
|
|
|||||
|
Fill capacity
|
|
|
|
|
|
|||||
|
Fuel
|
210L
|
|
|
|
|
|||||
|
Hydraulic oil
|
80L
|
|
|
|
|
|||||
Related Production To Choose
Online Service
Company Introduction
SDLG founded in 1972,is a world-famous manufacturer and service provider of loaders,excavators,rollers, backhoes and related parts in more than 130 countries and regions.
Our Advantages
Packing&Shipping
FAQ
yes,we SDLG are an official leading manufacture in construction machinery in China.
2、What kind terms of payment can be accepted?
Normally we can work on T/T or L/C term.
3、What about the delivery time?
7-30 days after receving the deposit.
4、what about the warranty time?
12 months after shipment or 2000 working hours.
