Quick Details
-
Warranty:
-
2 years
-
Brand Name:
-
aikon
-
Model Number:
-
HCML, HCML
-
Place of Origin:
-
China
-
Horsepower:
-
0.37kw-4kw, 0.37kw-4kw
-
Outlet Size:
-
G1 1/2,G1 1/4
-
Power:
-
Standard
-
motor:
-
Induction motor
-
Material:
-
Iron/SS304/SS316L/SS904
-
Pump Type:
-

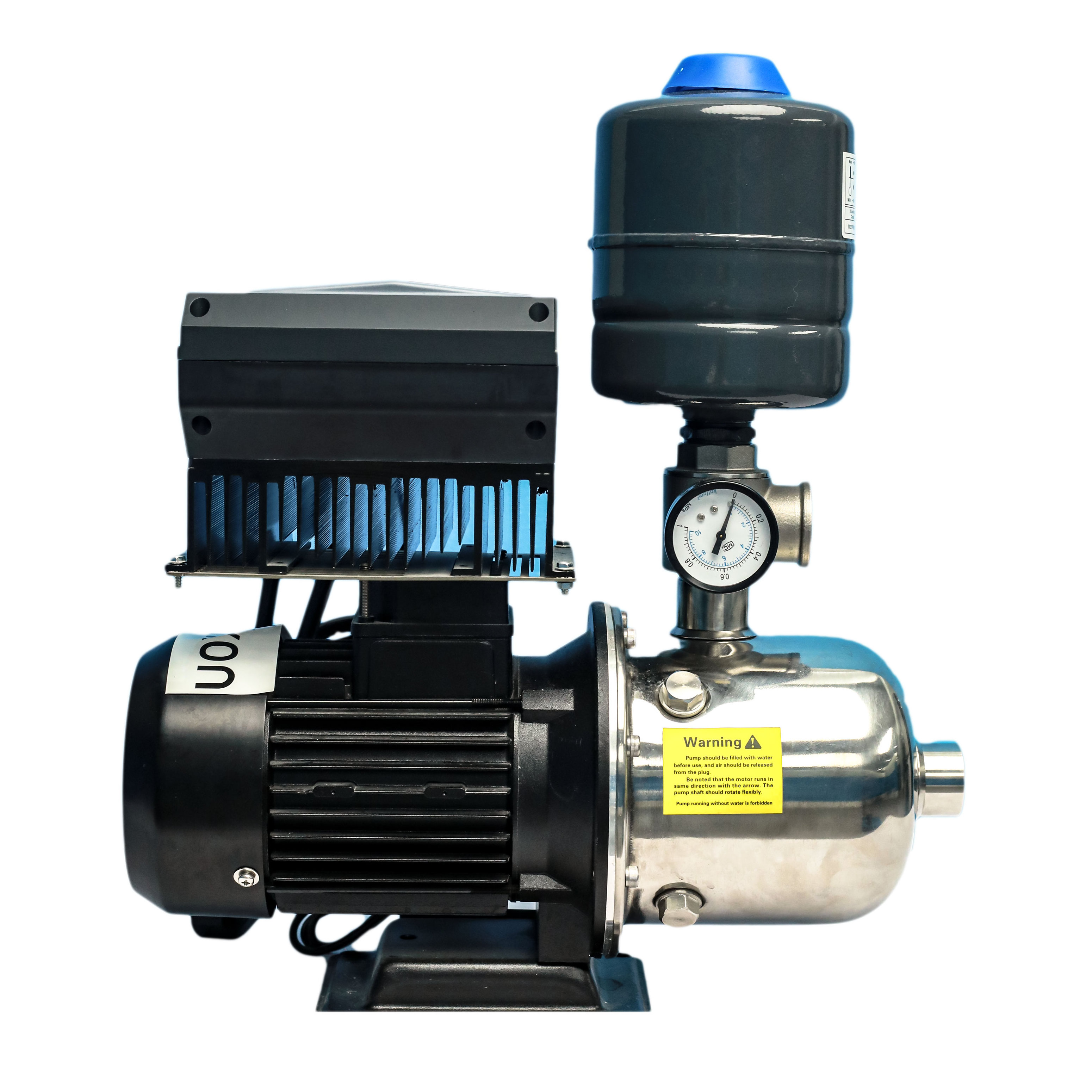

Horizontal constant pressure pump set
-
Frequency:
-
50/60HZ
-
Seal:
-
Cartridge mechnical seal
-
Connection:
-
Flange/Thread connection
-
Phase:
-
1/3 phase
Quick Details
-
Application:
-
Automotive Industry, Commercial Buildings, Developing World Water Solutions, Drinking water treatment, Family Homes, HVAC OEM, Irrigation and Agriculture, Machining, Mining industry, Water Treatment Solutions, Other
-
Pressure:
-
Low Pressure
-
Voltage:
-
220v/380V
-
Warranty:
-
2 years
-
Brand Name:
-
aikon
-
Model Number:
-
HCML, HCML
-
Place of Origin:
-
China
-
Horsepower:
-
0.37kw-4kw, 0.37kw-4kw
-
Outlet Size:
-
G1 1/2,G1 1/4
-
Power:
-
Standard
-
motor:
-
Induction motor
-
Material:
-
Iron/SS304/SS316L/SS904
-
Pump Type:
-
Horizontal constant pressure pump set
-
Frequency:
-
50/60HZ
-
Seal:
-
Cartridge mechnical seal
-
Connection:
-
Flange/Thread connection
-
Phase:
-
1/3 phase
Por favor, contactame para saber mas.
Products Description
Product Paramenters
|
Component
|
Construction
|
|
Pump body
|
Cast iron
|
|
Pump support
|
Cast iron
|
|
Structure
|
Single-stage pump
|
|
Voltage
|
AC 220V±15% /50Hz-60Hz
|
|
Motor housing
|
Aluminum
|
|
Impeller
|
AISI304
|
|
Motor shaft
|
Carbon steel, AISI304 SS if request
|
|
Mechanical seal
|
SIC/Graphite
|
|
Bearings
|
6201RZ/6201RZ (0.15HP&0.5HP) 6202RZ/6202RZ (0.75HP&1HP)
|
|
Pump
|
Single-phase,220V/50Hz, 60Hz if request
|
|
Inverter
|
Single-phase input,Three-phase output
|
