Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZYAG
-
Year:
-
2020
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
machine size
-
Weight (T):
-
7.5 T
-
Motor Power (kw):
-
7.5 kw
-
Warranty:
-
12 month
-
CNC or Not:
-
Normal
-
Power Source:
-
Hydraulic
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
YQ32 Hydraulic press machine 100 ton
-
Application:
-
metal pressing ,deep drawing ,stamping
-
Function:
-
deep drawing,stamping,punching
-
Material:
-
cast steel material
-
Keyword:
-
hydraulic press machine 100 ton
-
Certification:
-
ISO9001 CE
Quick Details
-
Machine Type:
-
Four-column Three-beam Hydraulic Press
-
Slide Stroke (mm):
-
500
-
Return Force (kN):
-
50 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZYAG
-
Year:
-
2020
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
machine size
-
Weight (T):
-
7.5 T
-
Motor Power (kw):
-
7.5 kw
-
Warranty:
-
12 month
-
CNC or Not:
-
Normal
-
Power Source:
-
Hydraulic
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
YQ32 Hydraulic press machine 100 ton
-
Application:
-
metal pressing ,deep drawing ,stamping
-
Function:
-
deep drawing,stamping,punching
-
Material:
-
cast steel material
-
Keyword:
-
hydraulic press machine 100 ton
-
Certification:
-
ISO9001 CE

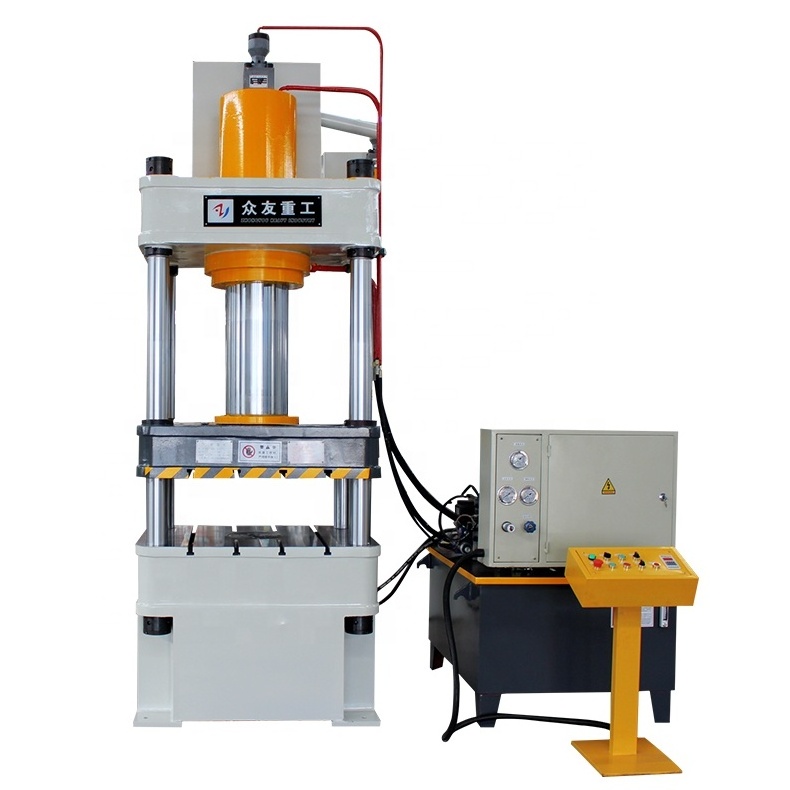

100 ton 150 ton 4 column hydraulic press
Applicable fields:
This series is a general-purpose hydraulic press , also known as a universal hydraulic press. hydraulic press machine 100 ton is suitable for the stretching, bending, flanging, cold extrusion, punching and other processes of plastic materials. It is also suitable for the correction, press-fit of powder products, press molding of abrasive products, and press forming of plastic products and insulating materials.
The main function:
Suitable for stretching and punching of metal materials (optional punching buffer) bending, flanging, cold extrusion, etc. It is also suitable for pressing and pressing of pressed and pressed powder products and abrasive products and plastic products. Press forming of insulating materials.
|
MODEL |
YQ32-100T |
YQ32-200T |
YQ32-315T |
|
Nominal force |
1000 |
2000 |
3150 |
|
Liquid working pressure(MPa) |
25 |
25 |
25 |
|
Master cylinder stroke(mm) |
600 |
500 |
500 |
|
Max. opening height(mm) |
800 |
1200 |
1300 |
|
Working table size(mm*mm) |
700*750 |
800*800 |
1200*1200 |
|
Descent speed(mm/s) |
100 |
246 |
220 |
|
Working speed(mm/s) |
5~15 |
10~20 |
10~20 |
|
Return speed(mm/s) |
90 |
170 |
140 |
|
Motorpower(KW) |
7.5 |
7.5 |
7.5 |
main feature:
1. The hydraulic control adopts the cartridge valve integrated system, which has reliable action, long service life and small hydraulic impact, which reduces the link pipeline and leakage point.
2. Optimized structural design by computer, three-beam four-column structure, simple, economical and practical.
3. Independent electrical control system, reliable operation, intuitive operation and convenient maintenance.
4, using button centralized control, with adjustment, manual and semi-automatic three operating modes.
5. Through the operation panel selection, it can realize two kinds of operation processes: fixed pressure and constant pressure, and has functions such as pressure holding delay.
6. The working pressure of the slider, the rapid development of no-load, and the formation range of slow-speed work can be adjusted according to the needs of the work. The work is reliable, the action is intuitive, and the maintenance is convenient.
Product Application
1) Deep drawing and molding for auto parts, household appliance parts and kitchenware, etc.
2) Especially suitable for stretching and molding of special-shaped products.
3) Stamping, deep drawing, bending, forming and other pressing process for metal and nonmetal parts
Packaging Details
Internal plastic moisture-proof anti-rust packaging,
External wooden packaging,
Exclusive container transport.
Delivery Time for High Speed Four Column Hydraulic Press Machine for Oil Filter:
Shipped in 30 days after payment
The machine has passed the domestic ISO quality management system certification, EU, CE , SGS and other certifications, and has a number of product innovation patents and honorary certificates.
