Laboratory Battery Electromagnetic Vibration Analyzer Testing Machine For Lithium Battery Safety Test

Laboratory Battery Electromagnetic Vibration Analyzer Testing Machine For Lithium Battery Safety Test

FOB Reference Price: Get Latest Price

≥1 Sets

US $30000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: RSE

Model Number:: YK-C010

Maximum sinusoidal excitation force:: 600Kg.f peak

Maximum random excitation force:: 600Kg.f peak

Maximum impact excitation force:: 1200Kg.f peak

Frequency range:: 2~3000 Hz

Quick Details

Warranty:: 1 Year

Power:: Electronic

Place of Origin:: Guangdong, China

Brand Name:: RSE

Model Number:: YK-C010

Maximum sinusoidal excitation force:: 600Kg.f peak

Maximum random excitation force:: 600Kg.f peak

Maximum impact excitation force:: 1200Kg.f peak

Frequency range:: 2~3000 Hz

PRODUCT DESCRIPTION

Product application :

Electromagnetic vibration testing machines simulate vibration environments under laboratory conditions to test the impact strength and reliability in various vibration testing applications. In the laboratory, the vibration testing machine system can simulate and reproduce modes such as sine, random, resonant search and dwell, typical impact, and road simulation. Quality assurance and new product development are essential for products

The EV series electromagnetic vibration testing machine is specially designed to meet long-term operation, and the installation of a vibration resistant base can achieve vertical and horizontal vibration. The standard platform is equipped with an efficient airbag vibration isolation device, which minimizes the propagation of vibration to the building and in most cases, does not require additional foundation.

A complete vibration testing system is composed of a vibration table, power amplifier, and vibration measurement control system. It provides technical support for users to establish product quality inspection in accordance with relevant national and international standards (such as MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS, etc.). The excitation force range is from 3-400KN, the frequency range is 1-4000Hz, and the amplitude (displacement) range is 38-100mmp-p. Special conditions can be customized.

Equipment principle:

SPECIFICATION

VG600-50 Electromagnetic Vibration Generator Parameters
Maximum sinusoidal excitation force	600Kg.f peak
Maximum random excitation force	600Kg.f peak
Maximum impact excitation force	1200Kg.f peak
Fequency range	2～3000 Hz
Maximum displacement	51 mm p-p
Maximum speed	2m/s
Maximum acceleration	100G(980 m/s2)
First order resonant frequency	3200 Hz±5%
Payload	200 kg
Isolation frequency	2.5 Hz
Dynamic coil diameter	Ф200 mm
Dynamic coil weight	6kg
Countertop screw	17×M10
Magnetic leakage	＜10gauss
Allowable eccentric moment	300N.m
Equipment weight	Approximately 700kg (excluding horizontal slide)
Equipment size	815mm x 680mm x 840mm (excluding expansion table)
SA-6K Digital Switching Power Amplifier
Output power	6KVA
output voltage	100V
Output current	60A
Power amplifier efficiency	≥90%
Switching frequency	116KHz
Signal-to-noise ratio	≥65dB
noise	≤70dB
Servo protection system
Function	Temperature, wind pressure, displacement, overvoltage, overcurrent, input undervoltage, external fault, control power supply, logic fault, input mismatch
Digital Vibration Controller VCSusb-2
Hardware configuration:	2 input channels, 1 output channel
software	Chinese/English operation, capable of performing time-domain and frequency-domain analysis, signal source, sine sweep analysis, etc. It can automatically generate WORD test reports, display, store, set test parameters, and analyze signals and data.
Acceleration sensor LAB	Frequency range: 1-12000Hz Sensitivity: 50mv/g Temperature range: -40-250 ℃
VT660 Vertical Expansion Table Top
material quality	Aluminum magnesium alloy, surface hard anodized treatment
size	600mm×600mm
Usage frequency	Sinusoidal 700 Hz; Random: 2000Hz
weight	30KG
H0606 Horizontal Oil Film Sliding Table
material quality	Aluminum alloy, surface hard anodized treatment
size	600mm×600mm×30mm
Usage frequency	Sinusoidal 1500 Hz; Random: 2000Hz
weight	35KG (excluding connector)
BL-600 cooling fan (including muffler)
Fan power	3KW
Volume of flow	15m3/Min
Electrical requirements
Power supply	AC3 380V/50Hz，18KVA
compressed air	0.6Mpa
Grounding resistance	≤4Ω

Equipment performance introduction:

Vibration table body VG600-50

1. Dynamic coil The vibration table is equipped with cast and manually processed dynamic coils, a photoelectric pneumatic load support system, and dual bearing axial guidance. Dual bearing guidance is a unique feature that helps reduce dynamic axial crossing and rotation during vibration testing, and has superior durability. 2 Excitation coils Adopting a dual magnetic circuit structure, low magnetic leakage, and uniform magnetic field 3. Platform surface Adopting advanced phosphating treatment and automotive paint baking technology, it has a long-term anti wear and anti rust effect.

4. Refrigeration of the platform: Adopting low-noise fans, improving the intake structure of the platform, using honeycomb air ducts for the excitation coil, and double-layer split air ducts for the middle magnetic ring, a new type of air duct design is adopted to enhance the cooling effect.

SA Digital Switching Power Amplifier The SA series digital switching power amplifier adopts reliable performance MOSFET or IGBT technology, a. Has high stability and reliability b. Complies with EU CE standards c. Adopting sine frequency doubling pulse width modulation technology, the power amplifier has a high signal-to-noise ratio. d. Adopting the working principle of switch mode power supply, the conversion efficiency is high. e. Adopting electronic automatic current sharing technology f. Good safety performance.

Servo protection system

Complete protection functions, including grid overvoltage, undervoltage, phase loss, logic failure, power module direct connection, overheating, output overcurrent, output overvoltage, drive power supply, platform over displacement, platform temperature, external interlocking, etc

Vertical Expansion Platform

Expansion platforms are usually used as platforms for larger installation specimens, which can be square, circular, or user-defined. In order to reduce the dynamic characteristics of extension platforms, all extension platforms must be modeled and analyzed for their modal frequencies. These extension platforms are generally cast from magnesium alloy and attached with damping materials

Optoelectronic automatic alignment system

Automatically adjust the position of the dynamic coil to maintain a balanced state. The automatic centering system ensures that the dynamic coil is always in the center position during loading and unloading processes.

Water smoothing platform

The horizontal sliding platform design has a high overturning moment and lateral limitation. This design concept is combined with a standard horizontal sliding table device, which has a high dynamic torque limit while maintaining the guiding oil film damping characteristics. The horizontal sliding platform is composed of a skateboard, a connecting head, a natural granite flat plate, a horizontal sliding platform base, and an independent oil source.

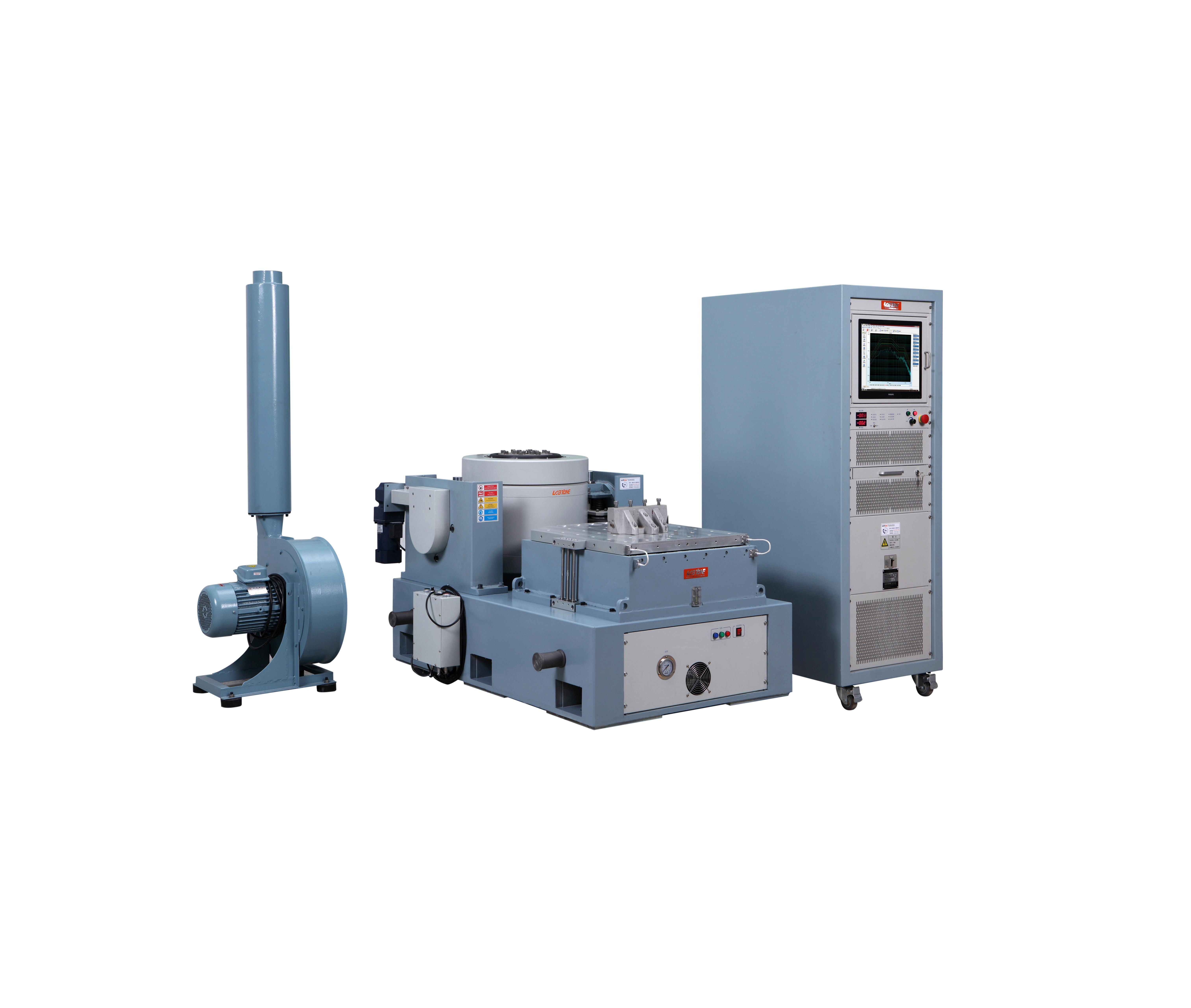

Physical diagram of the overall laboratory for battery safety performance testing:
