Quick Details
-
Use:
-
Farm
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
ANON
-
Product name:
-
Hydraulic Offset Heavy Duty Disc Harrow
-
Color:
-
Customised
-
Application:
-
Farm Work
-
Linkage:
-
Tractor Traction
-
Working depth:
-
180-200mm
-
Working width:
-
1.8-5.3m
-
Distance between discs:
-
230mm
-
Disc diameter:
-
660mm
-
Matching power:
-
70-200hp
-
Quantity of disc:
-
16-48 disc
Quick Details
-
Weight (KG):
-
1100
-
Marketing Type:
-
New Product 2022
-
Type:
-
Farm Cultivator
-
Use:
-
Farm
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
ANON
-
Product name:
-
Hydraulic Offset Heavy Duty Disc Harrow
-
Color:
-
Customised
-
Application:
-
Farm Work
-
Linkage:
-
Tractor Traction
-
Working depth:
-
180-200mm
-
Working width:
-
1.8-5.3m
-
Distance between discs:
-
230mm
-
Disc diameter:
-
660mm
-
Matching power:
-
70-200hp
-
Quantity of disc:
-
16-48 disc
Product Description

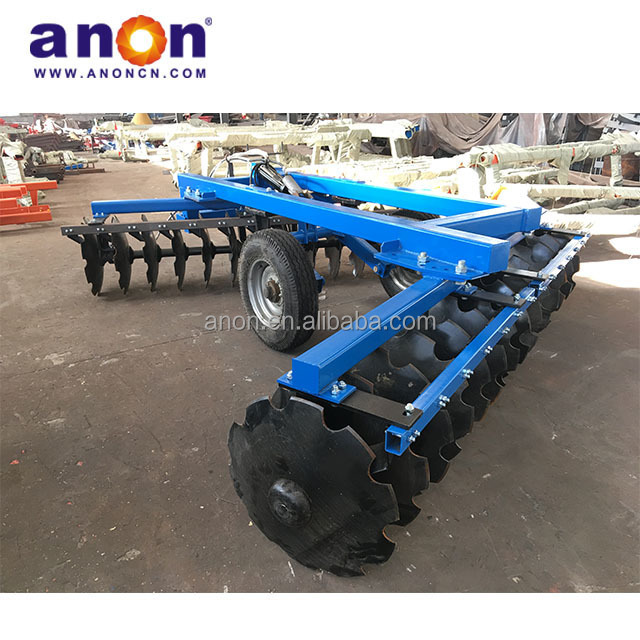

ANON Farming Machinery 24 Disc 36 Disc Trailed Hydraulic Offset Heavy Duty Disc Harrow
Introduction:
The 1BZ series of Hydraulic offset heavy disc harrow is well suitable for heavy clay soil, waste land and wet field as well, mainly suitable for stub cleaning before farming, it can break the hard soil and return the picked strain to the soil, and also crash the soil after tilla and level the land. The heavy duty disc harrow can cultivate the soil install of grow
Specification
ANON Farming Machinery 24 Disc 36 Disc Trailed Hydraulic Offset Heavy Duty Disc Harrow
Advantages:
1.This tracked type heavy duty hydraulic disc harrow has different models for matching with four wheel tractors from 70hp to 200hp
2. Own hydraulic system to lift and down the transport wheel freely
3.High quality of functional oil cyclinder
4. Inner house bearing assembly for the harrow longer service life
ANON Farming Machinery 24 Disc 36 Disc Trailed Hydraulic Offset Heavy Duty Disc Harrow
|
Model
|
unit
|
IBZ-1.8
|
1BZ-2.2
|
1BZ-2.5
|
1BZ-3.0
|
1BZ-3.4
|
1BZ-4.0
|
1BZ-5.3
|
|||||||
|
Working width
|
m
|
1.8
|
2.2
|
2.5
|
3.0
|
3.4
|
4.0
|
5.3
|
|||||||
|
Working depth
|
mm
|
180~200
|
180~200
|
180~200
|
180~200
|
180~200
|
180~200
|
200
|
|||||||
|
Distance between discs
|
mm
|
230
|
230
|
230
|
230
|
230
|
230
|
230
|
|||||||
|
Q’ty of disc
|
pcs
|
16
|
20
|
24
|
28
|
32
|
36
|
48
|
|||||||
|
Disc diameter
|
mm
|
660
|
660
|
660
|
660
|
660
|
660
|
660
|
|||||||
|
Overall weight
|
kg
|
1100
|
1250
|
1350
|
1450
|
1550
|
1900
|
2700
|
|||||||
|
Matched power
|
hp
|
≥70
|
≥80
|
80~100
|
100~120
|
120~150
|
140~160
|
180
|
|||||||
|
Linkage
|
Trailed
|
|
|
|
|
|
|
|
|||||||
