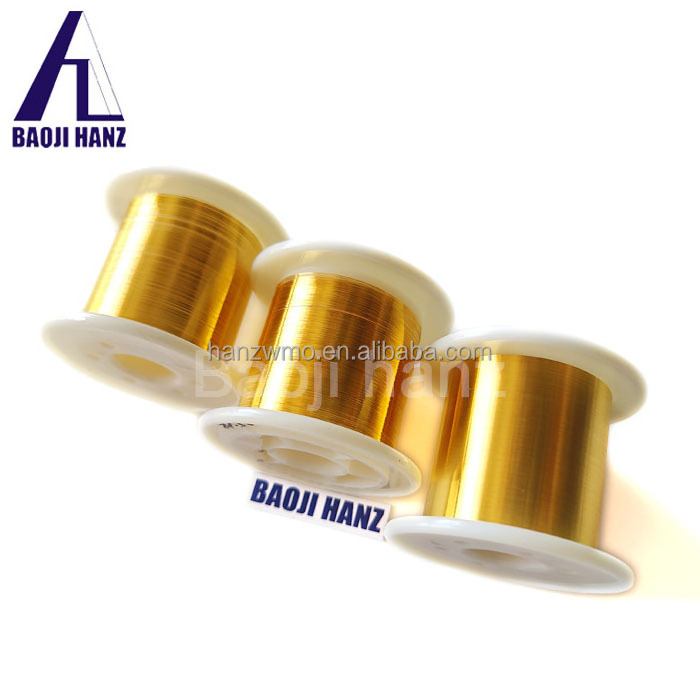

Gold plated pure micron tungsten filament wire

Gold plated pure micron tungsten filament wire

FOB Reference Price: Get Latest Price

≥1000 Meters

US $5

≥10000 Meters

US $3.2

≥30000 Meters

US $3.15

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Wire Gauge:: 0.012mm min

Purity:: 99.95%Min

Surface:: black, Electrolytic Polishing

Melting point:: 3410 Degrees Celsius

Application:: Electrical Light Sources Parts

Feature:: High Temperature Resistance

Wire diameter:: Customized Wire Diameter

Type:: High Purity Tungsten Wire

Certification:: ISO9001

Density:: 19.3g/cm3

MOQ:: 1KG

Quick Details

Place of Origin:: Shaanxi, China

Brand Name:: Baoji Hanz

Model Number:: tungsten wire

Wire Gauge:: 0.012mm min

Purity:: 99.95%Min

Surface:: black, Electrolytic Polishing

Melting point:: 3410 Degrees Celsius

Application:: Electrical Light Sources Parts

Feature:: High Temperature Resistance

Wire diameter:: Customized Wire Diameter

Type:: High Purity Tungsten Wire

Certification:: ISO9001

Density:: 19.3g/cm3

MOQ:: 1KG

Product Description

Baoji Hanz has been gold plating tungsten and molybdenum wire for nearly 10 years. Gold plated wire is used in a number of applications including electronics, medical and aerospace. Baoji Hanz has the capability to plate base wire – tungsten and molybdenum – ranging in size from 0.025 to 0.625 millimeters. Plating percentages can range from 1% to 25% with a standard tolerance of +/- 1%. Plating tungsten and molybdenum wire enhances properties and performance of the base metal by improving electrical conductivity and wettability for soldering and providing resistance to oxidation.
Gold Plated Tungsten Wire:
The density of gold (19.3 g/cm3) and tungsten (19.25 g/cm3) are very similar meaning plating tungsten will not significantly change the density versus unplated wire. Gold also has a much lower melting point than tungsten so the temperature of your application should be considered. Gold plated tungsten wire is frequently used in medical, electronics and printing applications.

Specification

item	Gold plated pure micron tungsten filament wire
Place of Origin	Shaanxi, China
Brand Name	Baoji Hanz
Model Number	tungsten wire
Wire Gauge	0.05mm min
Purity	99.95%Min
Surface	black, Electrolytic Polishing
Melting point	3410 Degrees Celsius
Application	Electrical Light Sources Parts
Feature	High Temperature Resistance
Wire diameter	Customized Wire Diameter
Type	High Purity Tungsten Wire
Certification	ISO9001
Density	19.3g/cm3
MOQ	1KG

In a surface sense, gold plated tungsten wire has much more beautiful and brighter surface than black tungsten wires, cleaned tungsten wires and sprayed tungsten wires. In a deeper sense, gold plated tungsten wire has higher corrosion resistance than tungsten wires without gold plated.

Gold plated tungsten wire properties (Theoretical)
Compound Formula	W
Molecular Weight	183.84
Appearance	Metallic wire
Melting Point	3410 °C
Boiling Point	5660 °C
Density	19.3 g/cm3 (25 °C)
Solubility in H2O	N/A
Electrical Resistivity	4.9 μΩ-cm, (20 °C)
Exact Mass	183.951 g/mol
Monoisotopic Mass	183.951 g/mol

Definition of gold plated tungsten wire

Gold plated tungsten wire means tungsten wires coated with a layer of gold. Gold plated tungsten rhenium wire is tungsten rhenium

wire with gold plated. Tungsten wires and tungsten rhenium wire with gold plated have similar appearance, but different material
content. And the properties of tungsten wire and tungsten rhenium wire are differing from each other.

Properties of gold plated tungsten wire

Gold plated tungsten wire has a bright and gold shining surface condition. Tungsten wire is high temperature resistance, corrosion resistance, high melting point, low thermal expansion, which is suitable for using as tungsten filament, and tungsten heater.

Tungsten wire with gold plated increases the property of corrosion resistance.

Standard thickness of gold coat of gold plated tungsten wire

Baoji Hanz can produce gold plated tungsten wire. The most popular specification of gold plated tungsten wire is Dia.0.6mm tungsten wires with 0.6μm gold plated. And tungsten wires can also be plated with 25μm.

Baoji Hanz can manufacture gold plated
tungsten wire according to customer's requirements.

Gold tungsten wire

If there is any interest in tungsten wire, please feel free to contact us.

Packing & Delivery

1. Wrapped nitnol wire with waterproof paper 2. Surrounded nitinol wire with foam and then put nitnol wire into plywood box or carton box 3. Sealed nitnol wire and fixed it
